Description

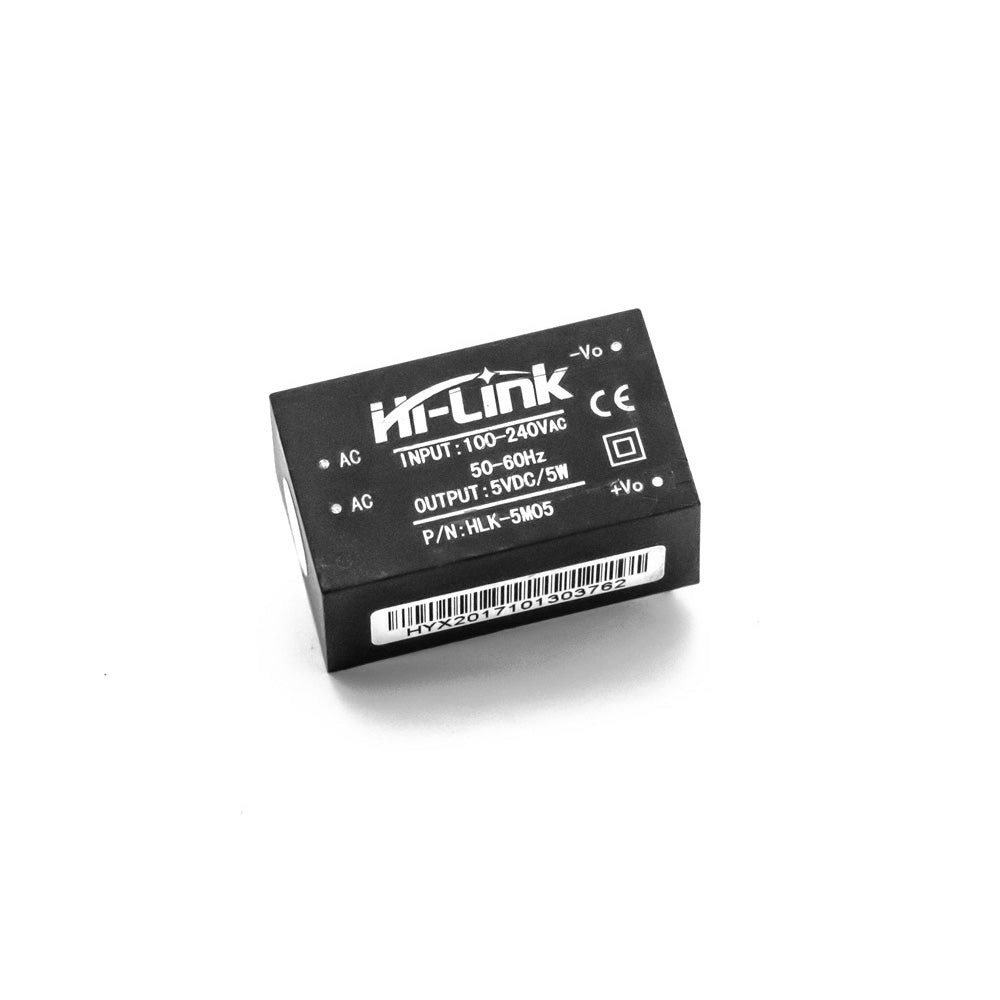

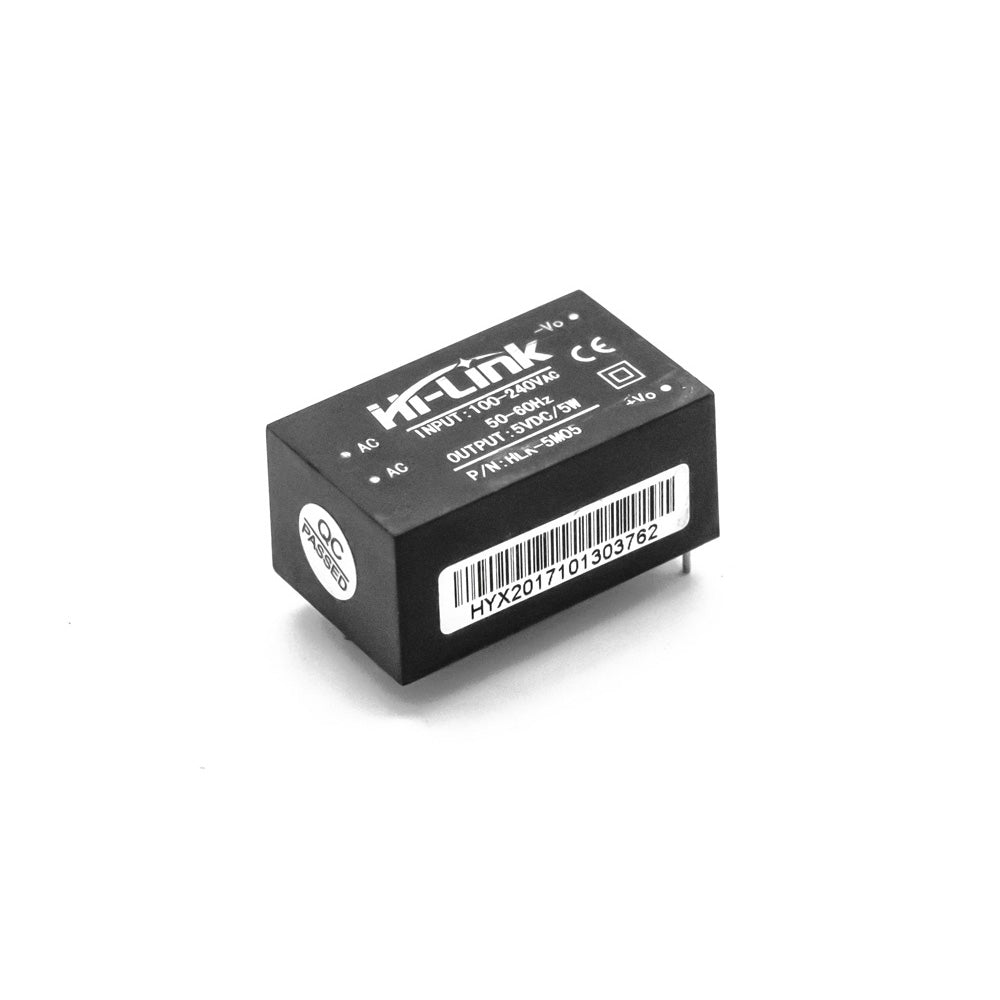

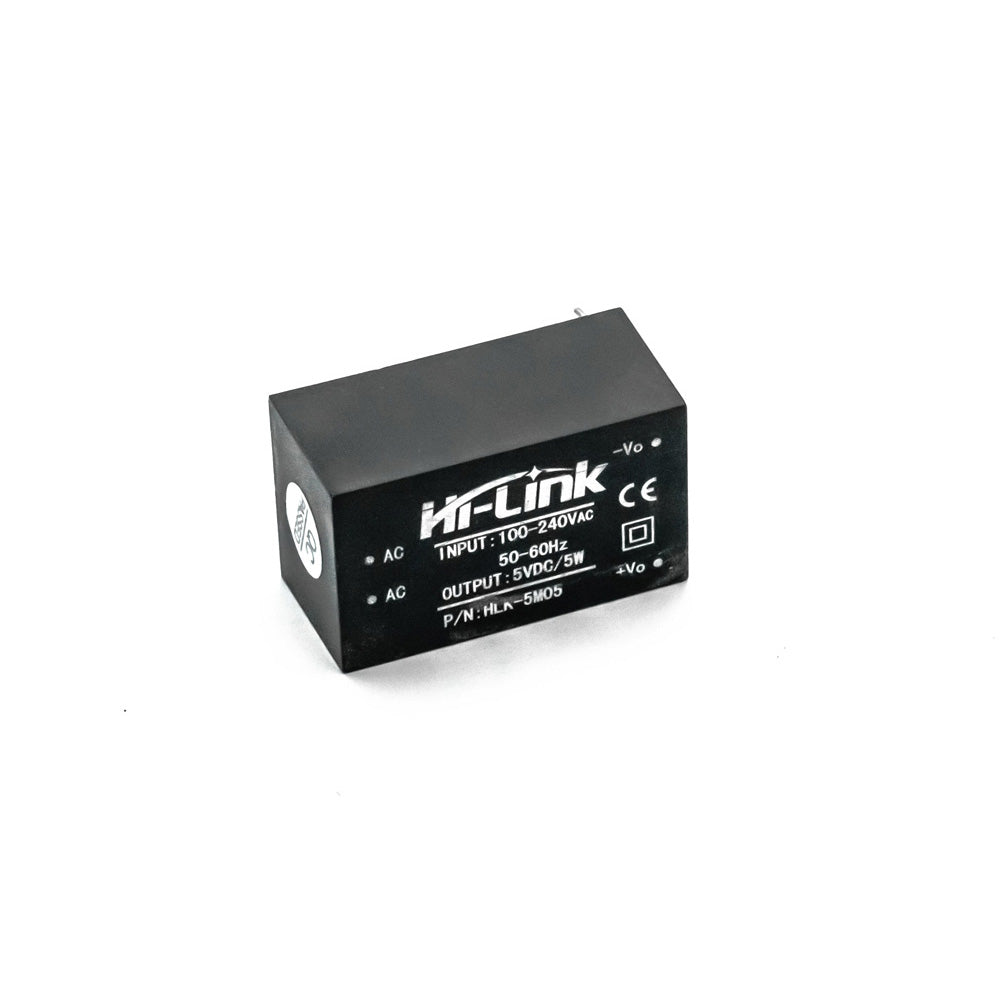

It's a Hi-Link-5M05 5V 5W AC-DC Power Converter. This is a PCB mountable power supply. It has low power consumption, environmental protection, no-load loss, high efficiency, high power density. It has output overload and short circuit protection.
Features
- This Power Supply is PCB mountable
- Low power consumption, environmental protection, no-load loss <0.1W
- High efficiency, high power density
- Output overload and short circuit protection
Specification
| Brand | Hi-Link |
| Model number | HLK-5M05 |
| Input Voltage | 100V-240V AC |
| Output | 5V, 1A |
| Power | 5W |
| Input Low Voltage Efficiency | 69% @ 110V AC & Full Load output |
| Input High Voltage Efficiency | 70% @ 220V AC & Full Load output |
| Maximum input current |
0.2A |
| Maximum Input Current Surge | 10A |
| Voltage Regulation | ±0.2 % |
| Load Regulation | ±0.5 % |
| Dimension (LxWxH) | 38.3x22.8x18 (mm) |
| Country of Origin | China |
