Description

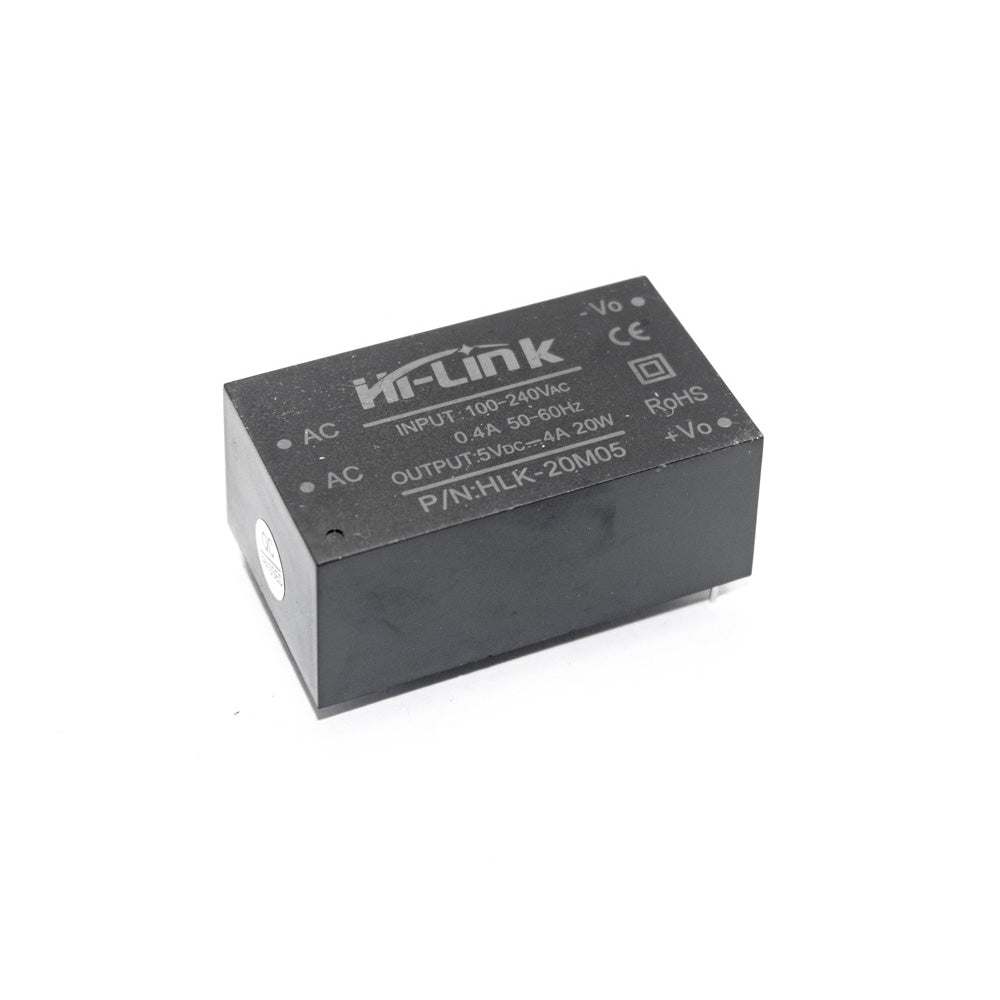

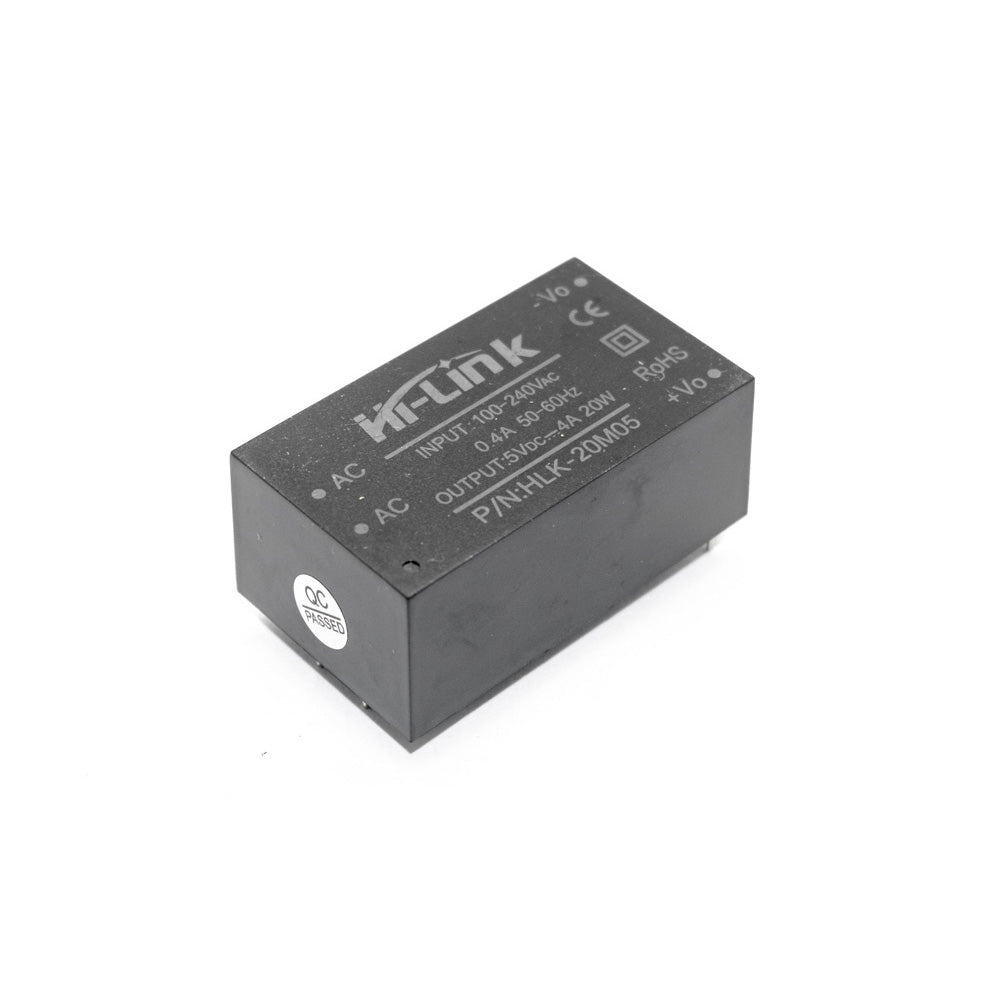

The HLK-20M05 5V/20W Switch Power Supply Module is a PCB mounted isolated switching step-down power supply module with a plastic enclosure. It has a power rating of 20 Watt and can supply 5V DC from 100V AC to 240V AC. This makes it ideal for small circuits that require a 5 volts power supply. These modules have a number of advantages, including low-temperature increase, low power, high efficiency, high reliability, high-security isolation, and so on
Features
- It is PCB mountable
- Low power consumption, environmental protection, no-load loss <0.1W
- High efficiency, high power density
- Output overload and short circuit protection
- Module | Power Supply Module | AC-DC Converter | DIY Projects | Home Automation.
Specification
| Brand | Hi-Link |
| Model number | HLK-20M05 |
| Input Voltage | 100V-240V AC |
| Output | 5V, 4A |
| Power | 20W |
| Voltage Regulation | ±0.2 % |
| Load Regulation | ±0.5 % |
| Dimension (LxWxH) | 57x33x23.6mm |
| Country of Origin | China |
