Description

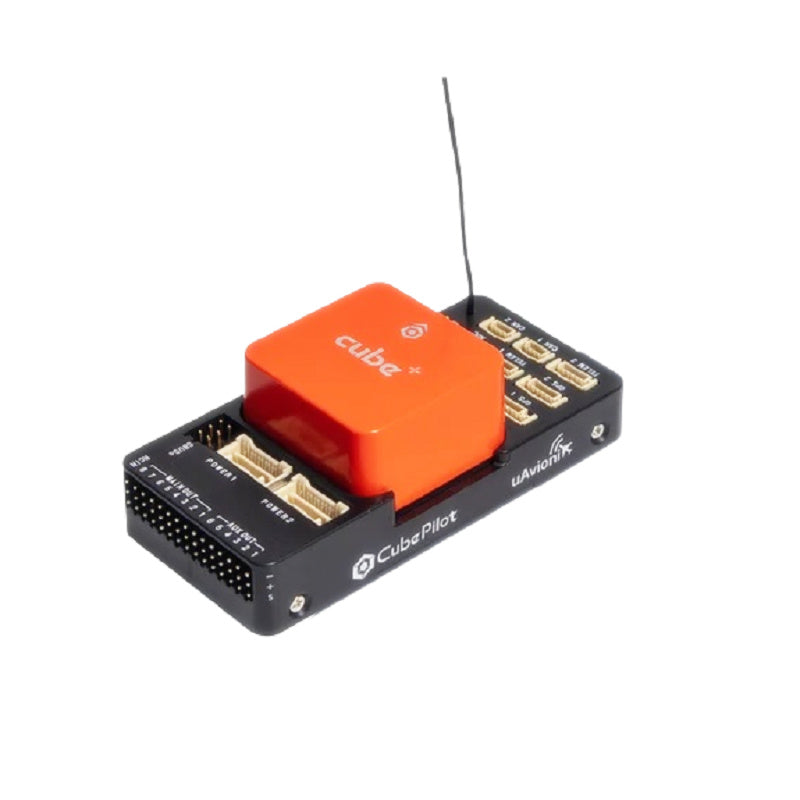

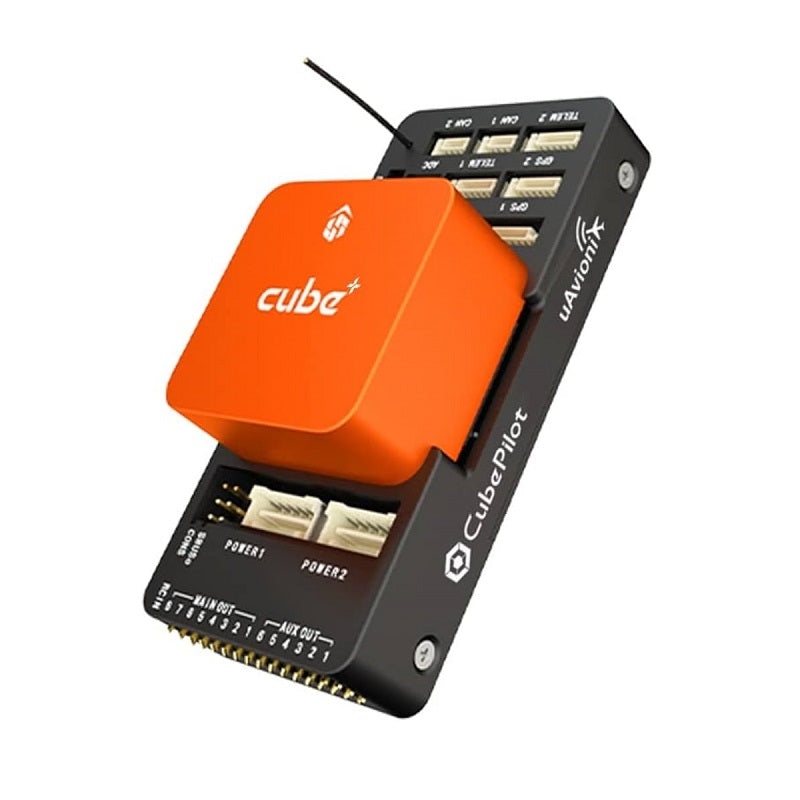

The Hex Pixhawk Cube+ Flight Controller Autopilot is a robust, advanced autopilot system designed for drones and unmanned vehicles. Featuring powerful processing capabilities, multiple IMUs, and extensive connectivity options, it ensures precise control and stability. Its modular design allows for easy integration and customization in various applications.
Features:
- Model: HX4-06222
- Input voltage: 3.3 V / 5 V
- Sensors: Accelerometer, Gyroscope, Compass, Barometric Pressure Sensor
- Cube Orange targets education, amateur drones lovers, and professionals with cost-effective flight control hardware
Specifications:
| Supported RC signals |
PPM/SBUS/DSM |
|---|---|
| Power redundancy |
Triple redundancy |
| Sensors |
Triple IMU System |
| Sensors details |
IMUl(lsolated) ICM42688 |
| Supported firmware Ardupilot |
PX4, and Hionos 00-178C |
| Supported vehicle type |
Fixed-wing plane Multicopters Helicopter VTOL-plane |
| Weight (gm) |
73 |
| Chassis Material |
CNCAluminum Alloy(cube) +ABS Molding(Carrier Board) |
| Cube Size (mm) |
38.4 x 38.4 x 22 |
| Carrier Board Size (mm) |
94 x 44.3 x 7.3 |
| Operating Temperature |
-10+55° IMU with temperature control |
| PWM I/Os |
14 |
| GPS/Serial interfaces |
4 |
| Debug interface |
2 |
| I2C interface |
2 |
| CAN FD interface |
2 |
