Description

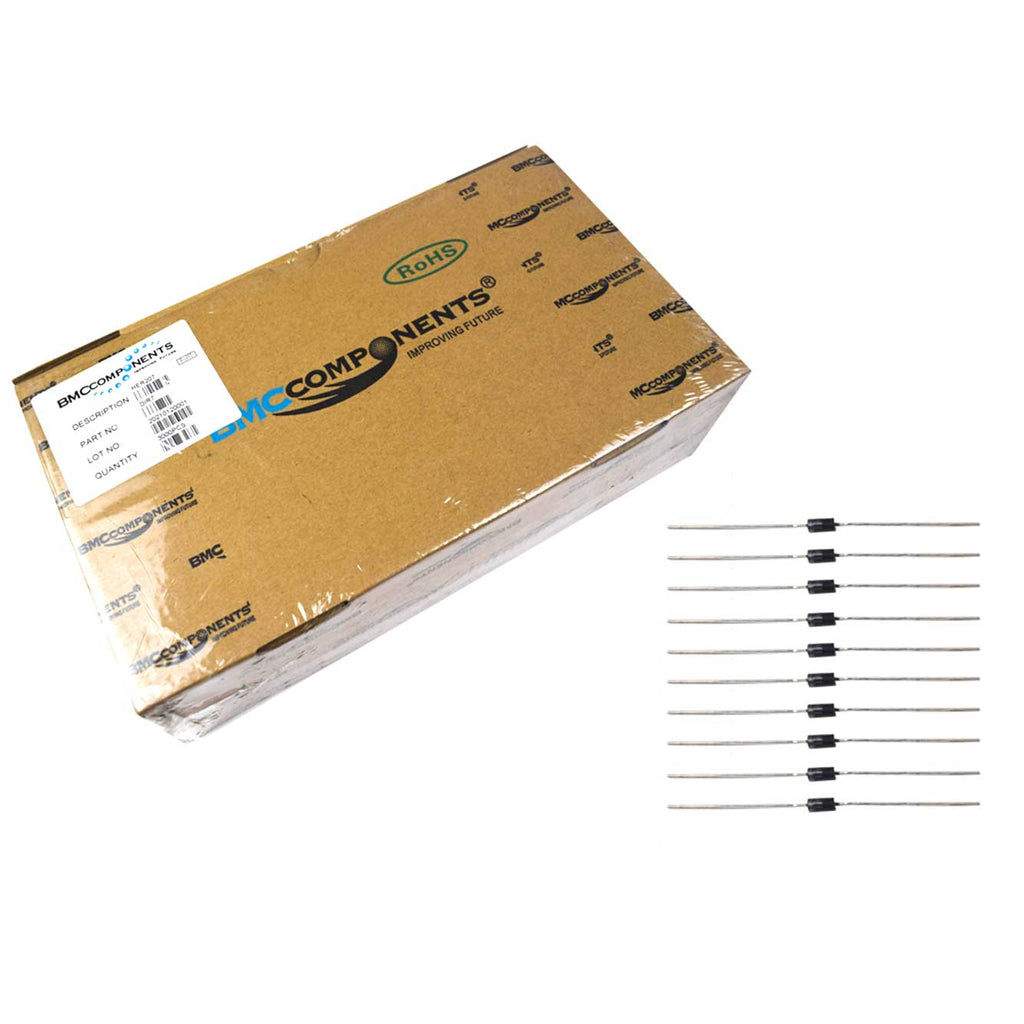

The HER207 is a 2.0 Ampere High Efficient Rectifiers Diode in a DO-15 Case Package. The HER207 diode has two terminals: a cathode (-) and an anode (+). This diode have high current capability, high surge current capability. This type of diode generally use in low voltage, high frequency inventor and polarity protection application.
Features
- High efficiency, Low VF
- High current capability
- High reliability
- High surge current capability
- For use in low voltage, high-frequency inventor, free wheeling, and polarity protection application
Specifications
| Model | HER207 |
| Make | BMC Components |
| Type | Rectifier Diode |
| Max. Average Forward Rectified Current | 2.0 Amp |
| Max. Recurrent Peak Reverse Voltage | 800V |
| Max. DC Blocking Voltage | 800V |
| Forward Surge Current | 60A |
| Case | DO-15 |
| Mounting Type | Through Hole |
| No of Pin | 02 |
| Operating Temperature Range | -65 to +150 °C |
| Quantity | 3000 |
| Country of Origin | China |
