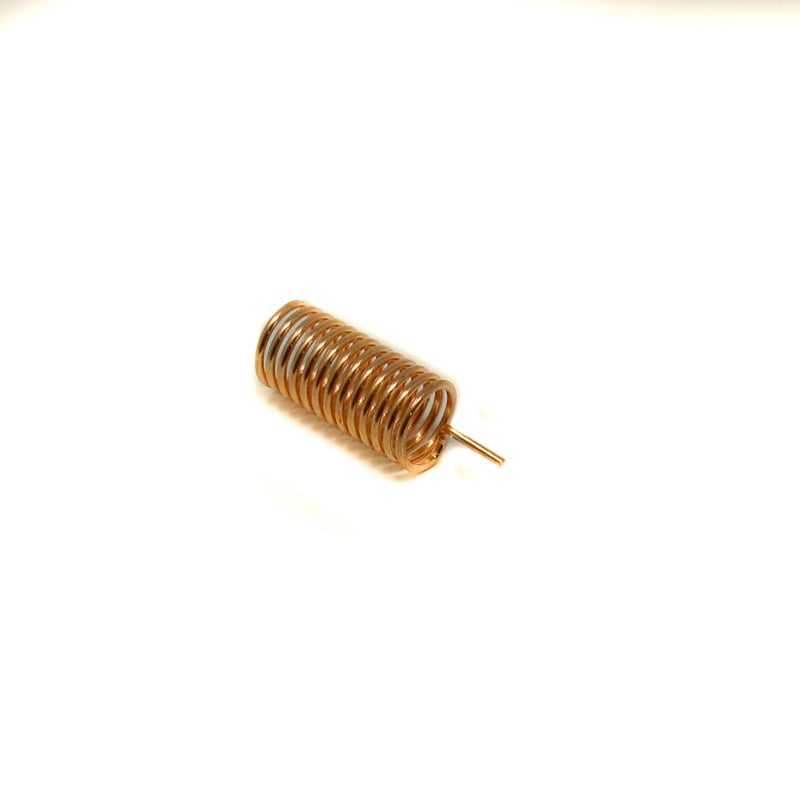

Description
- Frequency (MHz) :433 MHz
- Gain:Approx 0.5 dBi (depends on PCB ground plane)
- Impedance (Ω): 50
- Connector Type: Direct Solder
- VSWR :< 1.5
| Model |
LWC-433-HELIX-15 |
|---|---|
| Frequency Range |
433 MHz |
| Gain |
Approx 0.5 dBi (depends on PCB ground plane) |
| Impedance (Ω) |
50 |
| VSWR |
< 1.5 |
| Polarization |
Vertical |
| Power Handling (W) |
10 |
| HPBW |
H: 3600 ; V: 30 |
| Connector |
Direct Solder |
| Housing |
PB (Passivated) |
| Operating Temperature (°C): |
-30 to 60 |
| Humidity |
5 – 95% |
| Length (mm): |
23 |
| Diameter (mm): |
9 |
| Weight (g): |
1.2 |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 4 × 3 × 1 cm |
