Description

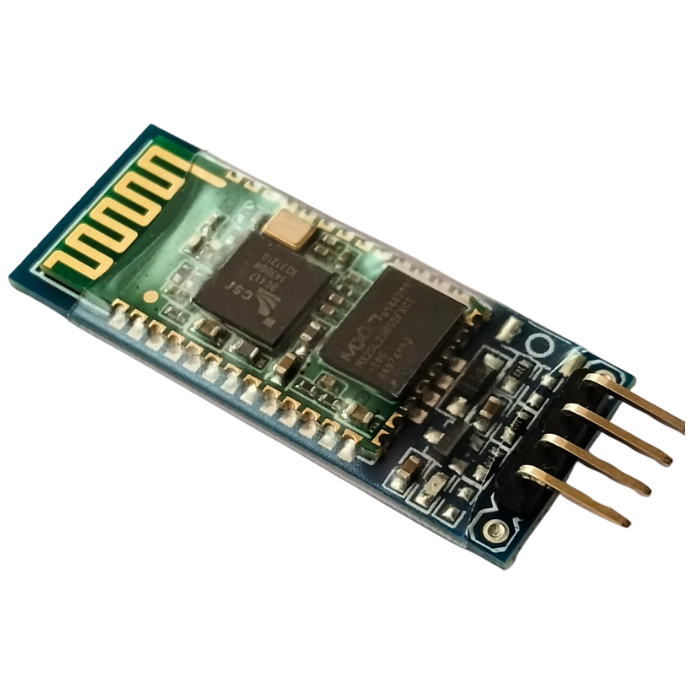

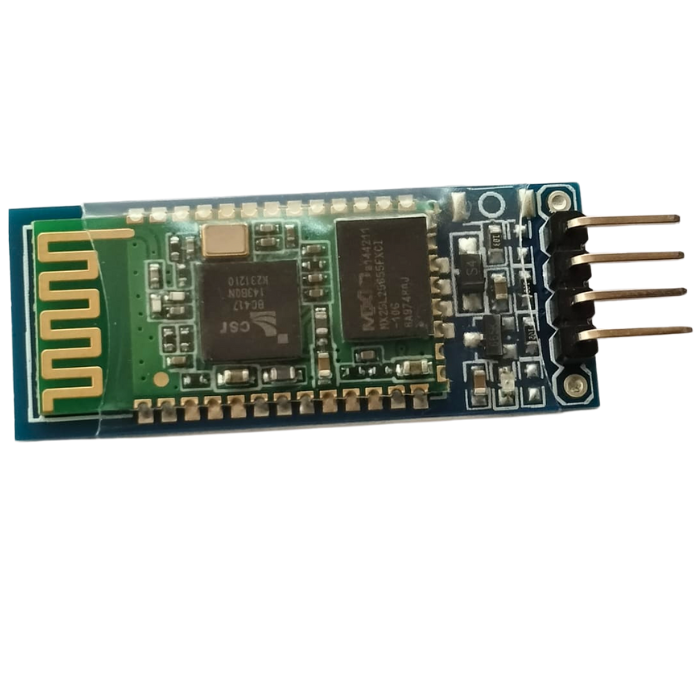

HC-06 Bluetooth Module
The HC-06 Bluetooth Module is a cost-effective solution designed for establishing short-range wireless data communication between two microcontrollers or systems. Using Bluetooth 2.0 communication protocol, it can only function as a slave device. Compared to other methods, it provides more flexibility and can transmit files at a speed of up to 2.1Mb/s, making it the cheapest method for wireless data transmission.
The HC-06 Bluetooth Module uses the frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices and enable full-duplex transmission. It operates within the frequency range of 2.402 GHz to 2.480 GHz, allowing for reliable and efficient data transmission.
The HC-06 Bluetooth Module with Base is a Serial port Bluetooth module that has a fully qualified Bluetooth V2.0+EDR (Enhanced Data Rate) 3Mbps Modulation. It comes equipped with a complete 2.4GHz radio transceiver and baseband, utilizing CSR Blue core 04-External single-chip Bluetooth system with CMOS technology and AFH (Adaptive Frequency Hopping Feature). The HC-06 Bluetooth Module with Base also boasts a typical -80dBm sensitivity, making it a highly sensitive and efficient device for wireless data communication.
Also, get the HC-05 Bluetooth Module at the best price!

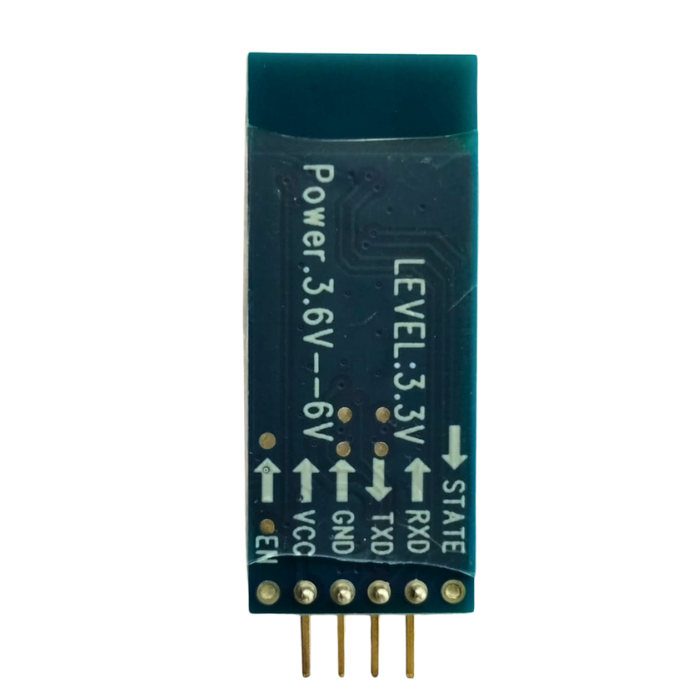

Pinout:
Features:
- Bluetooth 2.0 communication protocol
- Can only act as a slave device
- Frequency hopping spread spectrum technique (FHSS) to avoid interference with other devices
- Full duplex transmission
- Works on the frequency range from 2.402 GHz to 2.480GHz
- Very easy to interface and to communicate
- One of the cheapest solutions for wireless communication
- Consumes very less power to function
- Can be used on battery-operated mobile systems
- Can be interfaced with almost all controllers or processors as it uses UART interface
also check hc-05 bluetooth module, a versatile and cost-effective solution for wireless communication needs. It offers seamless communication for various applications
Applications:
- Robots and cars
- Remote controlled devices
- Home automation system
- Fire alarms
- IoT applications
Package Includes:
- 1 x HC-06 Bluetooth Module
Specifications
| Input Supply voltage (V) | 3.3- 6V |
| Frequency | 2.402 GHz to 2.480GHz. |
| Input current (mA) | 50 |
| Maximum Operating Range (m) | 10 |
| Dimensions | 5 x 2 x 1cms |
| Weight | 5 grams |
