Description

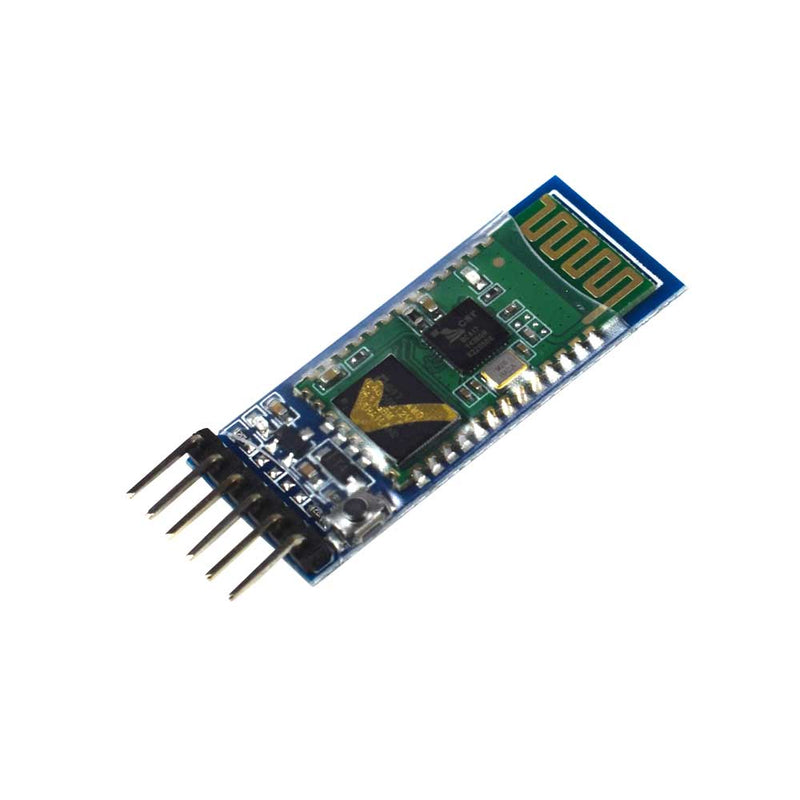

The HM-06 Bluetooth module is intended for short-range wireless data communication between two microcontrollers or systems. This is the cheapest and most flexible method for wireless data transmission, and it can even transmit files at speeds of up to 2.1 Mb/s. The UART interface is used to communicate with the HC-06 module. The working current is matched to 30 mA, matching the communication for 8 mA.

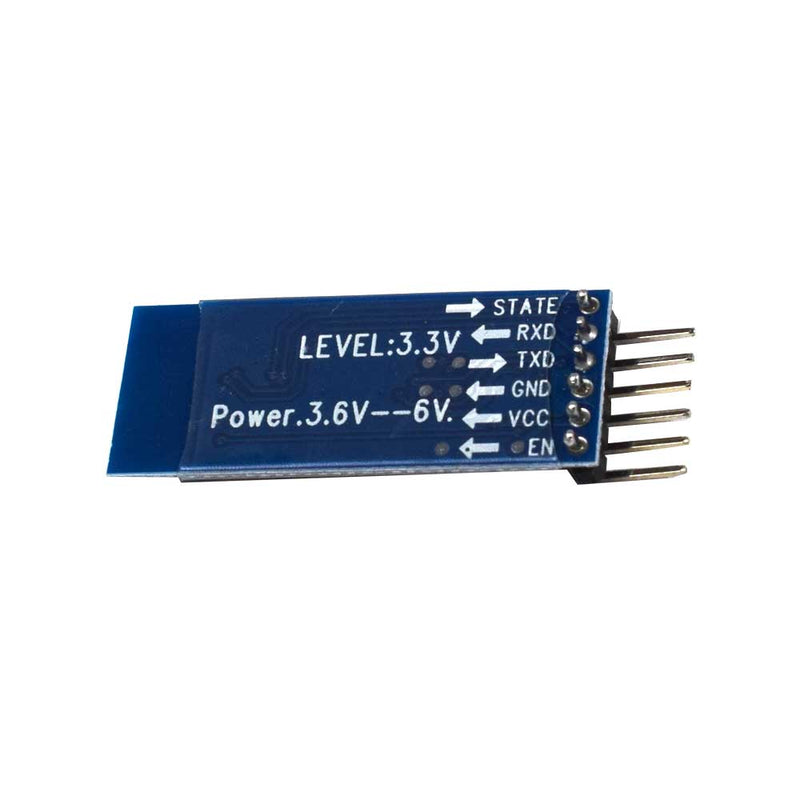

Pinout:
- KEY
- VCC
- GND
- TXD
- RXD
- STATE
Applications
- Engineering Projects
- Robotic
- Computer Peripherals
Specifications
| Model | HC-06 |
| Type | Bluetooth Module |
| Bluetooth Protocol | Bluetooth V2.0 Protocol |
| Power Level | Class 2 (+6dbm) |
| Operating Voltage Range | +3.3V to +6V |
| Operating Temperature Range | -20ºC to +55ºC |
| Operating Current | 40mA |
| Safety Feature | Authentication and encryption |
| Size(L*H*D) (mm) | 39*16*3.5 (mm) |
| Country of Origin | China |
