Description

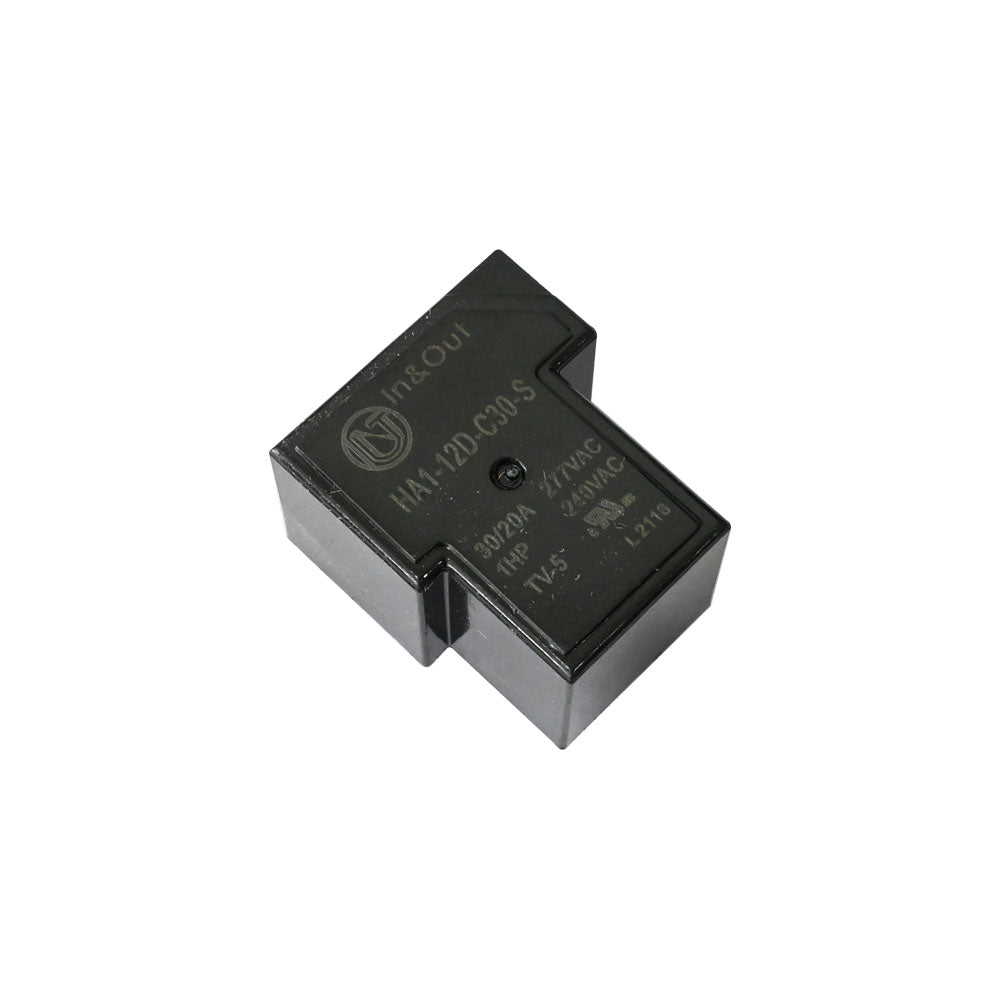

It's a T-Shape general-purpose Relay 12-24V DC 30A. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
Specification
| Model | HA1-12D-C30-S |
| Type | High Current Power Relay |
| Operating Voltage | 12-24V DC |
| AC Coil Voltage | 277V AC/ 30A |
| AC Coil Voltage |
240V AC/ 20A |
| Mounting Type | Through Hole |
| Size (L,W,H) | 32 x 27 x 20 mm |

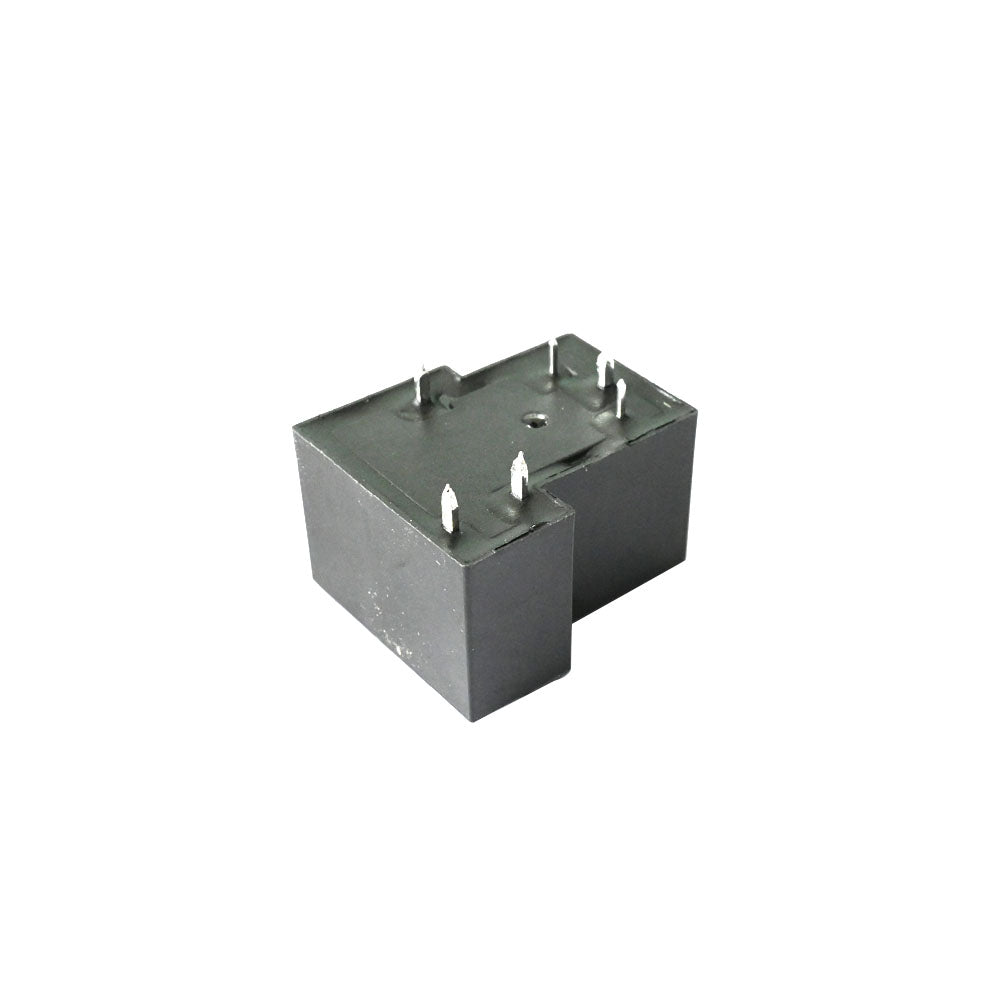

| No. of Terminals | 6 Pin |
| Quantity | 1 |
| Country of Origin | China |
