Description

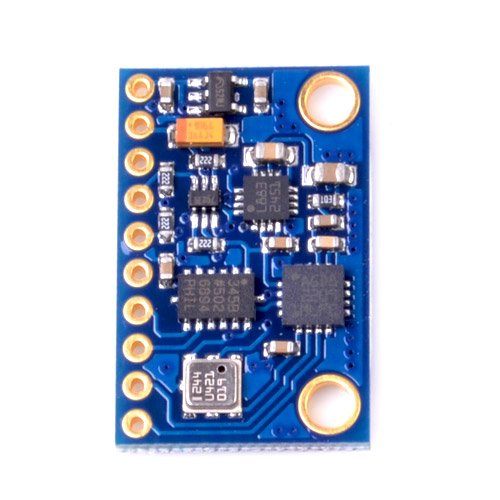

GY801 9-Axis Magnetic Acceleration Gyroscope Module
The GY801 module is a 9-axis motion tracking device that includes a 3-axis accelerometer, a 3-axis gyroscope, and a 3-axis magnetometer (compass). It can measure acceleration, angular velocity, and the Earth's magnetic field in 3 dimensions. The module is often used in applications such as orientation sensing, movement detection, and compass navigation. The GY801 module likely contains the necessary sensors and additional circuitry for interfacing with a microcontroller or other device.
The board consists of an L3G4200D 3-axis gyroscope, an ADXL345 3-axis accelerometer, an MC5883L 3-axis magnetometer, and a BMP085 barometer–thermometer. All of the sensors are accessible via an I2C interface.
Package Includes:

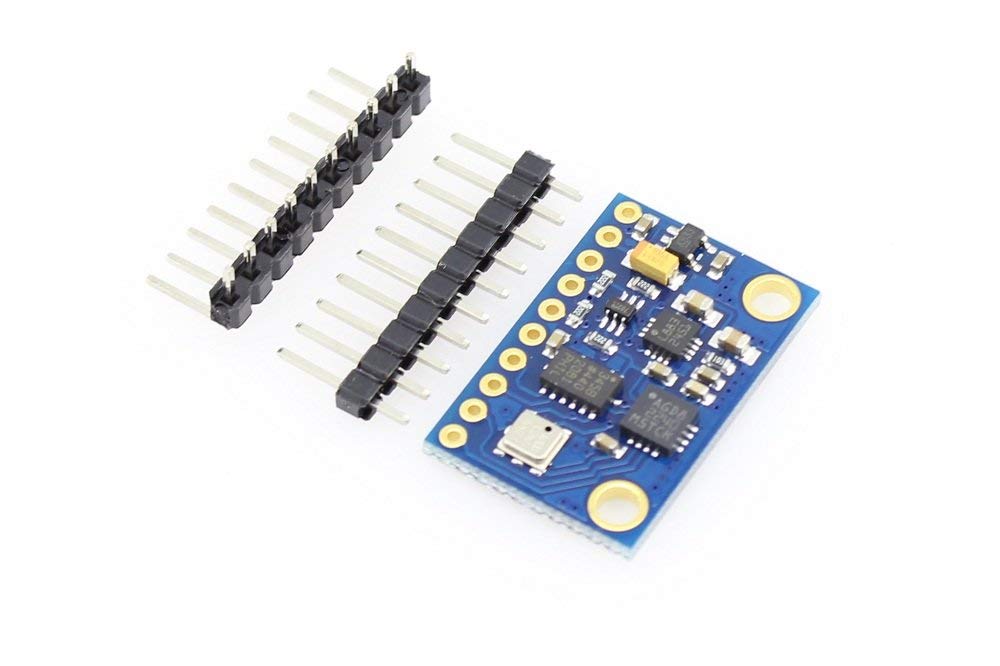

- 1 x GY801 9-Axis Magnetic Acceleration Gyroscope Module
Specifications
| Chipset | l3g4200d + adxl345 + hmc5883l + bmp085 |
| Power supply | 3-5V |
| Model | GY-801 |
| Dimensions | 25.8mm X 16.8mm |
| Mounting Holes | 3mm |
| Weight | 5 grams |
