Description
STMicroelectronics has created an innovative family of IGBTs, the Power MESHTM IGBTs, with remarkable performances using the most recent high voltage technology based on a proprietary strip arrangement. A family with the suffix "W" is one that has been optimized for use at very high frequencies .SMPS, PFC, and high frequency motor controllers in both hard switch and resonant topologies
Features
-
Its basically used for high frequency operations
-
Its very fast antiparallel diode
-
It has three terminal
-
Lower CRES/ CIES ratio (no cross-conduction susceptibility)
Specification

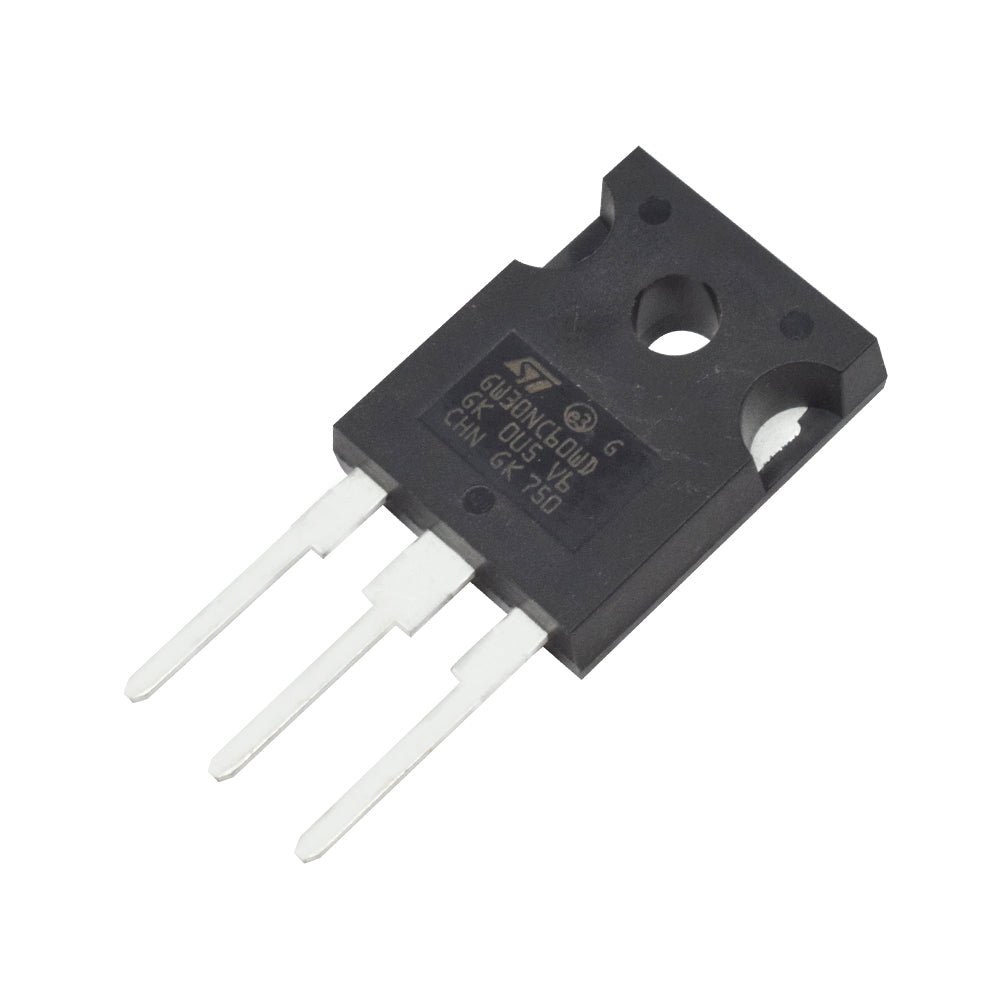

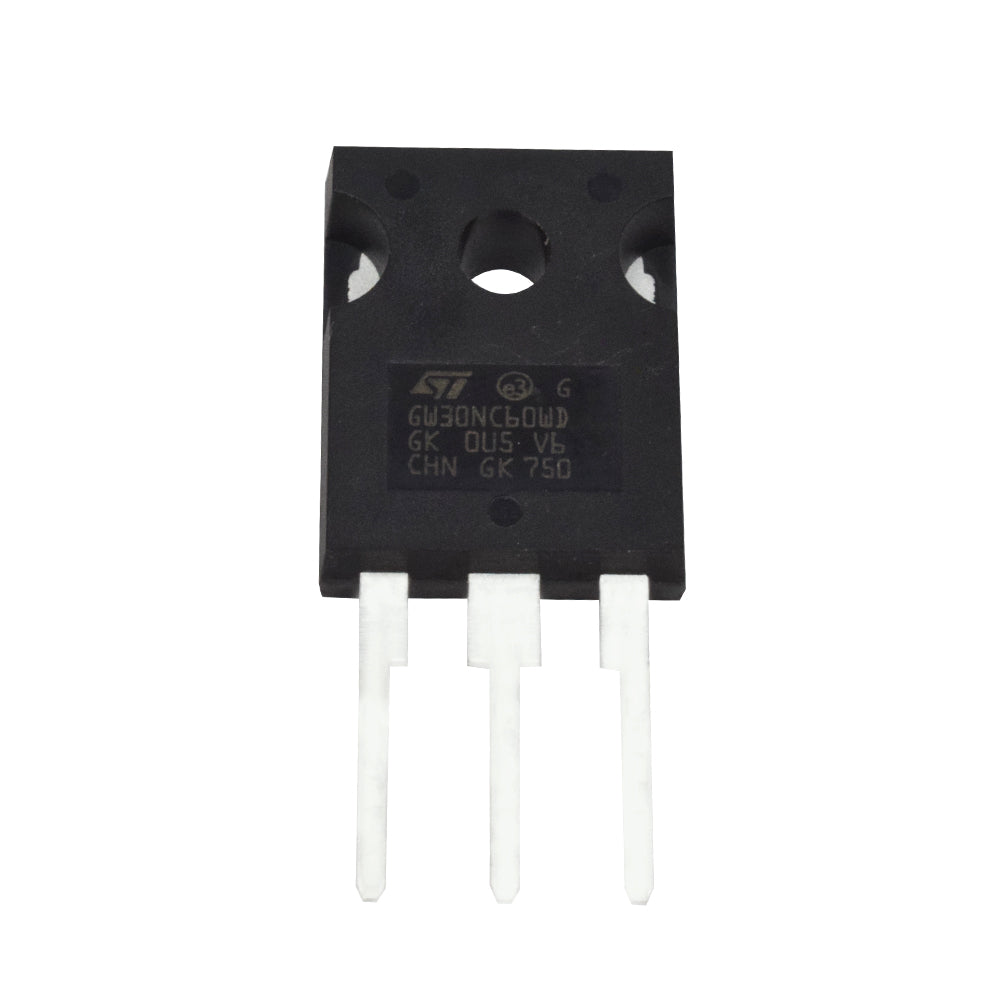

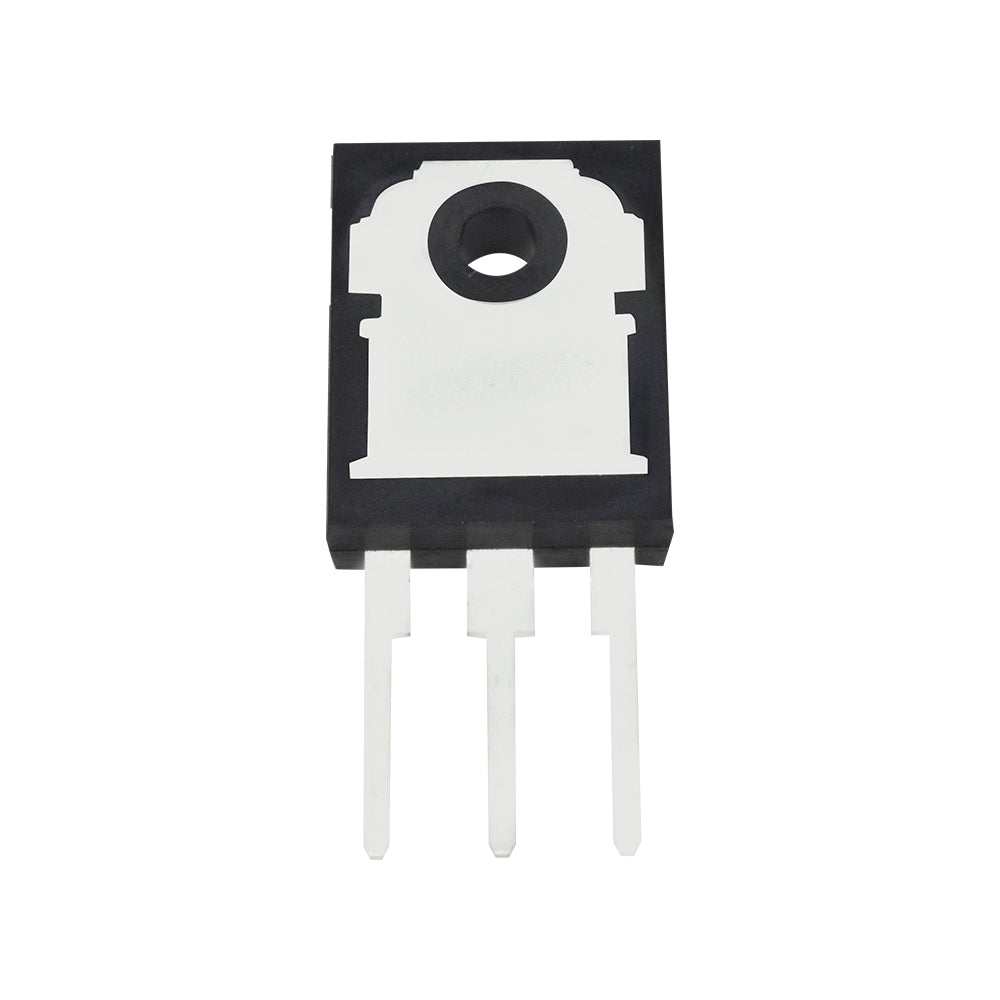

| Model | GW30NC60WD |
| Type | MOSFET |
| Package | TO-247 |
| Brand | STmicroelectronics |
| Max operating voltage | 600V |
| Max forward current | 30A |
| Total power dissipation | 70W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
