Grove - Long Range Radio 868MHz RFM95 LoRa Module
Check out the Grove - Long Range Radio 868MHz RFM95 LoRa Module from Seeed Studio.
Grove makes your IoT projects easier. This module gives you ultra-long-range communication. The RFM95 transceiver ensures you get strong, long-distance signals with low power use. It's powered by the ATmega168 chip, which is known for being efficient and powerful.

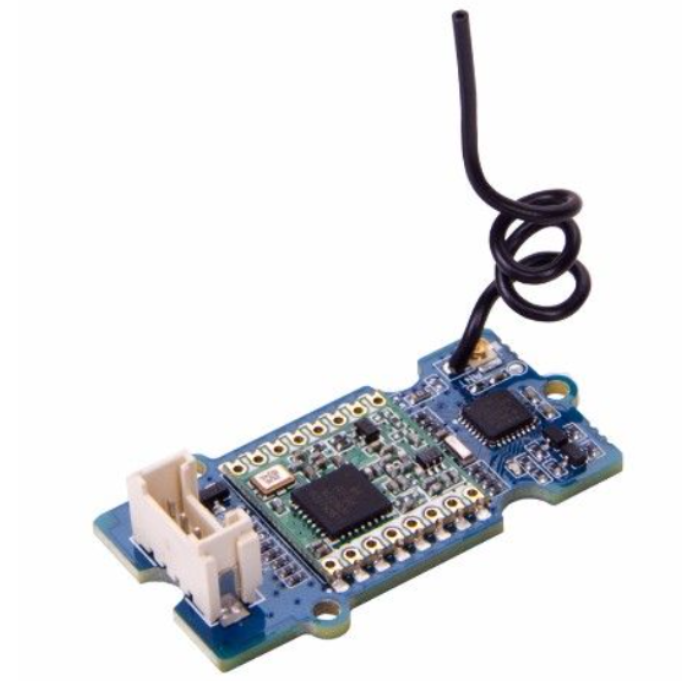

We’ve included a simple wire antenna. If you need a stronger signal, there's a connector for adding a second antenna.
Try the Grove - Long Range Radio 868MHz RFM95 LoRa Module and take your IoT projects to the next level!
Note:
- Keep the antenna vertical and straight for the best performance.
- Avoid putting large metal objects near the antenna, and if you’re adding a cape to your device, steer clear of metal ones.

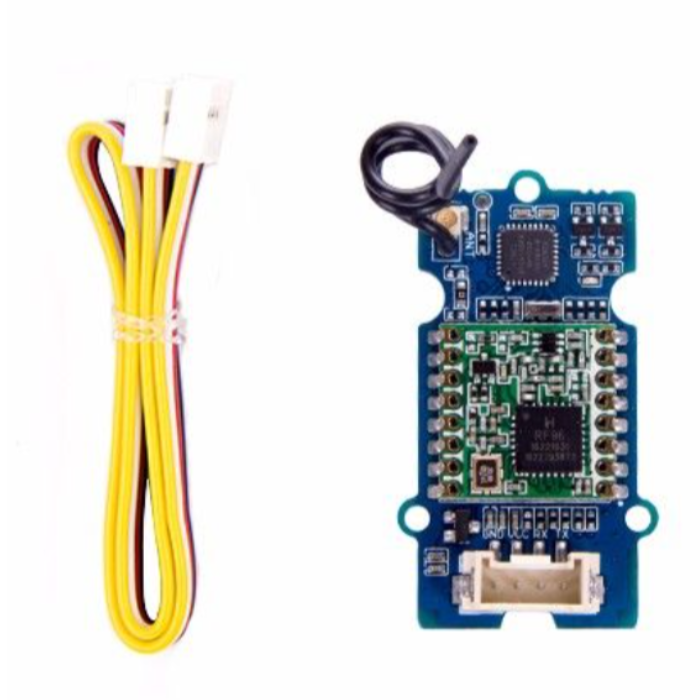

Package Includes:
- 1 x Grove - Long Range Radio 868MHz RFM95

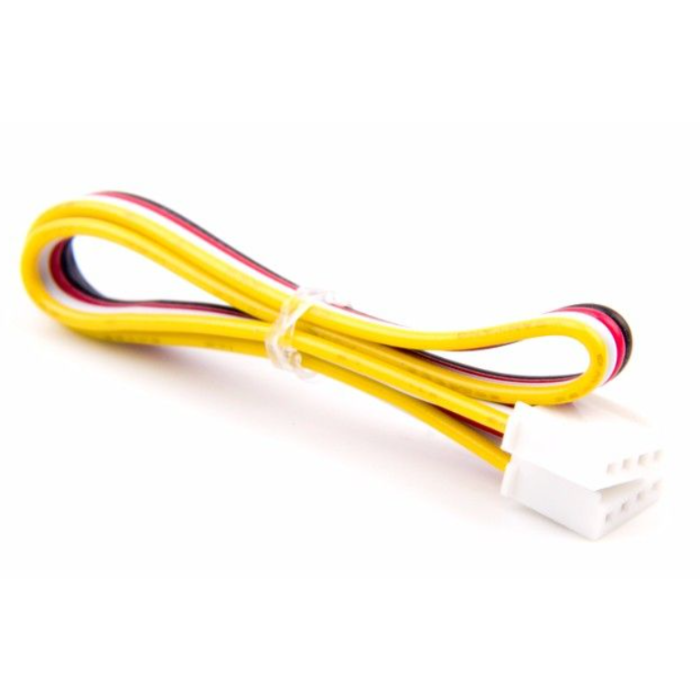

- 1 x Grove - cable
Specifications:
| Specification | Details |
|---|---|
| Model | Grove - Long Range Radio 868MHz RFM95 LoRa Module |

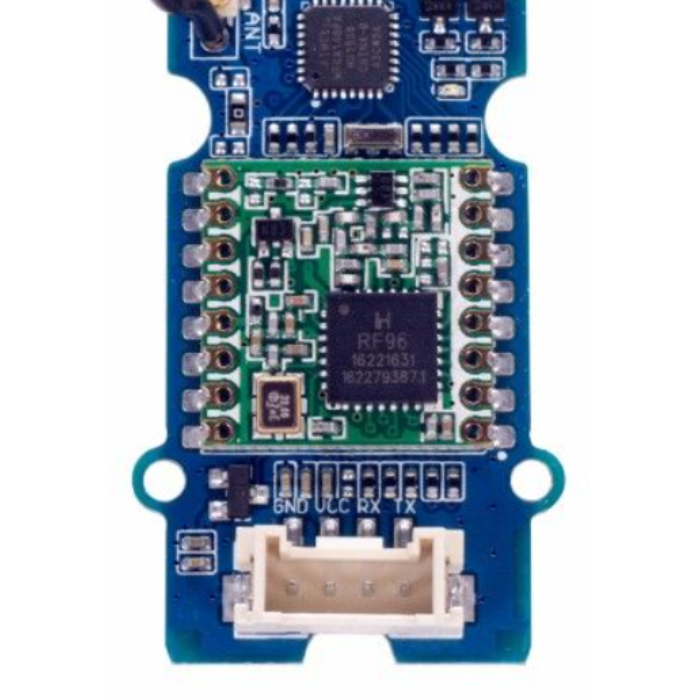

| Transceiver | RFM95 based on SX1276 Wio |
| Power Supply | 5V/3.3V |
| Current Consumption |
~28mA (Avg) @+20dBm continuous transmit ~8.4mA (Avg) @standby mode ~20mA (Avg) @receive mode, BW-500kHz |
| Working Temperature | -20 – 70℃ |
| Communication Interface | UART |
| Antenna Options | Simple wire antenna or MHF Connector for external high gain antenna |
| Working Frequency | 868MHz |
| Power Output Capability | +20dBm - 100 mW |

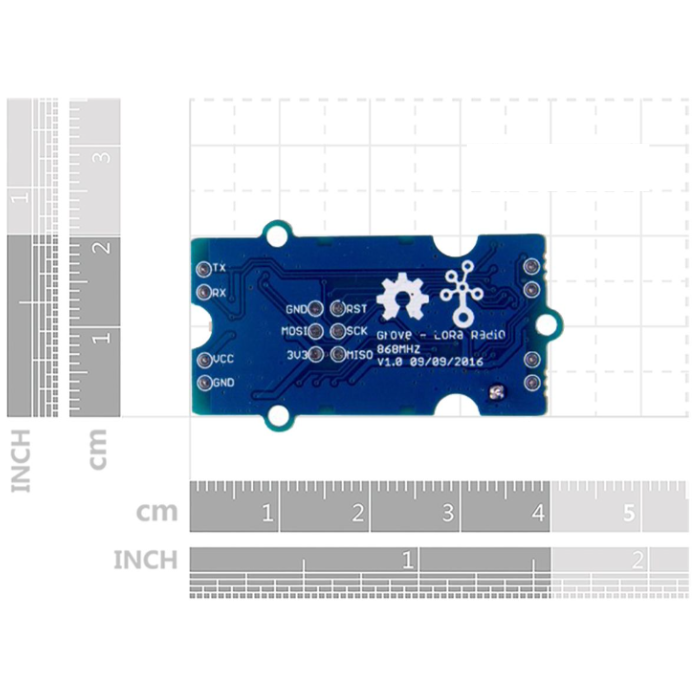

| Dimensions | 20 x 40mm |
