Description

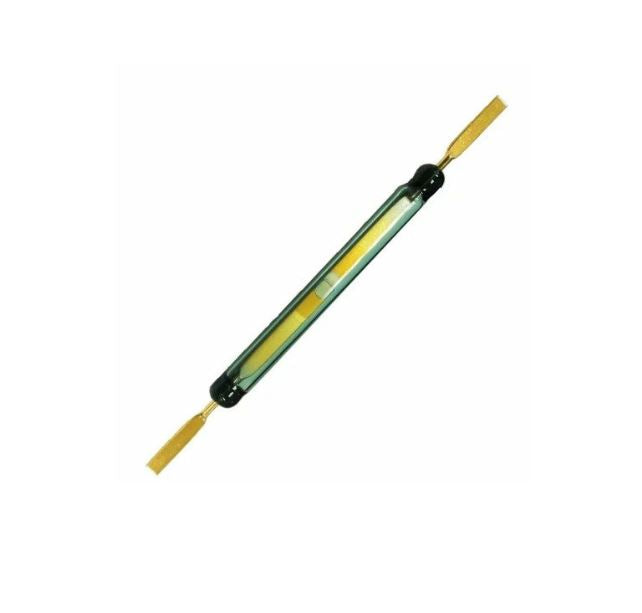

GHT0523 3A 120W SPST Reed Switch - Normally Open. A reed switch is an electromagnetic switch that operates with the help of an applied magnetic field and the electric field will be adjusted by the magnetic field. Reed switches, found in alarm systems, are positioned either flush within doors or surface-mounted on doors or windows. These switches consist of two parts: one acts as a switch installed in the door or window frame, while the other part, containing a magnet, is placed within the door or window itself.
Features:
- Its contact form is A and normally open
- Its contact material is Rhodium
- Its switching capacity is 120 W/VA
- Its switching voltage is 250 VAC
- Its switching current is 3.0A
- Pull-In Sensitivity 30-130 AT
- Drop-Out Sensitivity Min. 25 AT
- Operate Time Without Bounce Max 3.5ms
- Bounce Time Max. 0.5ms
- Release Time Max. 0.20ms
- Resonant Frequency Type. 900Hz
- Operating Frequency Max. 100Hz
- Capacitance Typ. 0.8pF
| Specifications | |
|---|---|
| Length | 79mm |
| Size | 79x5.4mm |
| Current Rating | 3A |
| Current - Switching | 3A |
| Voltage Rating - AC | 250VAC |
| Part No. | GHT0523 |
| Contact Resistence | 100m Ohm |
| Colour | Transparent |
| Operating Temperature | -40 Degree C- 125 Degree C |
| Material | Rhodium |
| No of Pin | 2 |
| Voltage | 250V AC |
| Current | 3A |
| Switching Type | Form A (Normally Open) |
| Type | Reed Switch |
| Brand | Glass Hi-Tech |
