Description

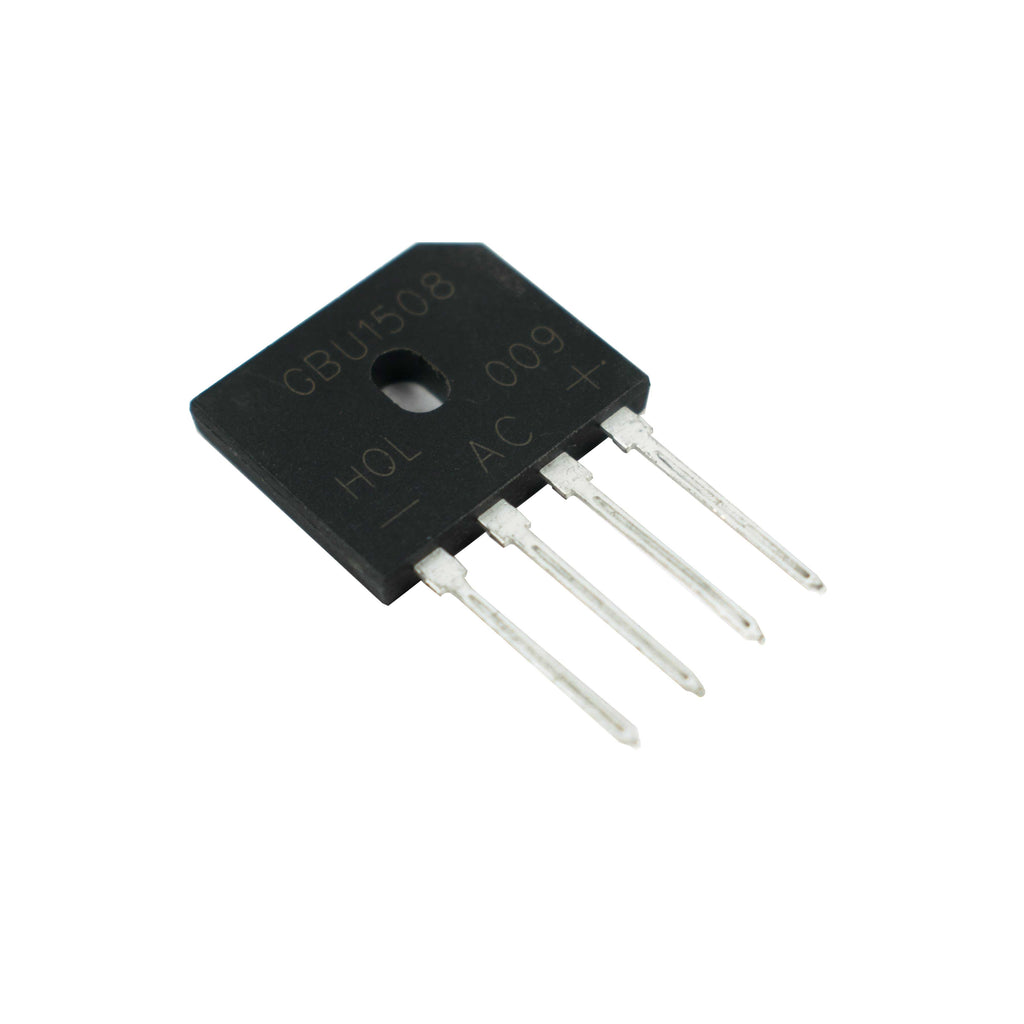

A Single Phase Bridge Rectifier, the GBU1508, is used. This IC can be utilised for a variety of applications because its maximum input AC RMS voltage is 700V. This IC can take up to 15A of average maximum current. This IC features a low forward voltage loss of 1V and a reverse breakdown voltage of 1000V. It is highly efficient and can handle 240 A of surge current. This can be a decent option if you're seeking for a small IC for rectification applications.
The uninterruptible power supply, led and LCD TVs, audio amplifiers, and radios are the principal applications for this single phase bridge rectifier.
Features
- High thermal conductivity package, electrically insulated case
- Positive polarity symbol moulded on the plastic case
- Centre hole fixing
- Glass passivated diode chips
- Excellent power/volume ratio
- -55 to 150°C Operating junction temperature range
Specification
| Model | GBU1508 |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage V(RMS) | 700 V |
| Maximum DC Blocking Voltage | 1000V |
| Average Forward Rectified Output Current | 15A |
| Peak Reverse Current at 25°C | 10µA |
| Operating and Storage Temperature Range | -40°C TO 150°C |
| Country of Origin | China |
