Description

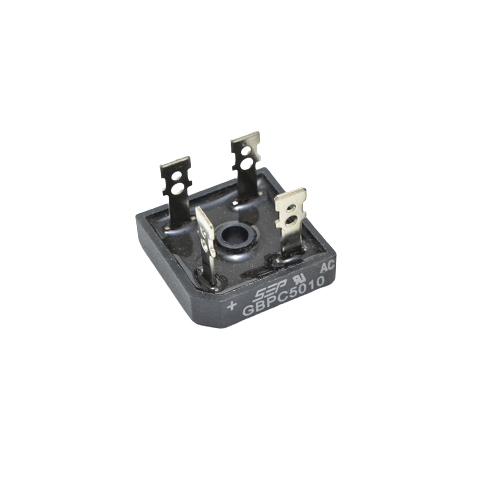

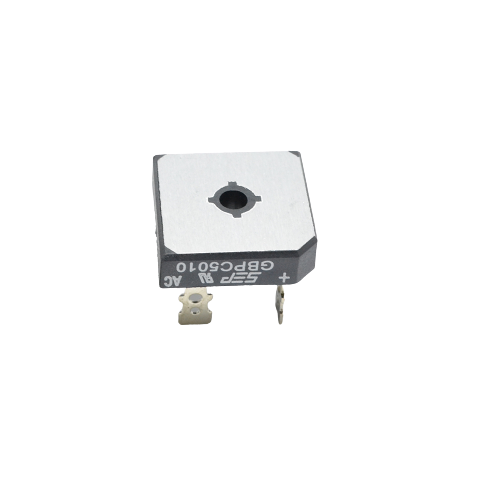

The GBPC5010 is a Single-Phase Bridge Rectifier. The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around 40A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.1V. It has high efficiency and a surge current capability of 400 A. If you are looking for a compact IC for rectification applications this can be a good choice.
Features
- Integrally moulded heat sink provided low thermal resistance for maximum heat dissipation
- High surge current capability
- Void-free junction soldering by using vacuum soldering
- Universal 3-way terminals: snap-on, wire-around, or P.C board mounting
Specification
| Model | GBPC5010W |
| Type | Bridge Rectifier Diode |
| Working Peak Reverse Voltage | 1000 V |
| RMS Reverse Voltage V(RMS) | 700 V |
| Average Forward Rectified Output Current | 50 A |
| Peak Reverse Current @ 25°C | 5µA |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
