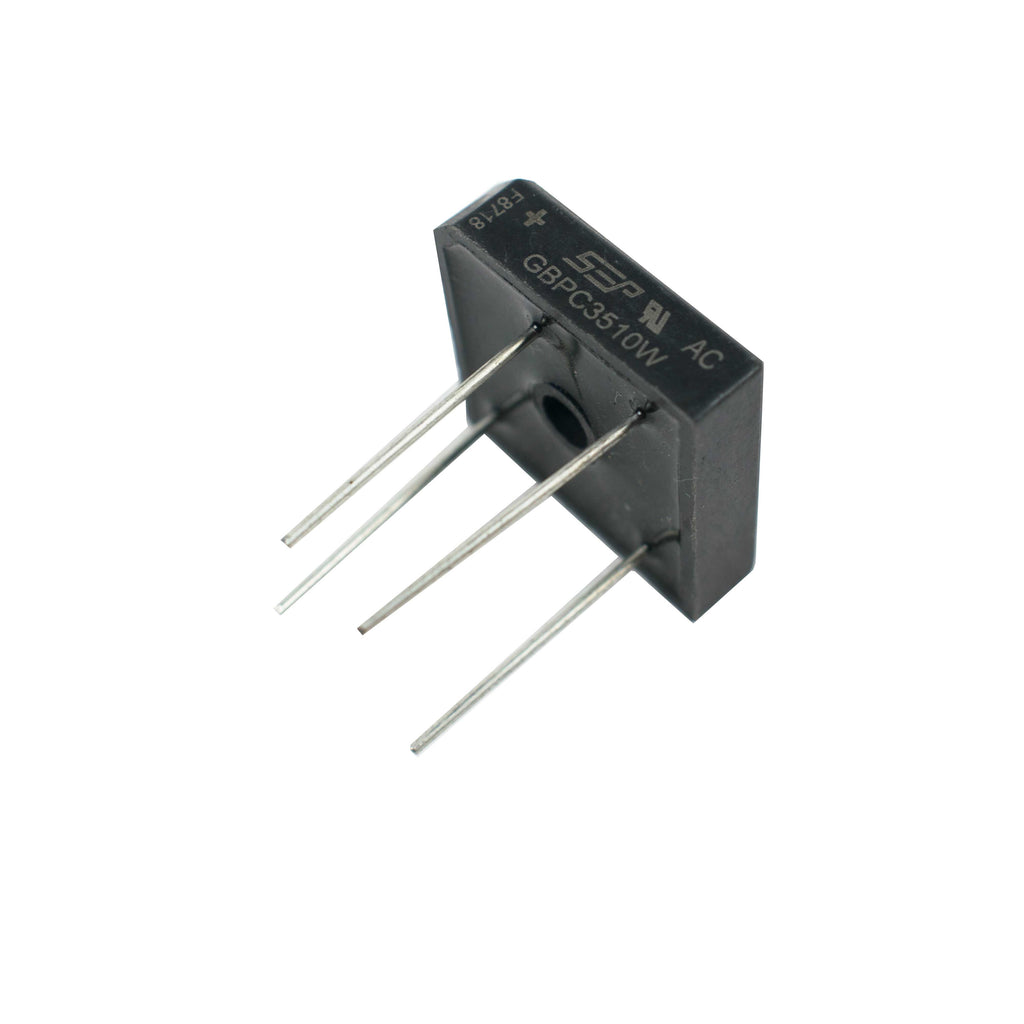

GBPC3510W 1000V, 35A Through hole Single Phase Bridge Rectifier

Save 20%
Sold By: HatchnHackSKU: D13-14

Price:
Sale price₹ 57.00 Regular price₹ 71.00

Tax included Shipping calculated at checkout

Out of stock

Description

The GBPC3510W  is  a Single Phase Bridge Rectifier .The maximum input AC RMS voltage of this IC is 700V hence can be used for a broad range of applications. The maximum average current this IC can handle is around  35A. This IC has a reverse breakdown voltage of 1000V and a low forward voltage drop of 1.2V. It has high efficiency and a  surge current capability of 400 A. If you are looking for a compact IC for rectification application this can be a good choice. This single phase bridge rectifier is mainly used in charger circuits , uninterruptible power supply , led and lcd TVs, audio amplifier and radios.

Features

  • High thermal conductivity package, electrically insulated case
  • Positive polarity symbol moulded on the plastic case
  • Centre hole fixing
  • Glass passivated diode chips
  • Excellent power/volume ratio
  • -55 to 150°C Operating junction temperature range
  • Specification
    Model GBPC3510W
    Type Bridge Rectifier Diode
    Working Peak Reverse Voltage 1000 V
    RMS Reverse Voltage VR(RMS)   700 V
    Average Forward Rectified Output Current 35A
    Peak Reverse Current at 25°C 10µA
    No. of Pins 4Pins
    Operating and Storage Temperature Range -55°C TO 150°C
    Country of Origin China
