Description

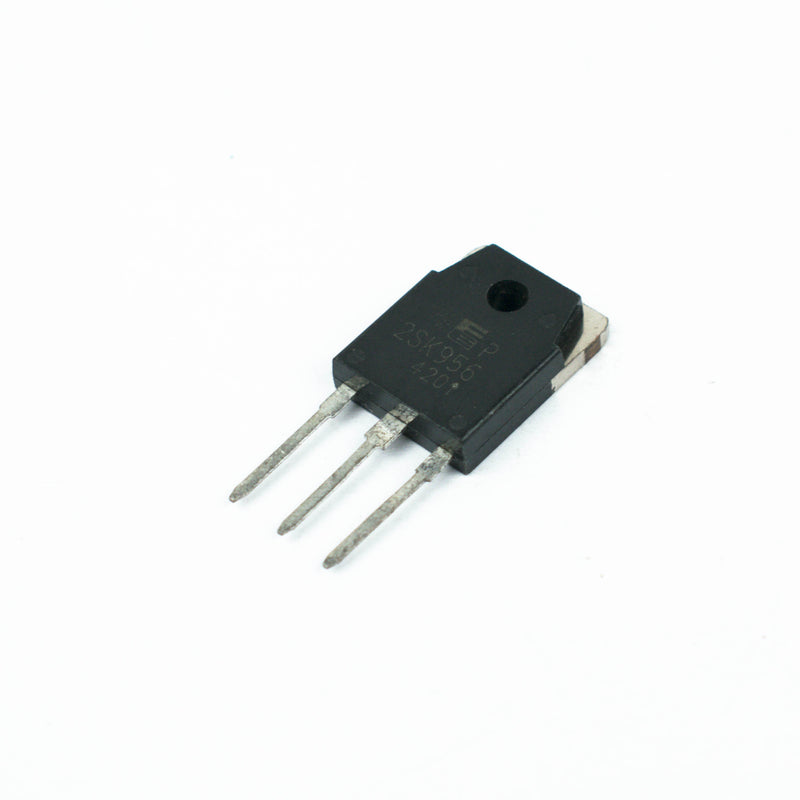

FUJI ELECTRIC 2SK956 is a N-Channel silicon power MOSFET. It is through hole(THD) active component with three terminals: Gate, Drain and Source. This device is specifically designed for high voltage, high speed applications. Off-line switching power supplies, uninterruptible power supplies, AC and DC motor controls, relays, and solenoid drivers are examples.
Features
- High speed switching
- Low on-resistance
- No secondary breakdown
- Low driving power
- High voltage
- VGSS = ±30V
Applications
- Switching regulators
- UPS
- DC-DC converters
- General purpose power amplifier
Specifications
| Model | 2SK956 |
| Brand | FUJI ELECTRIC |
| Drain-Source Voltage (VDSS) | 800V |
| Continuous Drain-Current (ID) | 9A |
| Pulsed Drain-Current | 26A |
| Continuous Reversed Drain-Current (IDR) | 9A |
| Max. Power Dissipation (PD) | 150W |
| Operating Temperature | 150°C |
| Storage Temperature Range | -55~150°C |
| Mounting Type | Through Hole |
| Country of Origin | China |
