FR107 Diode €“ 1A Fast Switching Rectifier

Save 95%
Sold By: HatchnHackSKU: B12-37

Price:
Sale price₹ 0.64 Regular price₹ 11.64

Tax included Shipping calculated at checkout

Min Qty: 1

Description

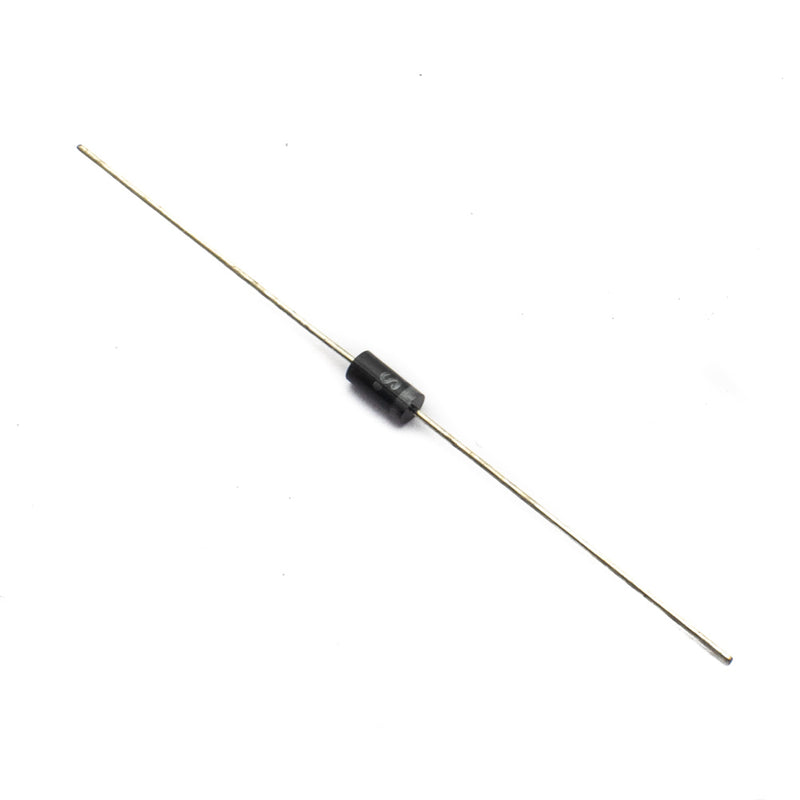

The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For FR107 Diode, the maximum current carrying capacity is 1A it withstands peaks up to 50A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 30uA which is negligible.

Features

  • Low forward voltage
  • High current capability
  • Low leakage current
  • High surge capability
  • Low-cost

Specification

Forward Voltage

1.3V (1A)

Peak Reverse Voltage

1000V

Maximum RMS Voltage

700V

Average Forward Current

1A

Non-Repetitive Peak Forward Surge Current

50A

Operating Temperature Range

-65°C to + 150°C

Low Reverse Leakage Current

30µA

Country of Origin China
