Description

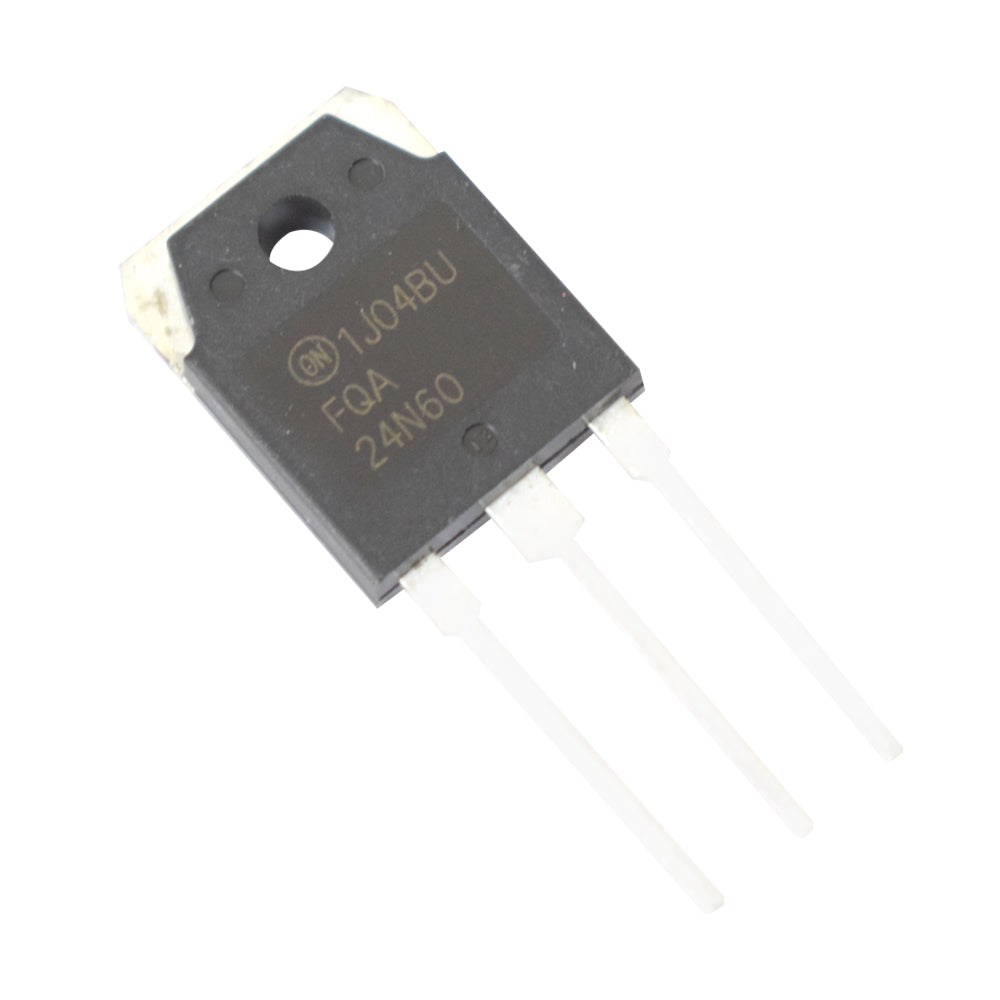

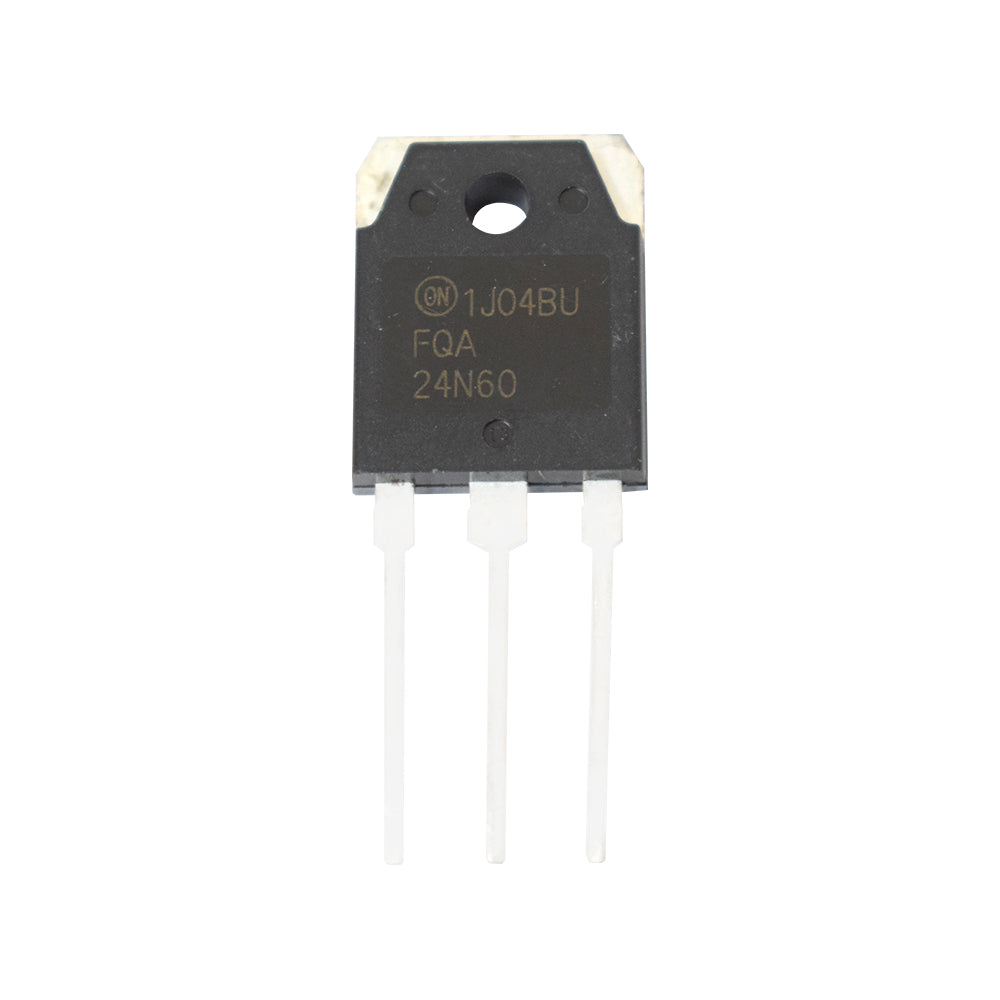

FQA24N60 is a N-Channel Enhancement mode metal oxide field effect transistor its basically used for switching purpose its used for high switching and power switching applications, Its operating voltage is 600V, its forward current is 23.5A, it provides superior switching performance that is why its mostly used in switching applications like in SMPS, UPS, Power switching Etc.
Features
-
Its low gate charge is typically 110nC
-
Its operating voltage is 600V
-
Its operating current is 23.5A
-
Its used for fast switching applications
-
Improved DV/DT capability
Specification
| Model | FQA24N60 |
| Type | MOSFET |
| Package | TO-3P |
| Brand | ONSEMI |
| Input capacitance | 5500pF |
| Output capacitance | 750pF |
| Reverse recovery time | 470nS |
| Operating Voltage | 600V |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
