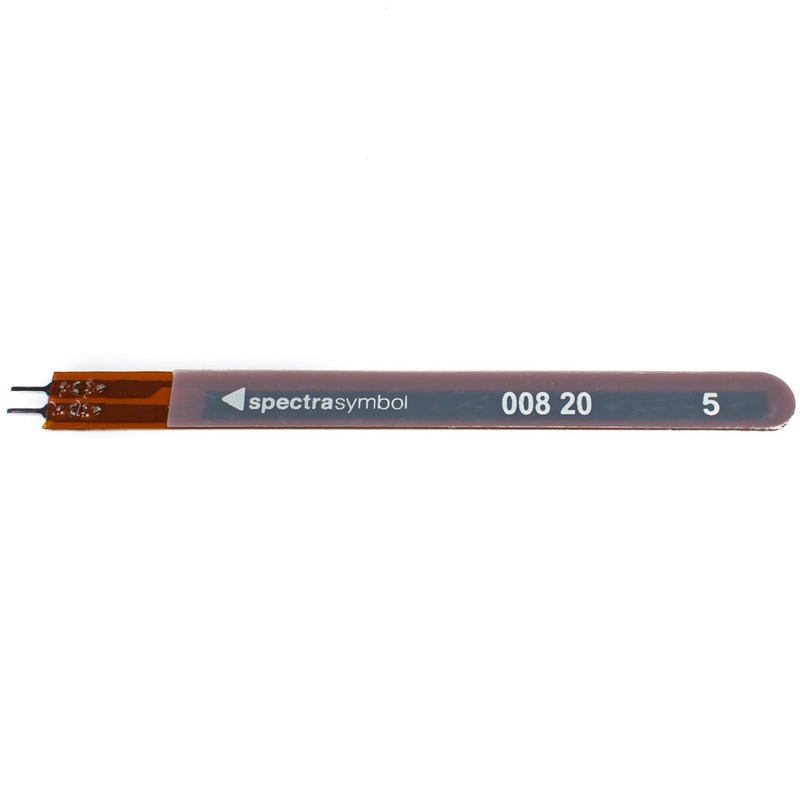

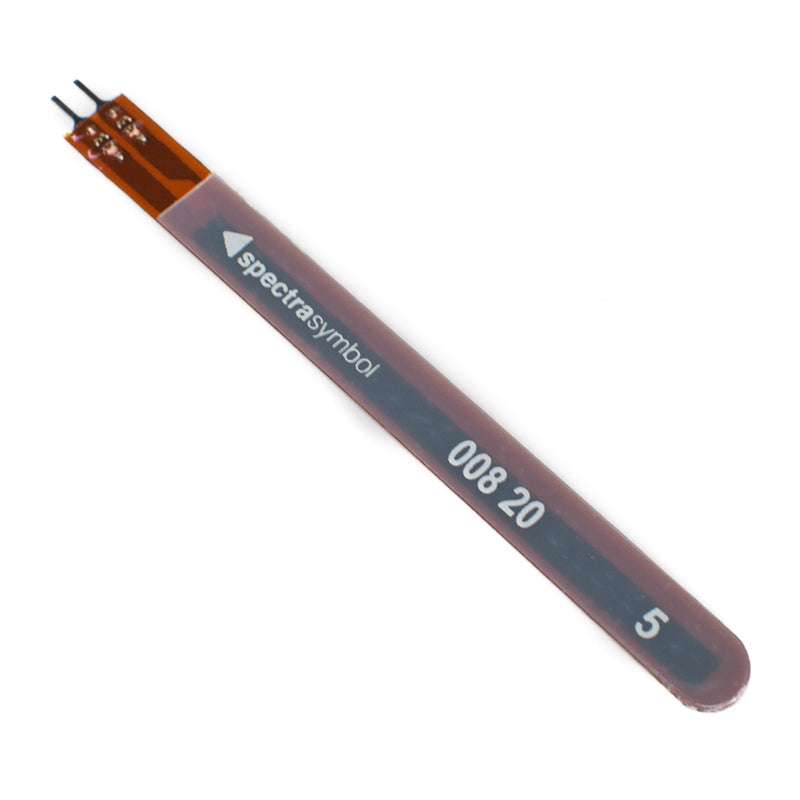

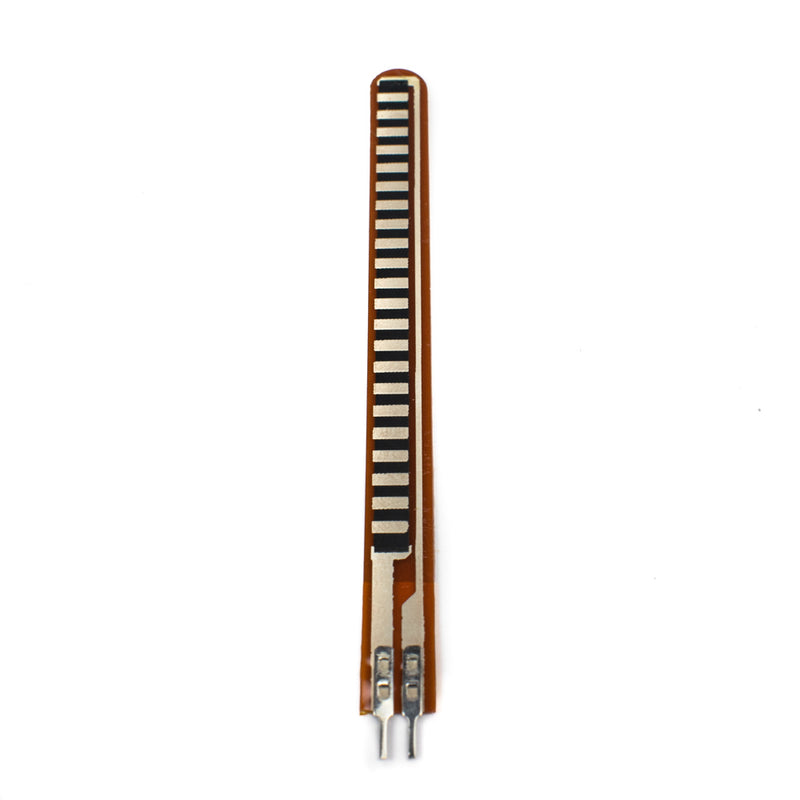

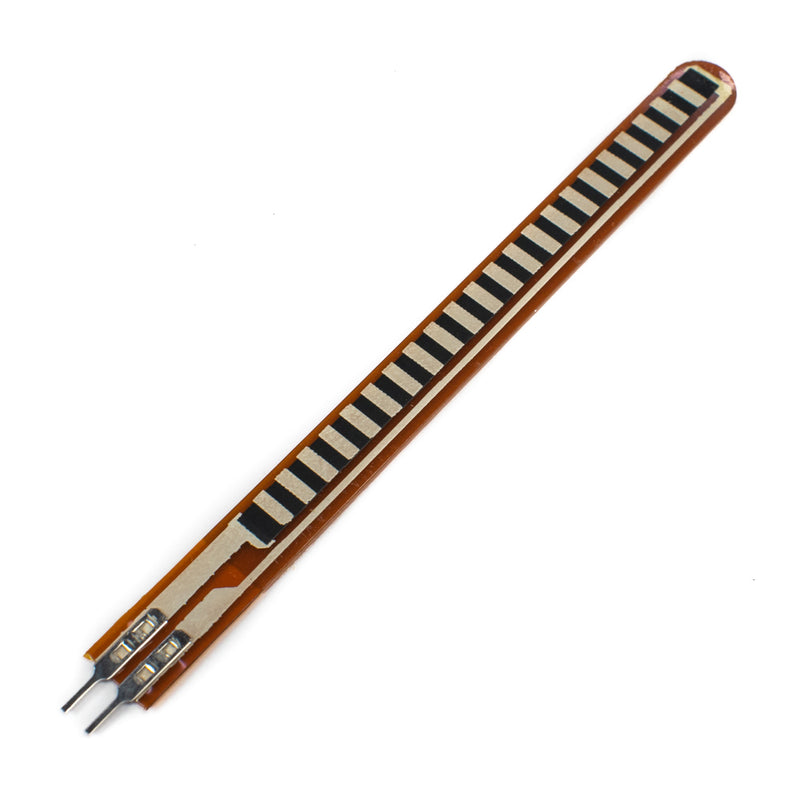

Flex Sensor 2.2″ Bend Sensor for Hand Gesture Recognition

In Stock - SKU: 6D12

365.00
[ ₹ 309.32 + ₹ 55.68 (18% GST) ]
  • Flex length: 5.6 cm
  • Operating  voltage: 0-5V
  • Power rating: 0.5Watt (continuous), 1 Watt (peak)
  • Flat Resistance:  25K Ω
  • Order within

Specification-

Flex length 5.6 cm
Operating  voltage   0-5V
Power rating 0.5Watt (continuous), 1 Watt (peak)
Life 1 million
Flat Resistance 25K Ω
Resistance Tolerance ±30%
Bend Resistance Range 45K to 125K Ohms(depending on bend)
Total Length 2.2″



Description-
  • The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.

Specification-

Flex length 5.6 cm
Operating  voltage   0-5V
Power rating 0.5Watt (continuous), 1 Watt (peak)
Life 1 million
Flat Resistance 25K Ω
Resistance Tolerance ±30%
Bend Resistance Range 45K to 125K Ohms(depending on bend)
Total Length 2.2″



Description-
  • The flex sensor is a bend detecting sensor that has got numerous applications in robotics, medical and haptic technology. The resistance of these sensors changes in accordance with the bend, which can be measured using any microcontroller.
