Description

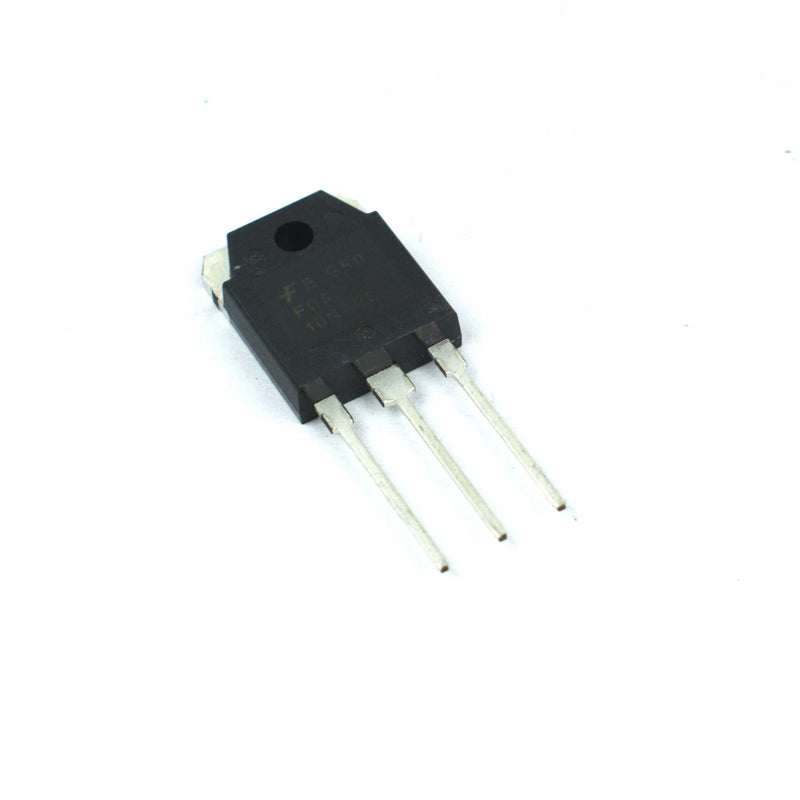

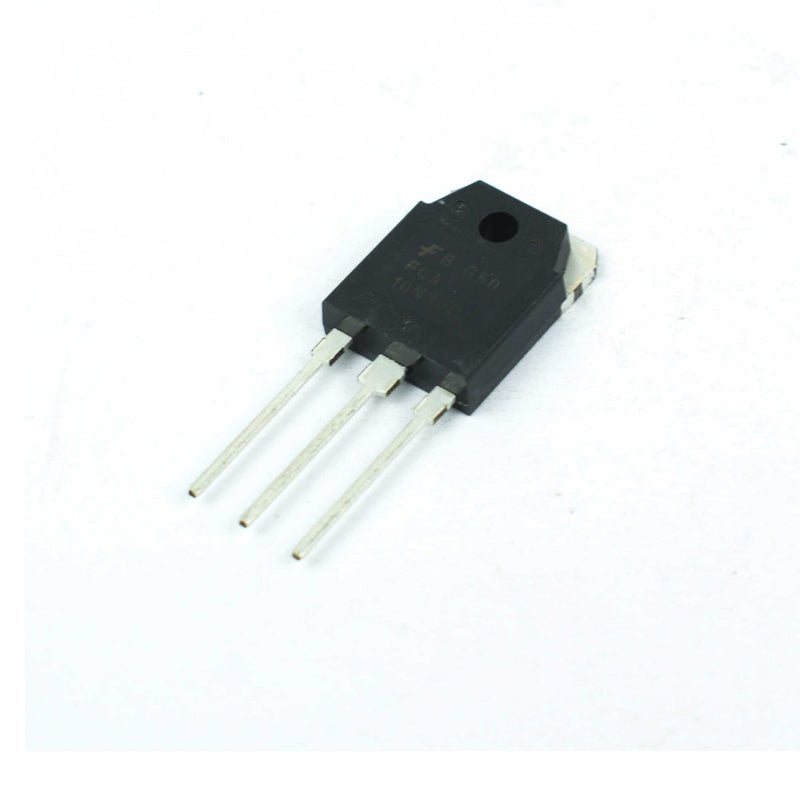

FAIRCHILD FQA10N80C is an 800V N-Channel MOSFET. These N-Channel enhancement mode power field effect transistors are made using DMOS technology. It has three terminals: gate, collector, and emitter. Its switching performance is superior, and it can withstand high-energy pulses in avalanche and commutation modes. These components are ideal for high-efficiency switch mode power supplies.
Features
- 10A, 800V, RDS (on)=1.1Ω @Vgs=10V
- Low gate charge
- Low Crss (typical 15pF)
- Fast switching
- 100% avalanche tested
- Improved dv/dt capability
Specifications
| Model | FQA10N80C |
| Brand | FAIRCHILD |
| Drain-Source Voltage (VDSS) | 800V |
| Continuous Drain-Current (ID) | 10A |
| Pulsed Drain-Current (IDM) | 40A |
| Gate-Source Voltage (VGSS) | ±30V |
| Avalanche Current (IAR) | 10A |
| Repetitive Avalanche Energy (EAR) | 24mJ |
| Operating and Storage Temperature | -55~150°C |
| Mounting Type | Through Hole |
| Package | TO-3P |
| Country of Origin | China |
