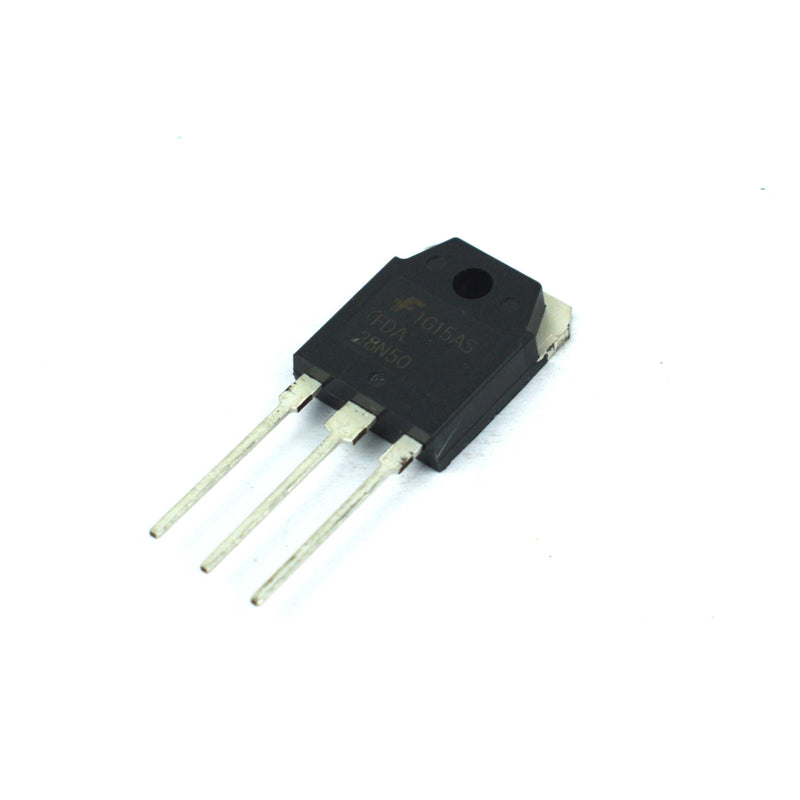

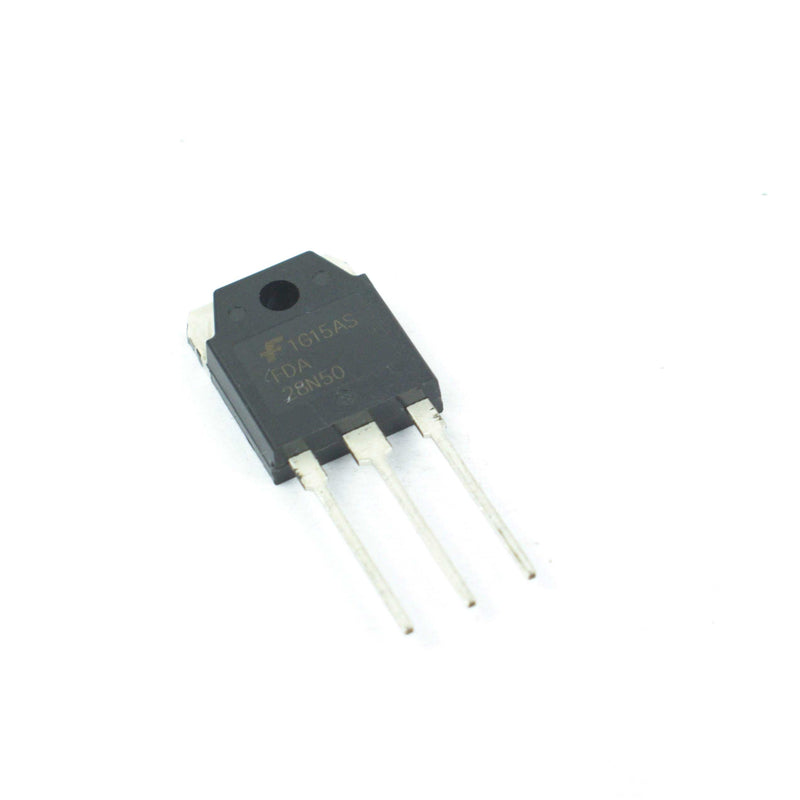

FAIRCHILD FDA28N50 N-Channel MOSFET

Save 10%
Sold By: HatchnHackSKU: E09-72

Price:
Sale price₹ 136.80 Regular price₹ 152.00

Tax included Shipping calculated at checkout

Min Qty:

Description

FAIRCHILD FDA28N50 is an N-Channel 500V, 28A MOSFET. It is a Through-hole(THD) active component which consists of three terminals Gate, Source, and Drain. These N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, planar stripe, DMOS technology.

Features

  • RDS(on)= 0.122Ω( Typ.)@ VGS= 10V, ID= 14A
  • Low Gate Charge (Typ. 80nC)
  • Low Crss (Typ. 42pF)
  • Fast Switching
  • 100% avalanche tested
  • Improved dv/dt capability
  • RoHS compliant

Datasheet

Specifications
 Model FDA28N50
 Brand FAIRCHILD
 Transistor Type  N-Channel
 Drain-Source Voltage (VDSS) 500V
 Gate-Source Voltage (VGSS) ±30V
 Drain Current Continuous (ID) 28A
 Drain Current Pulsed 112A
 Power Dissipation 310W
 Operating and storage Temperature range -55~150 degree C
 Mounting Type Through Hole
Country of Origin China
