Description

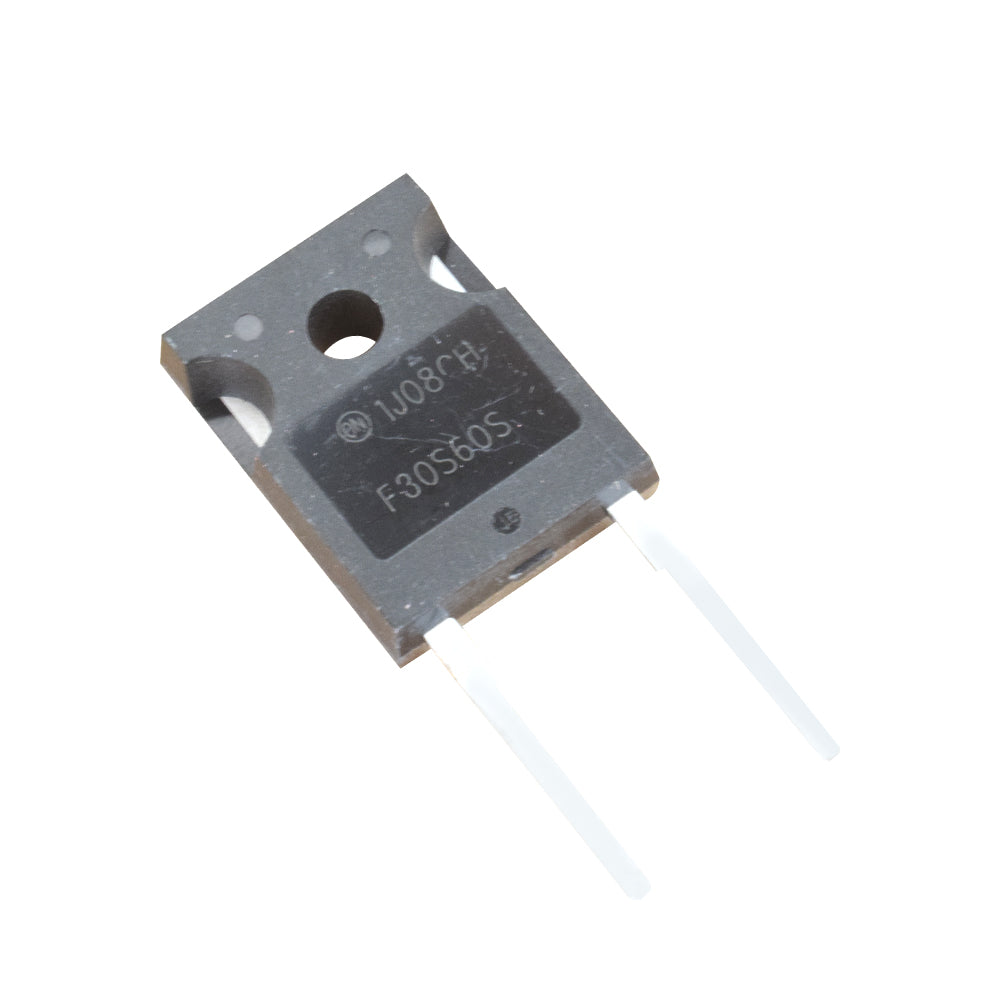

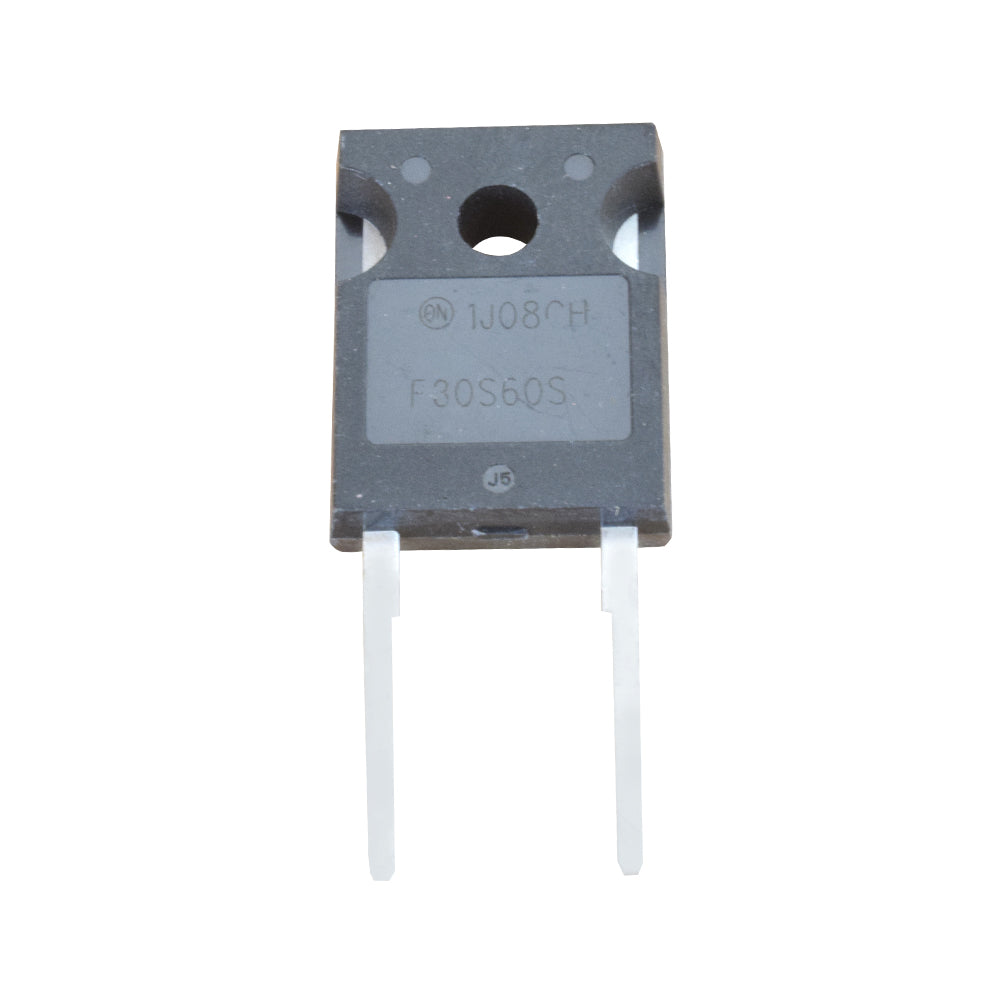

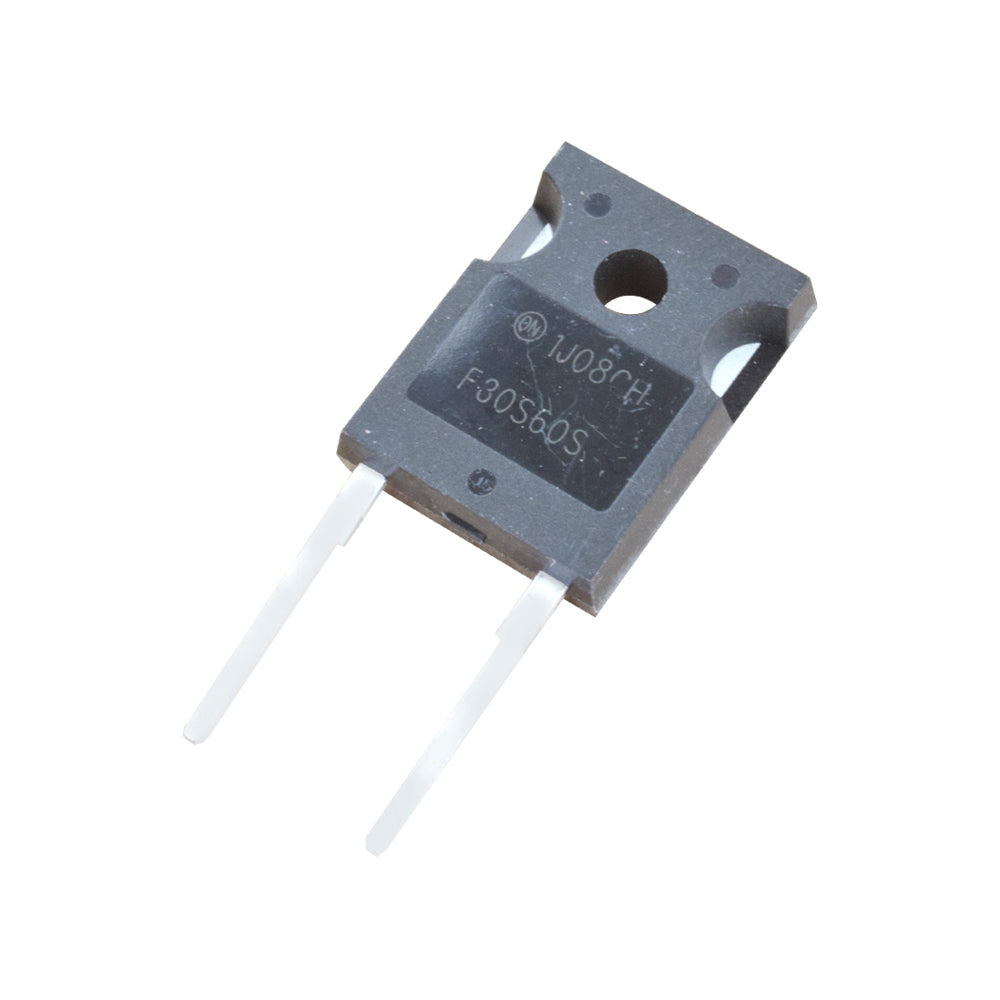

F30S60S is a Ultrafast switching diode its a switch mode ultrafast diode its operating voltage is 600V and its forward current is 30A it has two leads for the connectivity its used for freewheeling, snubber, clamp, inversion welder, PFC, Plating power supply, ultrasonic cleaner and welder, UPS. It has ultrafast recovery time time that is why its used in fast switching operations.
Features
- It has soft recovery characteristic
- Ultrafast recovery time
- Low recovery loss
- Low forward voltage
- High surge current capability
- Low leakage current
Specification
| Model | F30S60S |
| Type | Diode |
| Package | TO-220AC |
| Brand | ONSEMI |
| Voltage | 600V |
| Forward Voltage | 30A |
|
Module-to-Sink
|
1.1N-m |
| Total power dissipation | 156W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
