ESP32 LoRa with Display - 863MHz-928MHz SX1276

ESP32 LoRa with Display

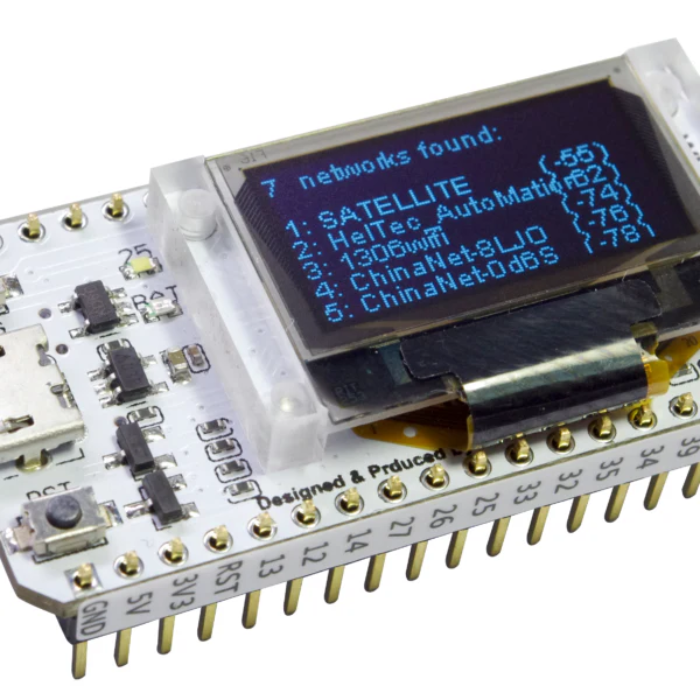

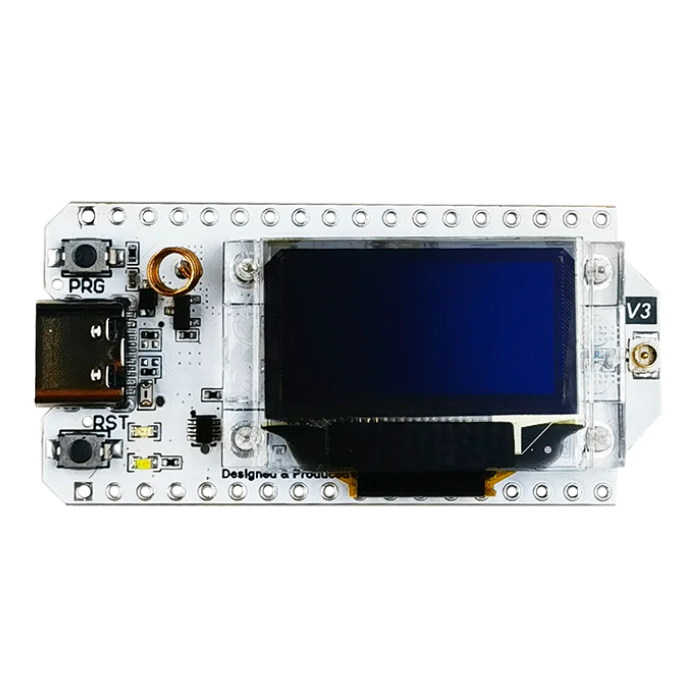

ESP32 LoRa with Display - 863MHz-928MHz SX1276 is a development board for IoT projects that includes an ESP32 microprocessor, a SX1276 LoRa node chip, and a 0.96-inch OLED display.
ESP32 LoRa with Display operates on frequencies between 863MHz and 928MHz and is designed for wireless communication projects. The board has a high sensitivity of about -148dBm and a power output of +20 dBm. It also includes a lithium battery charging circuit and a CP2102 USB to serial chip. The board can be used for LoRaWAN wireless communication development and other IoT projects.

Pinout:

Features:

• Dual-core processor clocked at 240MHz with computing power up to 600DMIPS, and 520 KB SRAM.
• Supports Sniffer, Station, softAP, and Wi-Fi Direct modes.
• Data rate of 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20.
• High sensitivity of about -148dBm.
• Power output of +20 dBm.
• Includes a lithium battery charging circuit, a CP2102 USB to serial chip, and a 0.96-inch blue OLED display.
• Suitable for LoRaWAN wireless communication development and other IoT projects.

Package Includes:

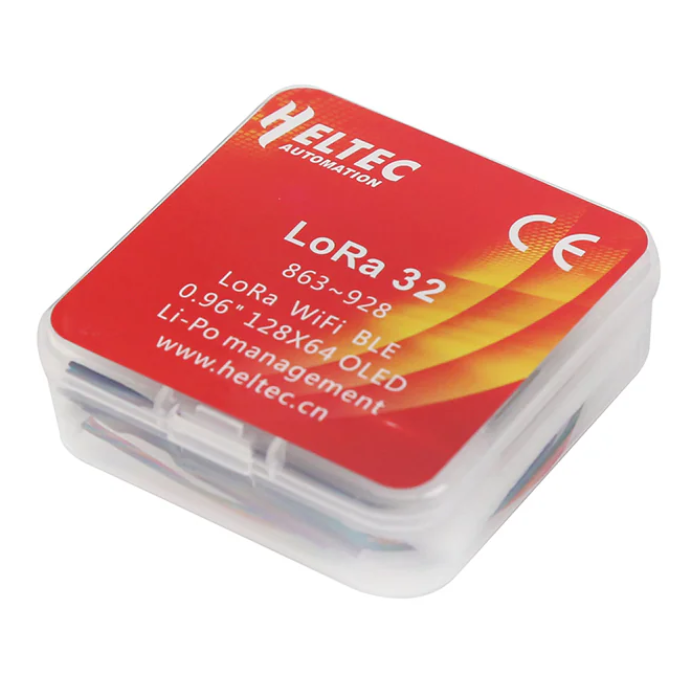

• 1 x ESP32 LoRa with Display

Specifications
