Description

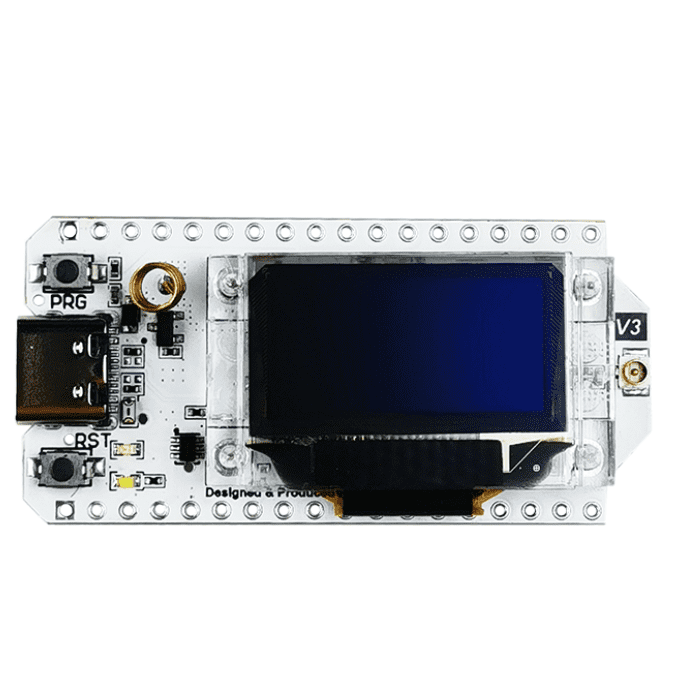

ESP32 LoRa with 0.96 Inch Blue OLED Display ( Type C- Connector)
The ESP32 LoRa SX1278 is a next-generation IoT development board made for smooth connectivity and long-range, low-power communication. The Tensilica LX6 dual-core ESP32 processor (240MHz, 520 KB SRAM, 600 DMIPS) powers it. The esp32 wifi module for Arduino has dual-mode Bluetooth (Classic + BLE) and Wi-Fi (802.11 b/g/n HT40) for fast, flexible networking.
This esp32 lora module provides ultra-long-range transmission up to 2.6km with an inbuilt SX1278 LoRa modem, 433MHz, -148dBm sensitivity, and +20dBm output power, guaranteeing great dependability for distant Internet of Things applications.
It has a CP2102 USB-to-serial chip, a 0.96-inch OLED display, 32MB Flash, and lithium battery charging. It was designed with efficiency and innovation in mind. This ESP32 with an OLED display is completely compatible with Arduino, enabling developers to design intelligent, scalable solutions for the Internet of Things' future.
Check out our collection of LoRa Modules!
Features:
- Uses Lexin ESP32 as main controller and SX1278 as wireless communication module.
- Comes with an OLED display.
- Supports Bluetooth and WiFi connectivity.
- ESP32 chip is based on Tensilica Xtensa LX6 dual-core microprocessor with operating frequency up to 433MHz.
- High sensitivity of about -148dBm.
- Power output of +20 dBm.
- Operates on 433MHz-510MHz frequency range.
- Suitable for remote modem applications that require long-range wireless communication.

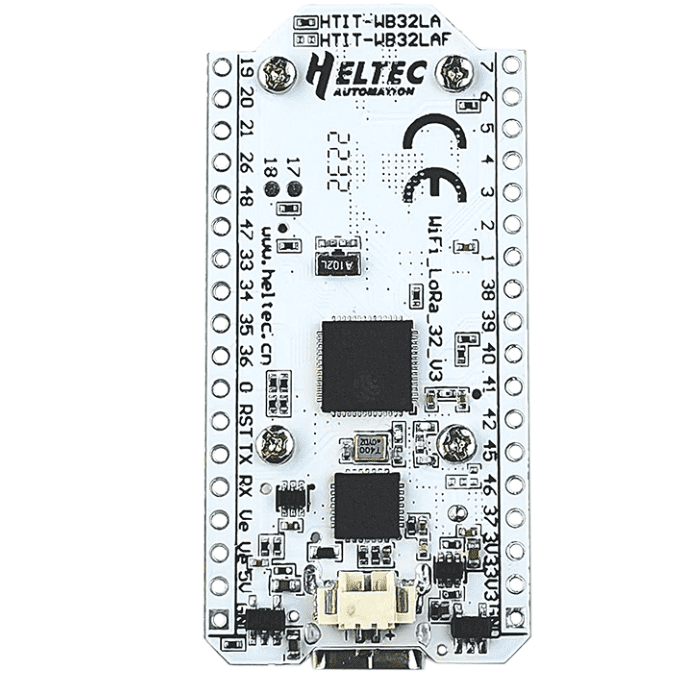

ESP32 LoRa Pinout:
Applications
- Smart industrial devices, including Programmable Logic Controllers (PLCs)
- Smart medical devices, including wearable health monitors.
- Smart energy devices, including HVAC and thermostats.
- Smart security devices, including surveillance cameras and smart locks.

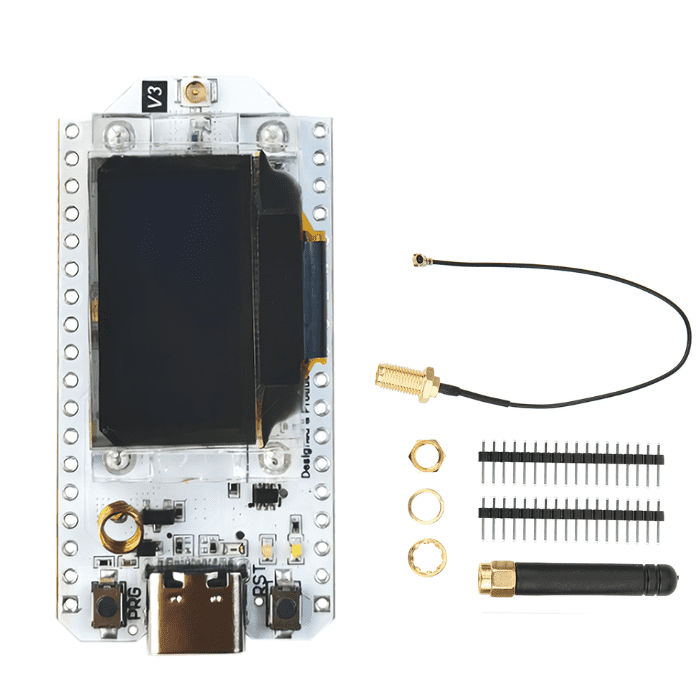

PACKAGE INCLUDES:
- 1 x ESP32 LoRa SX1278 0.96 Inch Blue OLED Display BT WiFi Module
- 1 x Antenna(16 cm)
- 2 x 1*18 Pins Burg connectors(Straight)
SPECIFICATIONS:
| Operating Voltage (VDC) |
3.3 to 7 |
| Operating Temperature (°C) |
-40 to 90 |
| Display Size (inch) |
0.96 |
| Dimension(LxWxH) |
52 x 25 x 8mm |
| Weight |
25gm |
