Description

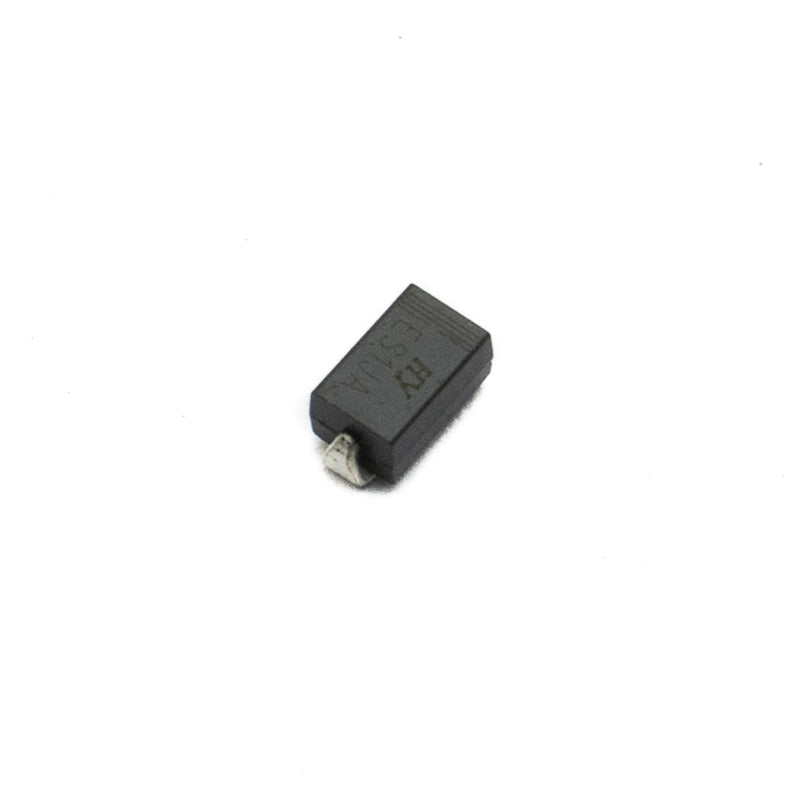

The diode is a device that allows current flow through only one direction. That is the current should always flow from the anode to the cathode. The cathode terminal can be identified by using a grey bar as shown in the picture above. For ES1JA Diode, the maximum current carrying capacity is 1A it withstands peaks up to 30A. Hence we can use this in circuits that are designed for less than 1A. The reverse current is 5uA which is negligible.
Features
- Fast switching for high-efficiency
- Low cost
- Low reverse leakage current
- High current capability
- Low forward voltage drop
- Meet UL flammability classification 94V-0
Specification
| Forward Voltage | 1.7V (6.0A) |
| Peak Reverse Voltage | 600V |
| RMS Reverse Voltage | 420V |
| Average Forward Current | 1A |
| Non-Repetitive Peak Forward Surge Current | 30A |
| Operating Temperature Range | -55 to + 150°C |
| Country of Origin | China |
