Description
It is an ensee 10mm blue color LED type with a water clear lens. It glow with blue color and it is a long leg led. It is has a large lens that produces a wide angle beam and is great for custom installations that needs an extremely bright and wide-angle light. It is Ideal for backlight and indicator. This is a very basic 10 mm LED with a water clear lens. It has a typical forward voltage of 2.8- 3.4V. When we set multimeter in diode and connect the black knob to anode and cathode, it glow with blue color. It is water clear lens so color is bright. This is a two-lead semiconductor light source that emits lights when activated. When an appropriate voltage is applied to the LED terminal, the electrons recombine with the electron holes within the device and releases energy in the form of photons and thus, the color of the LED is determined by the energy bandgap of the semiconductor.
Features:
- Does not require a current limit resistor.
- Suitable for through-hole mounting
- Cathode identified as the shorter lead
- Water clear lens
- Excellent weather resistance
- Long operational life
- Very high luminosity
Applications:
- Used for indication purposes
- Used for Toys & Games
- Used for Lighting Products
- Used for Electronic project.
Specifications
| Model | Ensee |
| Type | 10mm Round Blue/WC/LL |
| Led diameter | 10mm |
| Glow color | Blue |
| Lens type | Water Clear |
| LED Length | Long leg |
| Forward voltage | 2.8-3.4V |
| Intensity | 6000-8000 mcd |
| Wavelength | 458-460 nm |

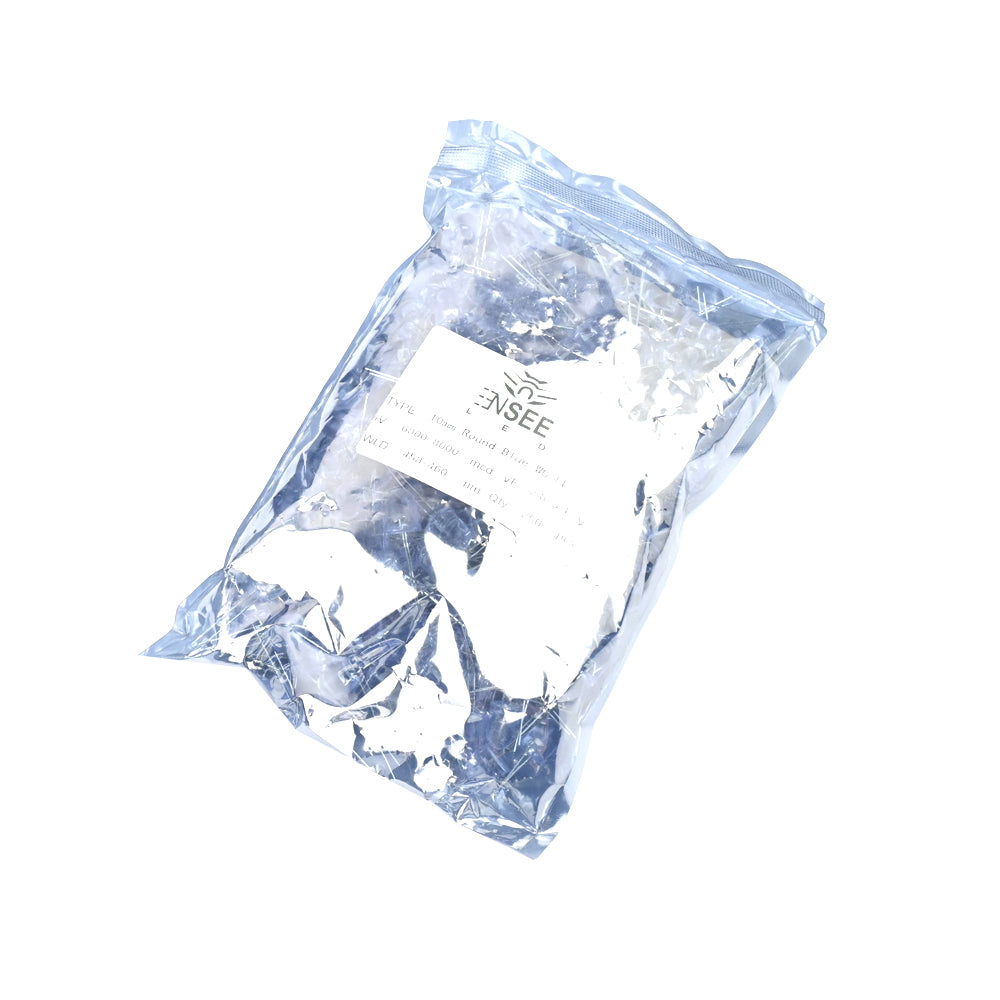

| Quantity | 250 |
| Country of Origin | China |
