Electronic 10 Kg Weighing Weight Scale Pressure Sensor Load For Electronic Weighing Scale

Description:

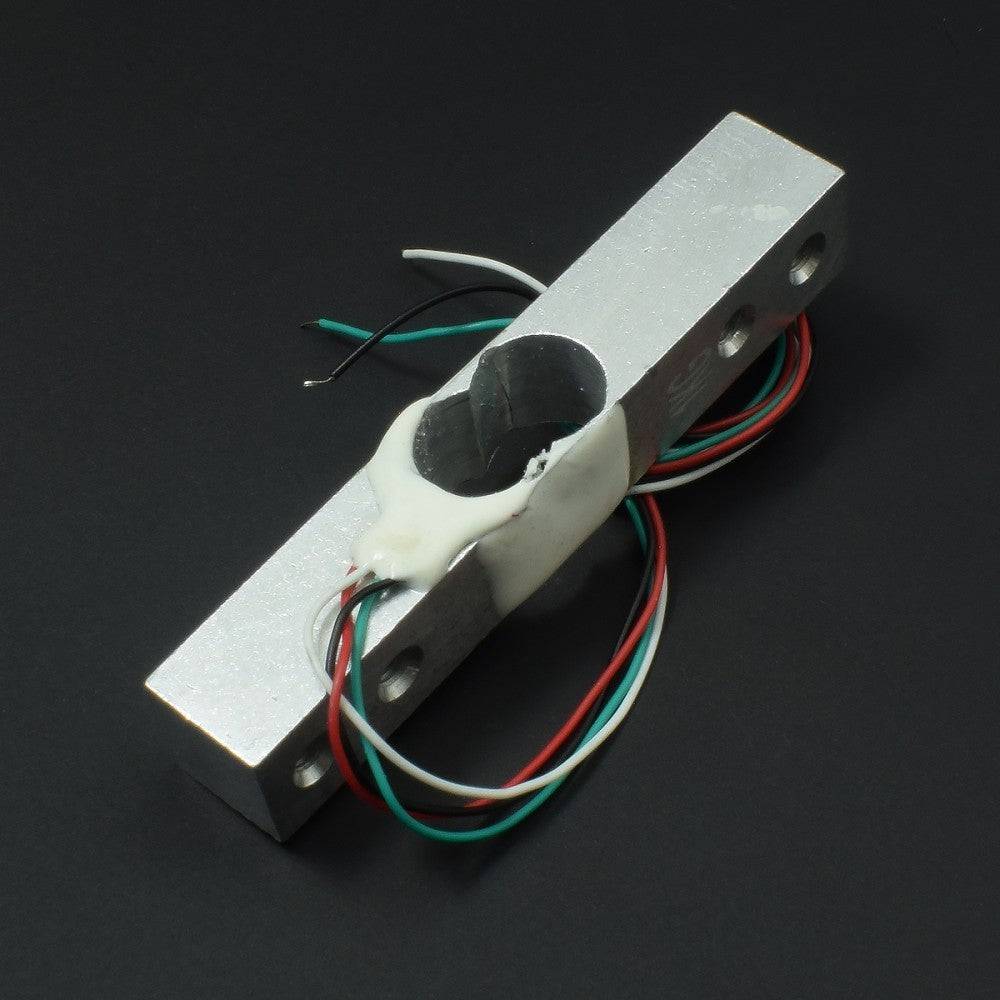

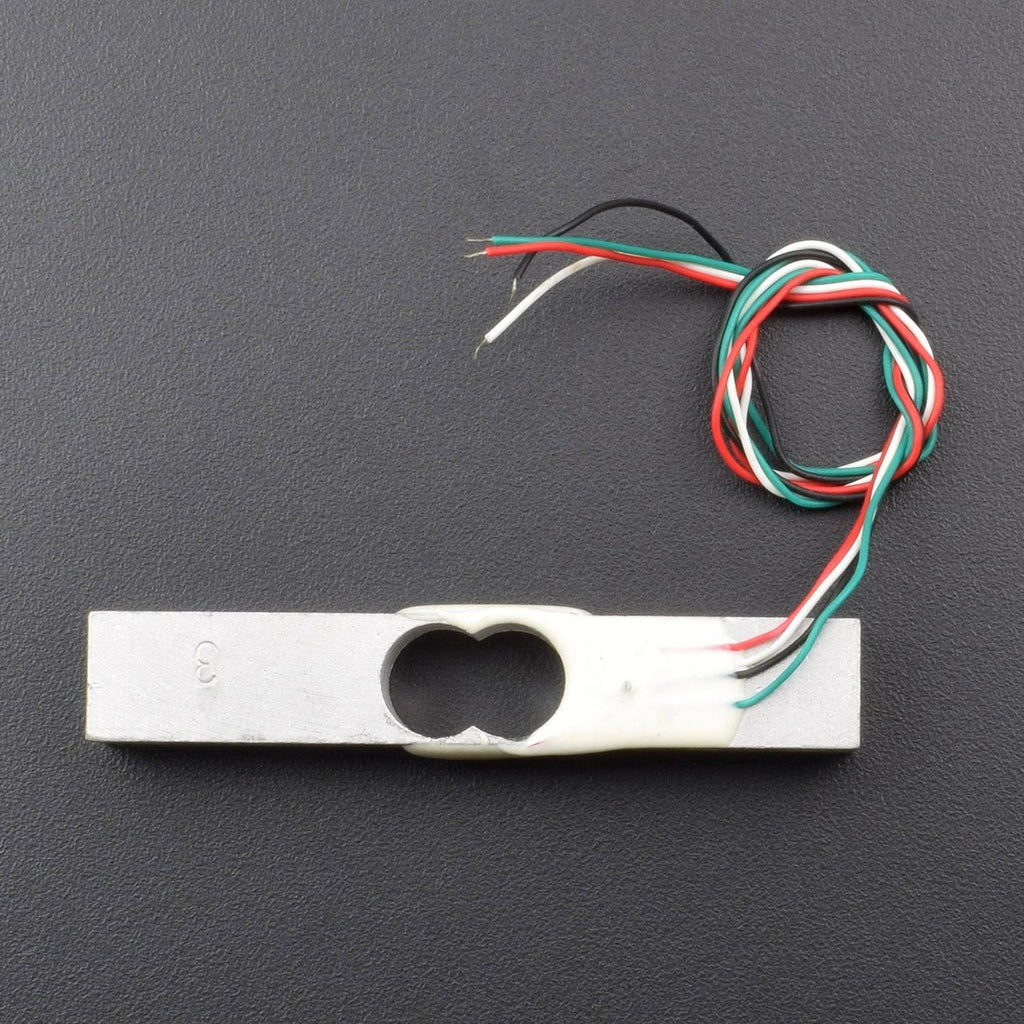

This straight bar load cell (sometimes called a strain gauge) can translate up to 10 kg of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface. This straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 1KG of weight. It has Four lead wires which can be connected to HX711 A/D Pressure Sensor. It is easy to use with driving voltage 5-10V and produce the output voltage as per the force changes over it. Installation of the Sensor is also the simple task, it needs to fix one end through the screw hole and the other end left floating state, according to the label indicates the direction of the gravitational force exerted particular attention must not directly push the white plastic cover part of the sensor in order to avoid damage. An electronic weighing machine uses a load cell to measure the load or pressure produced by the load, here most load cells follow the method of the strain gauge, Which converts the pressure (force) into an electrical signal, these load cells have four strain gauges that are hooked up in a Wheatstone bridge formation.

Specifications:

• Nominal load: 10 kg
• Nominal output: 1.0 ± 0.15mv / V
• Non-linear: 0.03% fs
• Hysteresis: 0.03 % fs
• Repeatability: 0.03% fs
• Monster (5 minutes): 0.05% fs
• Output temperature effect: 0.003% fs / ° C
• Temperature effect at zero: 0.02% fs / ° C
• Zero equilibrium: ± 0.1000 mV / V
• Input impedance: 1066 ± 20% Ω
• Output impedance: 1000 ± 10% Ω
• Resistance insulation: 2000 MΩ
• Operating temperature range: -20 ~ 65 ° C
• Recommended operating voltage: 5 VDC
• Maximum operating voltage: 10 Vdc
• Material: Aluminum
• Protection: IP65
• Cable: 0.8 135 cm
• Table Size: 160 mm

Applications:

• Electronic platform scale

• Digital scale

• Parcel post scale

• Electronic balance

Package Included:

1 x Electronic 10 Kg Weighing Weight Scale Pressure Sensor Load For Electronic Weighing Scale
