Description

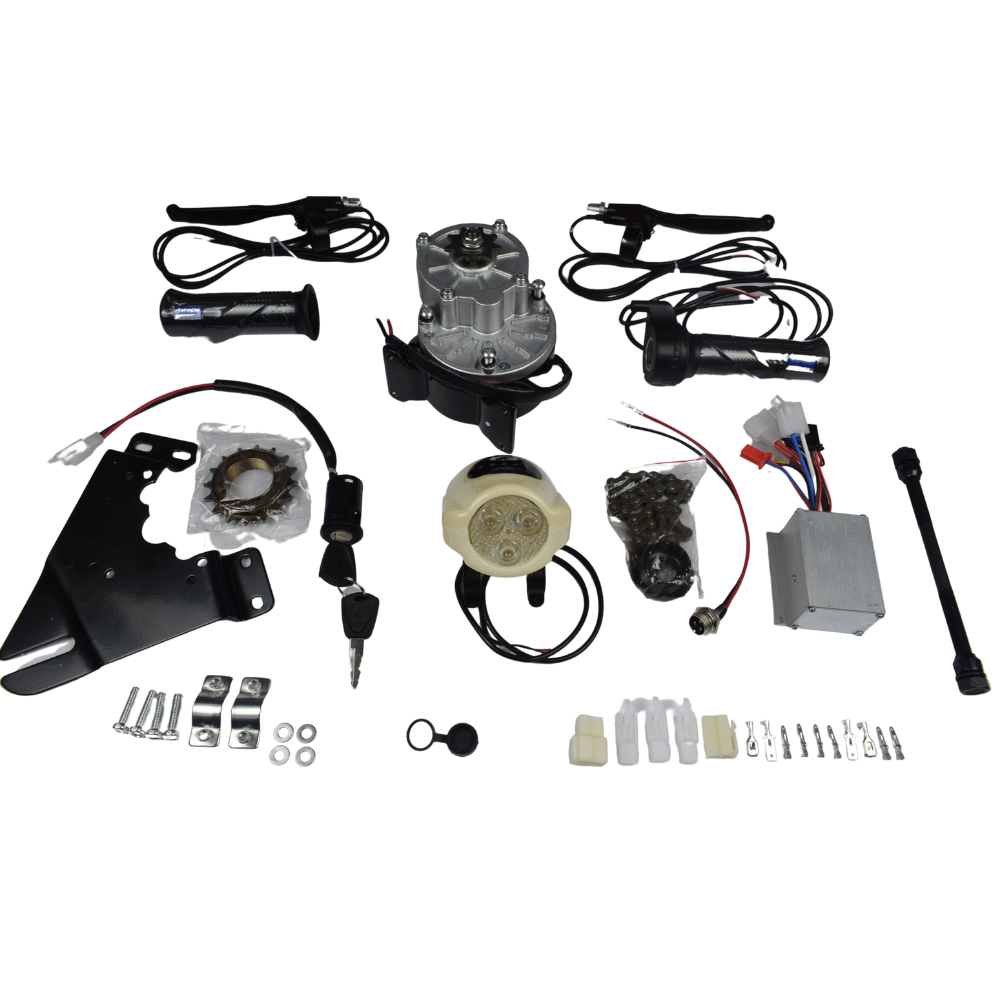

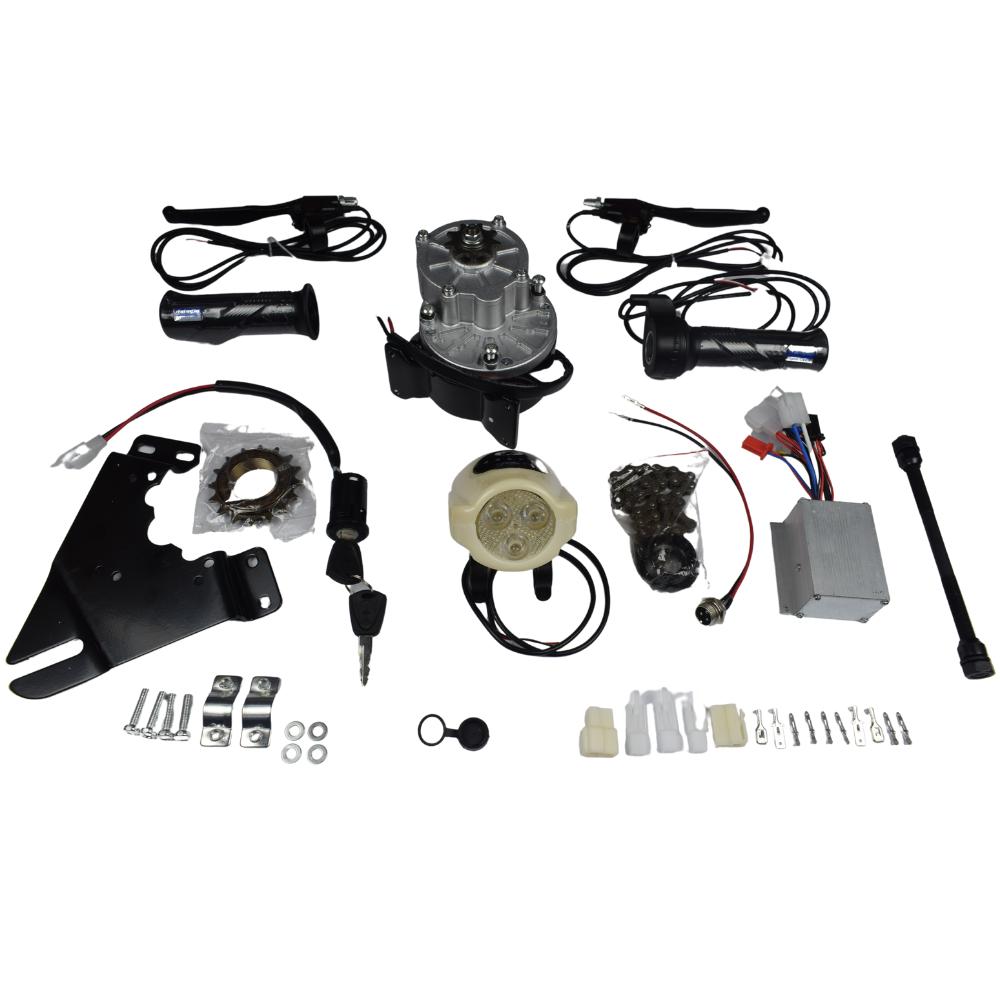

This DIY Electric Bicycle Kit includes an e-bike motor, a motor controller, a twist throttle gear (accelerator), a headlight, a brake lever, and a power lock. This combination was created with compatibility in mind, so you won't have to go through the trouble of selecting the parts separately for your project. This well-known reduction motor is simply the most widely utilized motor for Scooters, Bikes, and Quads in the market. It is typically seen in higher-quality quads and scooters. They are quite strong for their size and incredibly dependable.
Items included as below
- 1pcs x DC 24V 250W motor
- 1pcs x Motor controller
- 1pcs x Chain
- Freewheel adapter and freewheel
- 1pcs x Mounting plate with bolts
- 1pcs x Throttle handle
- Brake lever
- 1pcs x Head light with horn
- 1pcs lock
Controller Specifications
| Rated Voltage | 24V |
| Maximum Peak Current | 21A |
| Rated Power | 250W |
| Maximum continuous Current | 15A |
| Level Brake | High / low |
| Under Voltage Protection | 20.5V |
| Throttle | 1-4V |
| Includes attachments for | Motor, Accelerator, Brake, Battery, Battery charging, Brake light, Power lock |
| Size | 74x60x35.5mm |
Motor Specifications
| Rated Voltage of Motor | 24V |
| Rated Current | 13.7A |
| Rated Power of Motor | 250W |
| Efficiency | 76%. |
| Motor's Model | MY1016Z2 |
| Reduction Ratio | 9.78 |
| Rated Speed | 3300rpm |
| Size | 18x3.5x2.2mm |
| Country of Origin | China |
