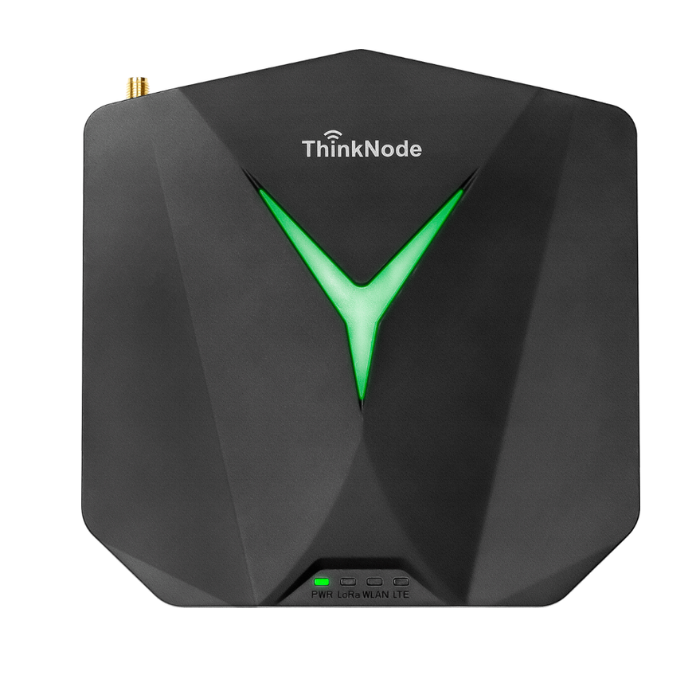

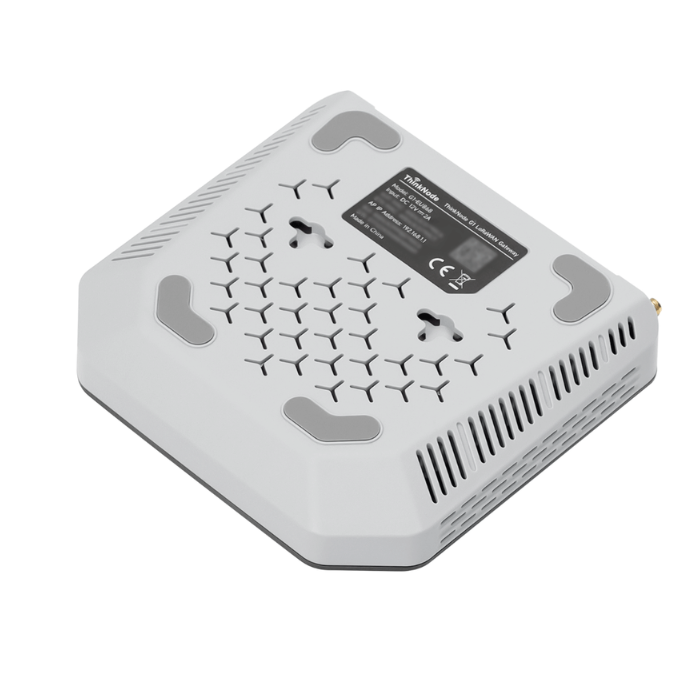

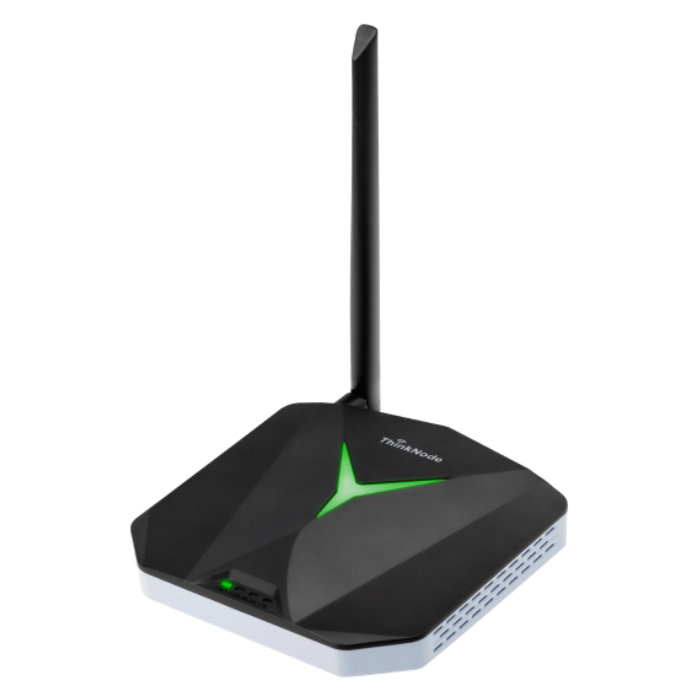

ELECROW ThinkNode G1 868MHz 8-Channel LoRaWAN Gateway with SX1302 Chip
Struggling with indoor positioning issues? The ThinkNode G1 is the solution!
The Elecrow ThinkNode G1 is a state-of-the-art LoRaWAN indoor gateway that connects seamlessly via WiFi, Bluetooth, or Ethernet, supporting 8-channel transmission. Using LoRa wireless technology, it provides long-range, low-rate data transmission for reliable communication.
With an advanced Semtech packet forwarder, SX1302 LoRa concentrator, and dual SX1250 chips, the G1 ensures efficient data processing. It supports global ISM frequency bands (815MHz to 960MHz) and offers a 5-10 km LoRaWAN signal range.
Ideal for smart buildings, automation, logistics, smart metering, agriculture, and more, the G1 ensures stable connectivity and is the perfect solution for building robust LoRaWAN networks. Exclusively designed by Elecrow.
Features
- Broad Network Compatibility
Supports multiple LoRaWAN network servers, including The Things Network (TTN), ChirpStack, and more, offering flexible options for network integration with advanced packet forwarding technology. - Integrated Gateway Server

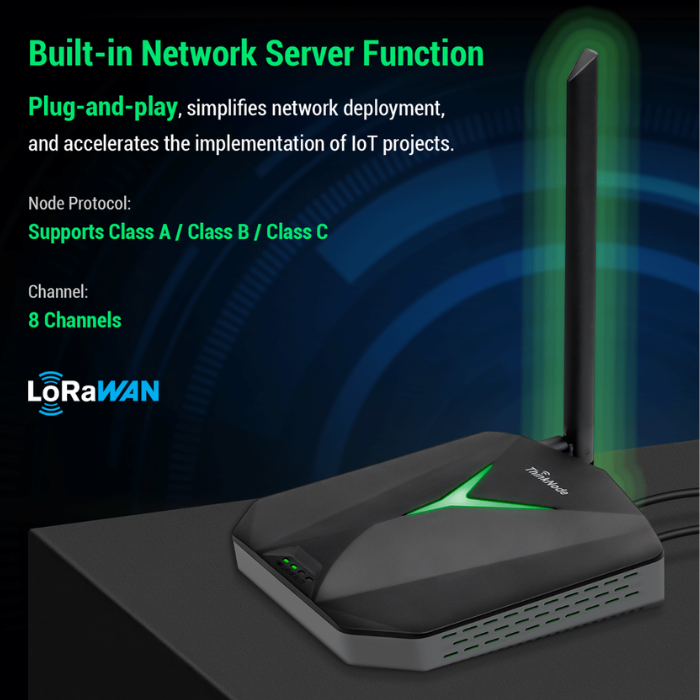

Features a plug-and-play design, simplifying network setup and speeding up IoT project deployment. - Wide Signal Coverage

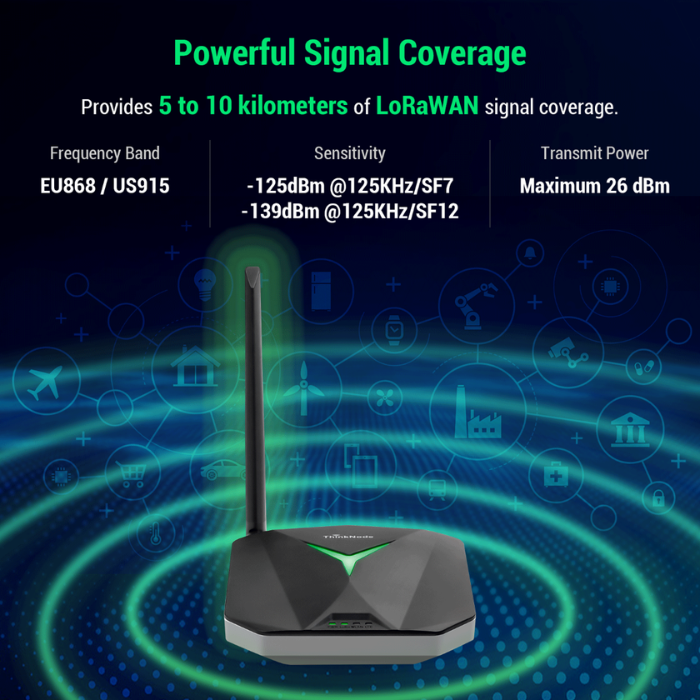

Delivers 5 to 10 km of LoRaWAN signal range, ensuring reliable and efficient data transmission over long distances. - High-Performance Hardware
Powered by the MediaTek MT7628 processor and Semtech SX1302 baseband chip, ensuring robust and stable data handling. - Flexible Connectivity Options

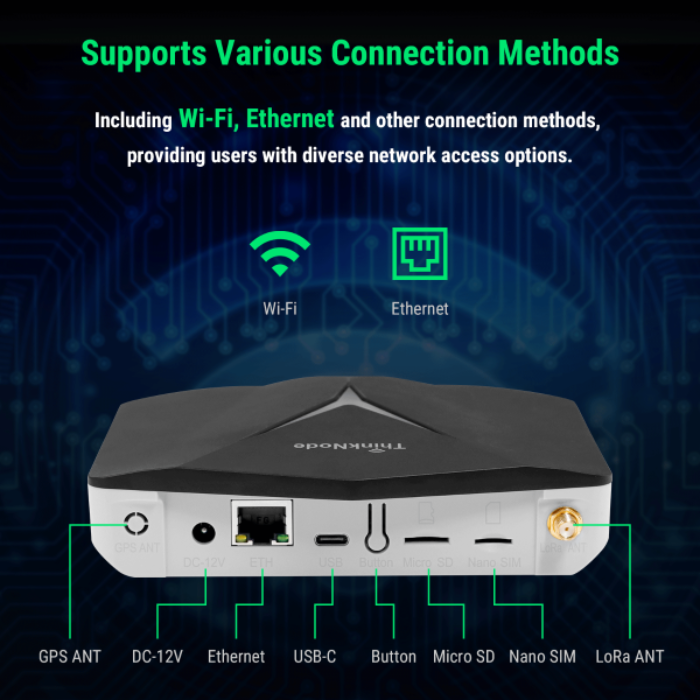

Supports Wi-Fi, Ethernet, and other connection methods, providing a range of network access possibilities. - Easy-to-Use Management Tools
Equipped with professional management tools and cloud services, enabling effortless configuration and quick deployment through an intuitive Web interface for an enhanced user experience.

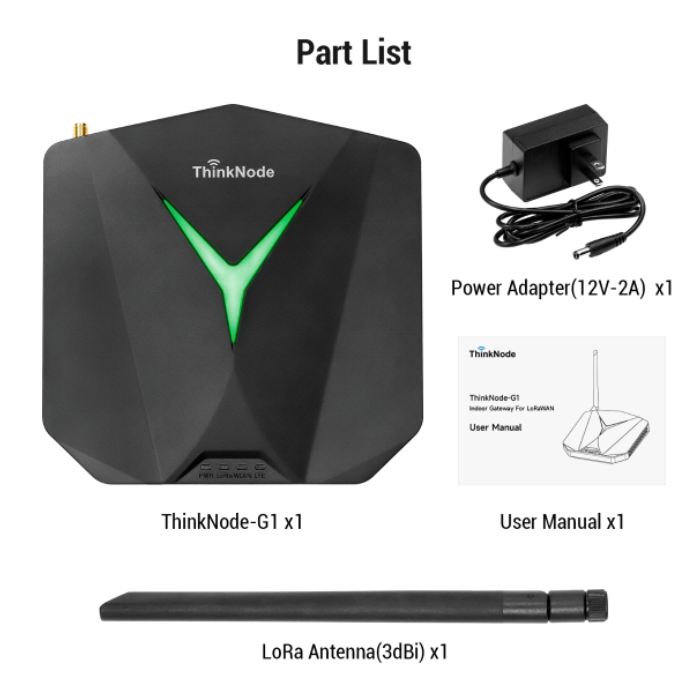

Package Includes
1x ThinkNode G1 LoRaWAN Indoor Gateway
1x Power adapter(12V-2A)
1x LoRa Antenna(3dBi)
1x User Manual
Specification
| Specification | Details |
|---|---|
| Processor | MT7628N (MIPS24KEc@580MHz CPU) |
| System Memory | 128 MB DDR2 |
| Storage | 32 MB Nor Flash |
| Configuration Software | WEB |
| Communication | |
| Wi-Fi | Supports IEEE 802.11 b/g/n wireless standards, built-in antenna |
| Wired | Supports IEEE 802.3, IEEE 802.3u wired standards, RJ45 (10M/100M) |
| Bluetooth-Compatible | Bluetooth dual-mode (BR/EDR+BLE) 5.0, built-in ceramic antenna |
| LoRaWAN | |
| Baseband Chip | SX1302, using LR1302 baseband module |
| Channel | 8 Channels |
| Node Protocol | Supports Class A/Class B/Class C |
| Frequency Band | EU868/US915 |
| Sensitivity | -125dBm @125KHz/SF7, -139dBm @125KHz/SF12 |
| Transmit Power | Maximum 26 dBm |
| Antenna | 1. Rubber stick antenna (3dBi gain, 50 ohm), External antenna (optional) |

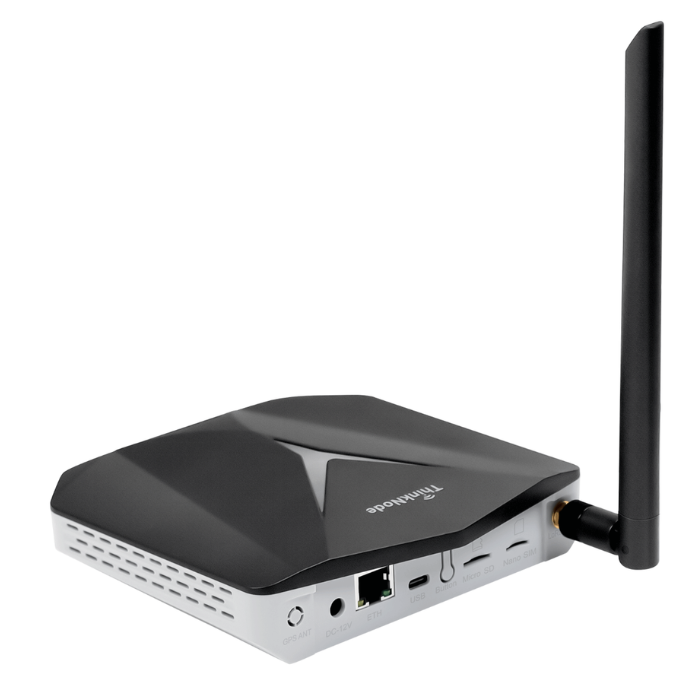

| Reserve Interface | |
| DC Socket | Power input, DC 12V - 2A |
| Ethernet | RJ45 (10M / 100M) |
| LoRa Antenna Socket | RP-SMA female socket |
| GPS Antenna Socket | RP-SMA female socket |
| Type-C Interface | Used for background control, firmware burning, or debugging |
| Micro SD Card Slot | YES |
| Nano SIM Card Slot | YES |
| Reserve Indicator Light | Device status light (PWR, 4G, WLAN, LoRa) |
| Button | Reset Button |
| Size | 140*140*38mm |
| Case Material | ABS+PC (Case), PC frosted (light guide) |
| Power Input | 12V-2A |
| Operating Temperature | -20℃~55℃ |
| Storage Temperature | -30℃~70℃ |
| Dimensions (LxWxH) | 24 x 18.9 x 6.8 cms |
| Weight | 471 |
