Description
ELECROW LR1262 Node Board LoRaWan Node Module for Long Range Communication (868Mhz/915Mhz) Frenquency:868 Mhz

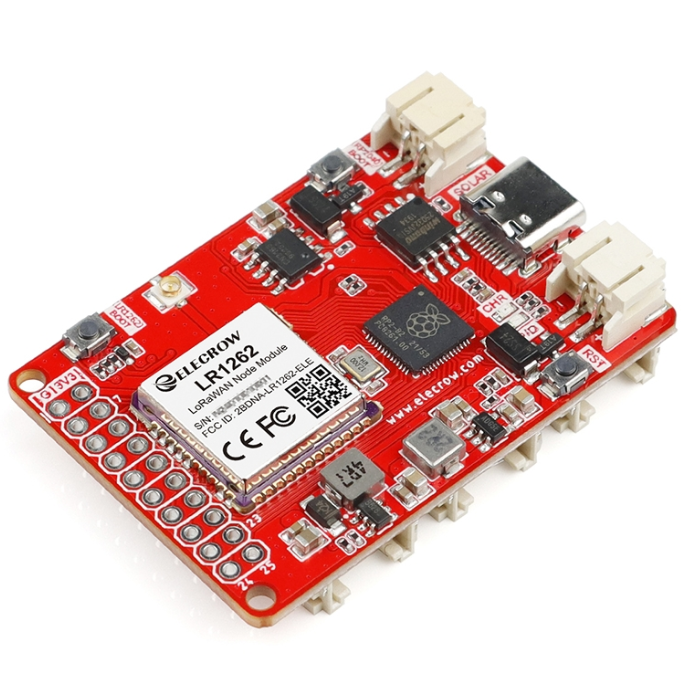

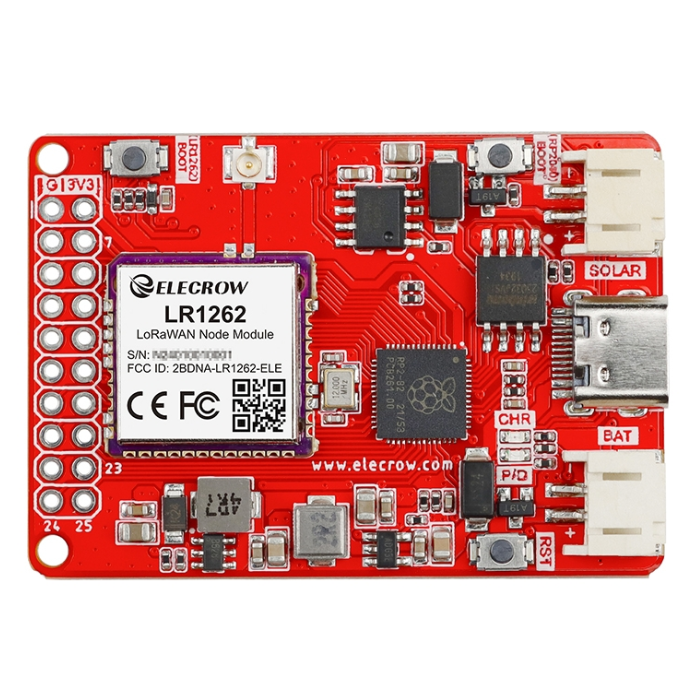

Experience the cutting-edge technology with the LR1262 Node Board, featuring the powerful RP2040 controller and LR1262 module for seamless LoRa transmission capabilities.
This module supports both LoRa point-to-point transparent transmission and integration with the LoRaWAN network, providing versatile connectivity options. By combining it with Crowtail sensor modules (Ax2/Dx2/IICx1/UARTx1), you can effortlessly create a robust Lora node for various applications.
Designed for outdoor use, the LR1262 Node Board boasts a built-in lithium battery charging and discharging circuit, along with solar panel charging compatibility, offering hassle-free setup and operation in outdoor environments.
With six interfaces compatible with commonly used sensors like temperature, humidity, air quality, and PM2.5, this module enables quick assembly of a Lora weather station. It is also ideal for projects in smart homes, smart factories, and smart logistics.
The LR1262 Node Board comes equipped with a 20-pin header and a double-row pin header in the accessories, giving you the flexibility to choose whether to solder it or not, providing you with a wide range of development options and customization possibilities.
Experience the convenience, versatility, and high performance of the LR1262 Node Board for your next tech project.
Features:
- Uses RP2040 as the main controller, with two 32-bit ARM Cortex M0+ processor cores (dual-core) ,and provides more powerful performance
- Integrates the LR1262 module, supports frequency band: 803MHZ-930MHZ
- Abundant external interface resources, compatible with 150+ kinds of Crowtail series modules
- Supports both Lora point-to-point transparent transmission and the use of LoraWAN network
- Compatible with Arduino/MicroPython, easy to carry out different projects

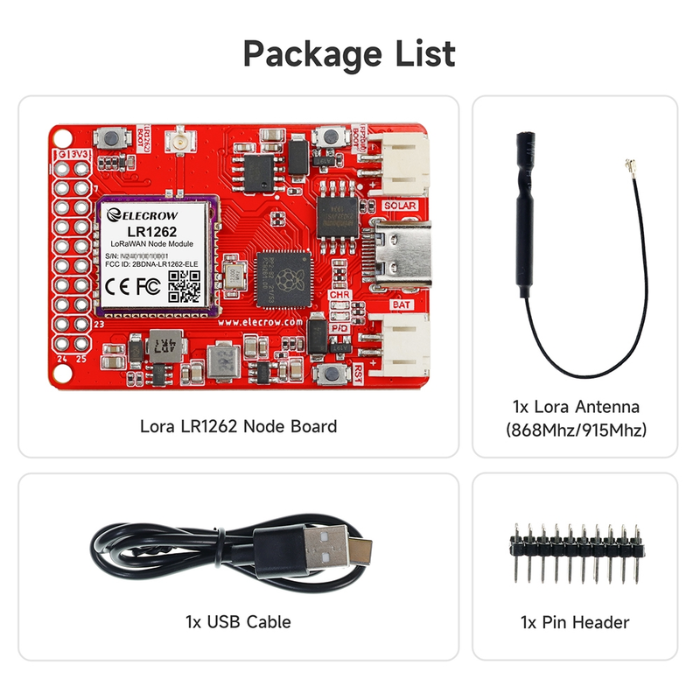

Package Includes:
- 1x LR1262 Node Board

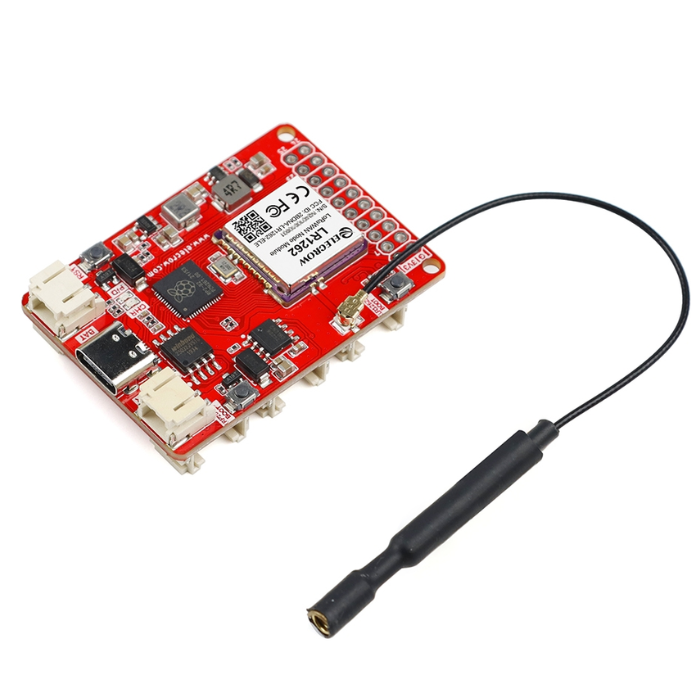

- 1x Lora Antenna (868Mhz/915Mhz)
- 1x Pin Header
- 1x USB Cable
Specifications:
|
Main Chip |
Raspberry Pi chip RP2040, built-in 264KB SRAM, onboard 4MB Flash |
|
Processor |
Dual Core Arm Cortex-M0+ @ 133MHz |
|
LR1262 Supports frequency band |
803MHZ-930MHZ |
|
LR1262 Support Interface |
IPEX first generation interface |
|
Development environment |
Arduino/Micropython |
|
Interface |

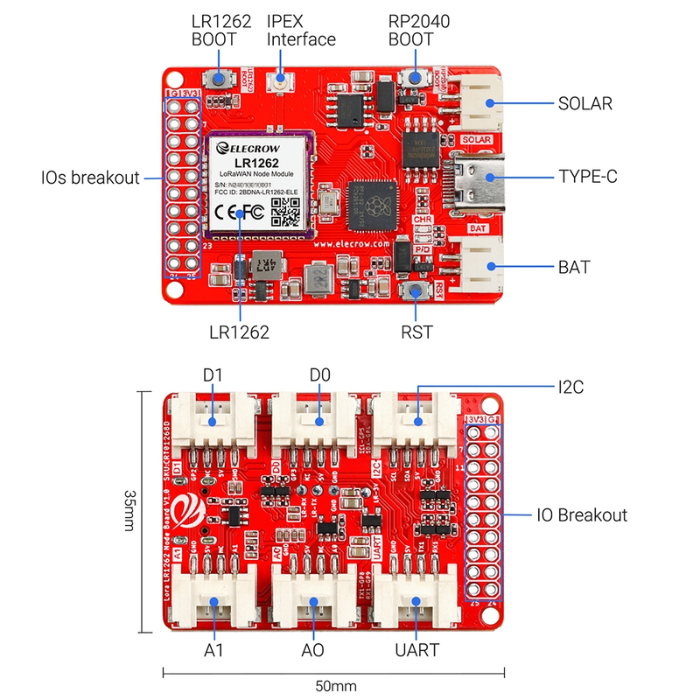

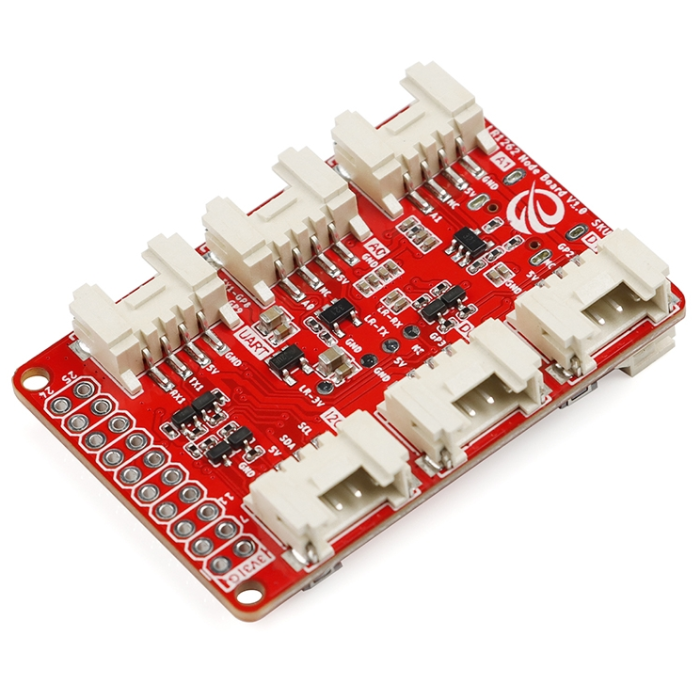

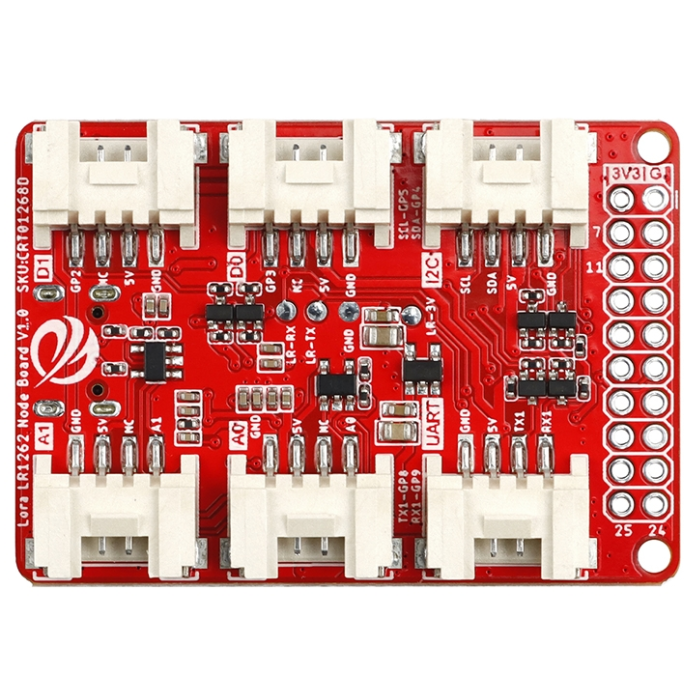

1x USB-C interface, 6x 5V Crowtail interfaces (2x analog interfaces, 2xdigital interfaces, 1xUART interfaces, 1xIIC interfaces) 2x10 universal GPIO interfaces 1xBattery Interface 1xSolar Interface |
|
Working input voltage |
USB 5V-1A |
|
Dimensions |
35mm(L)x50mm(W) |
