Description

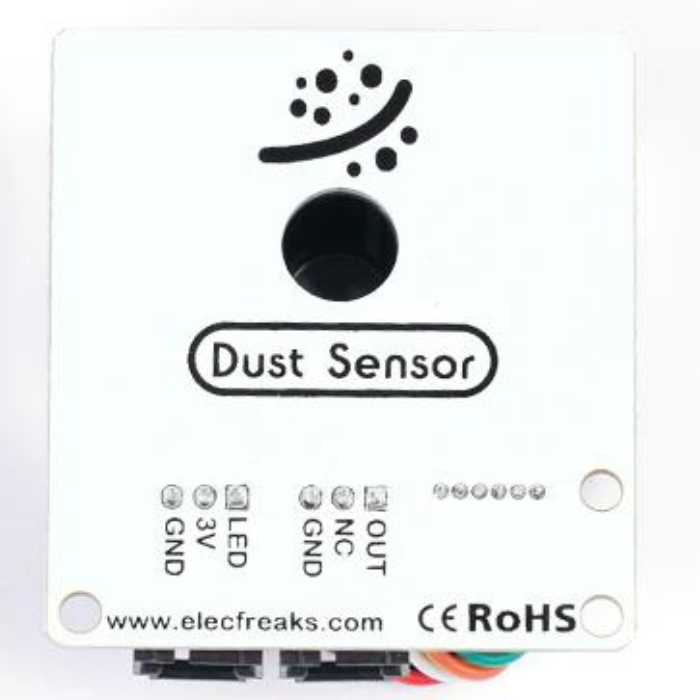

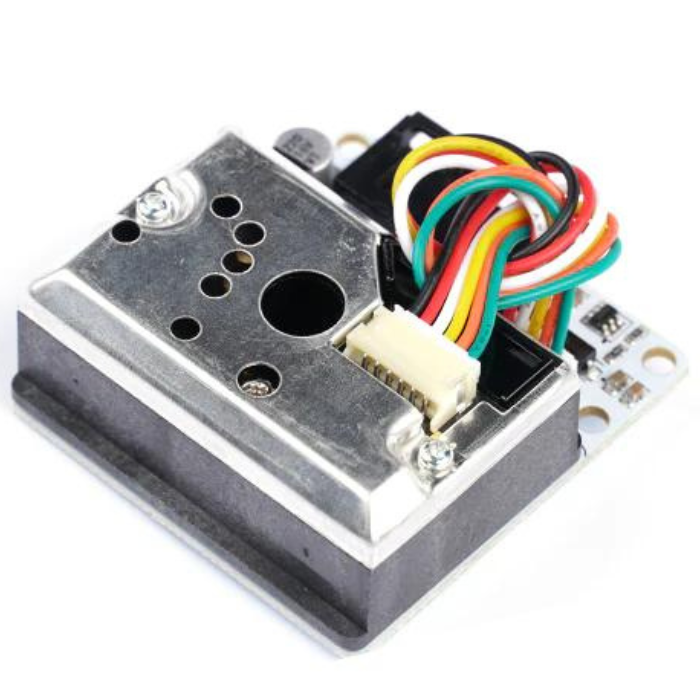

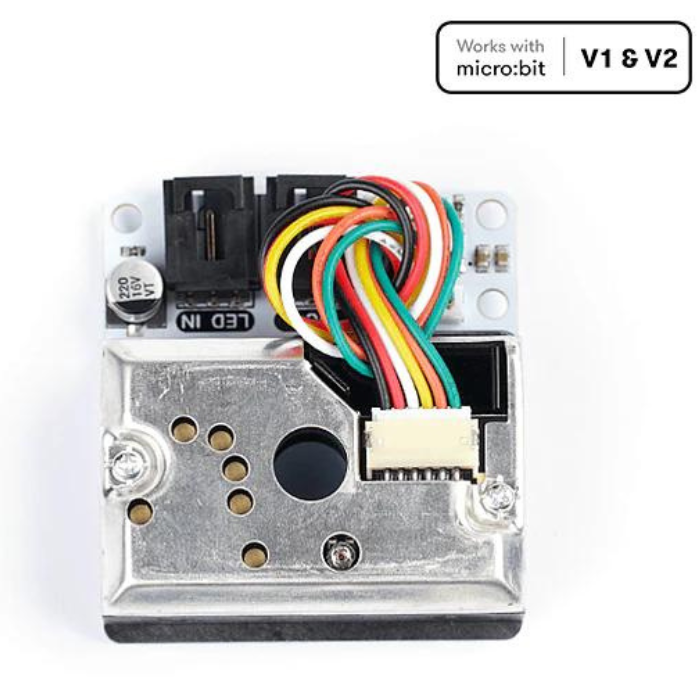

ELECFREAKS Octopus Dust Sensor (Sharp GP2Y1010AU0F)
Discover the ultimate solution for accurate dust concentration monitoring with the ELECFREAKS Octopus Dust Sensor. This module features the renowned Sharp GP2Y1010AU0F optical dust sensor, ensuring precise and reliable results. Whether you need to measure dust levels in the air or enhance air quality, this sensor delivers exceptional performance.
With its low power consumption and analog output, the ELECFREAKS Octopus Dust Sensor provides a seamless monitoring experience. The built-in voltage boosting circuit allows for a wide input voltage range, enhancing its compatibility with various setups. Its longevity, lasting up to 5 years, ensures prolonged usage and consistent results.
Applications are endless, from air purifiers to air quality monitors, making this sensor an invaluable tool in improving environmental conditions. Crafted with quality in mind, the sensor boasts a compact design and easy installation.
Get ahead in maintaining a cleaner environment and healthier air with the ELECFREAKS Octopus Dust Sensor. Designed to be efficient, reliable, and durable, this sensor module is a must-have for any setup.
Features:
- Low power consumption;
- Analog output;
- Linear relatioship between voltage and dust density;
- Built-in voltage boosting circuit,suitable for input voltage with wider range.
Applications :
- Detect dust concentration in the air.
- Air purifier, air quality monitor.
Package Includes:
- 1 x ELECFREAKS Octopus Dust Sensor (Sharp GP2Y1010AU0F)
Specifications:
| Sensitivity | 0.5V/(100μg/m3) |
| Effective Range | 500μg/m3 |
| Working Voltage | 2.5V~5.5V |
| Working Current | 20mA(max) |
| Working Temperature | -10℃~65℃ |
| Storage Temperature | -20℃~80℃ |
| Life Span | 5 years |
| Product Dimension | 63.2mm×41.3mm×21.1mm |
| Fixed Hole Size | 2.0mm |
| Vent Hole Size | 9.0mm |
