Description
These devices provide exceptional value by combining powerful analogue and upgraded high-speed connectivity peripherals in tiny packages‚ making them excellent for space-constrained applications. The EFM8BB2 series is also ideal for embedded applications‚ thanks to its efficient 8051 core‚ increased pulse-width modulation‚ and precision analogue.
Features:
- Its used Motor control ‚Consumer electronics ‚Sensor controllers
- Pipelined 8-bit C8051 core with 50 MHz maximum operating frequency
- Up to 22 multifunction‚ 5 V tolerant I/O pins
- One 12-bit Analog to Digital converter (ADC)
- Two Low-current analog comparators with build-in DAC as reference input
- Integrated temperature sensor
| Specifications | |
|---|---|
| Type | Microcontroller |
| Model | EFM8BB21F16G-C |
| Brand | Silicon Labs |
| Clock Frequency | 50MHz |
| No Of Bits | 8 |
| Mounting Type | SMD |

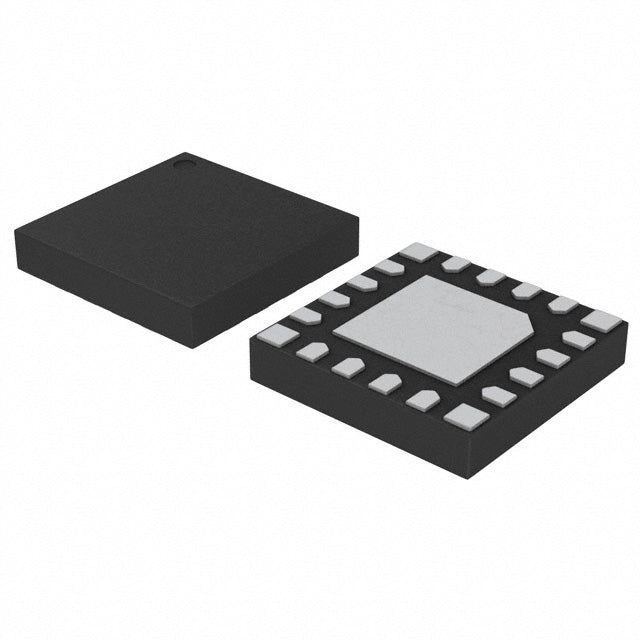

| Package | 20-UFQFN Exposed Pad |
| Memory Size | 16KB |
| Operating Temperature Range | -40 to 85 Degree Centigrade |
