Description
| Operating Voltage | 3.3V |
| Output Type | Analog |
| Cable length | 1 meter |
| PCB Size (mm) | 36*30*18 |
Description:

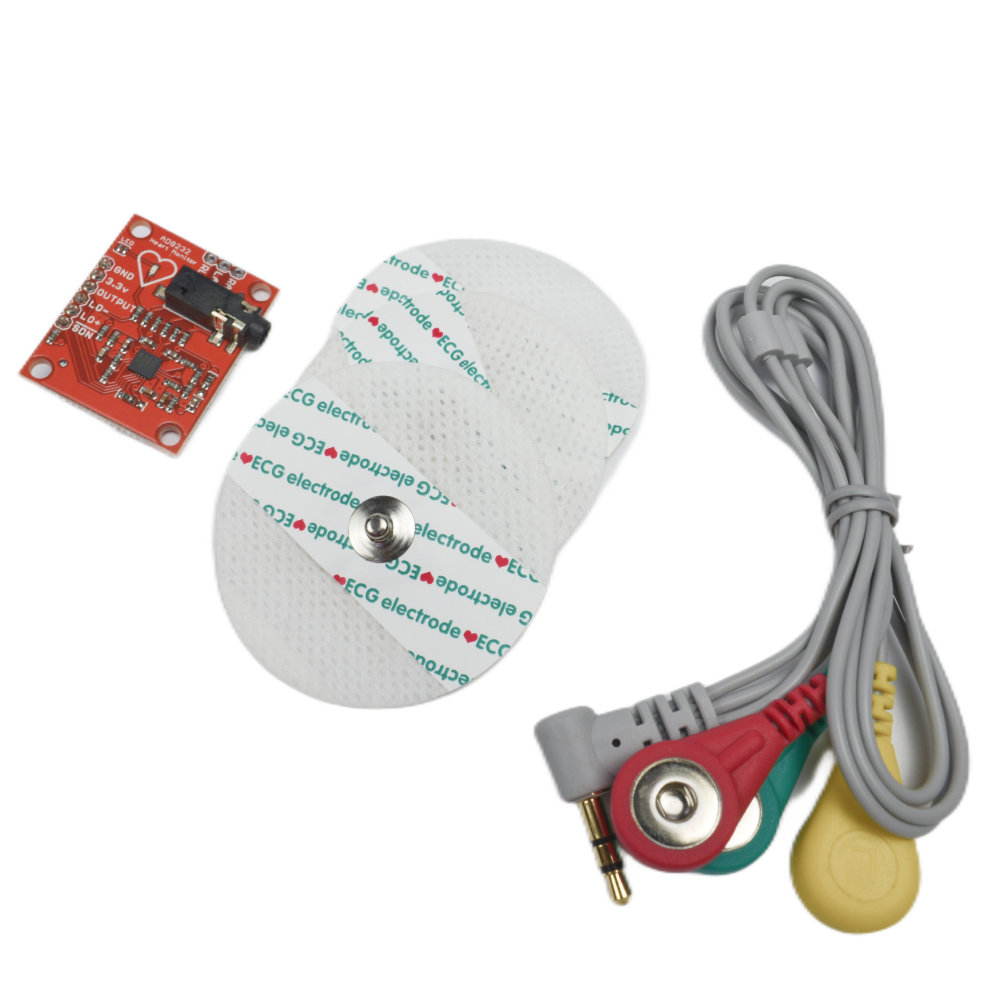

- The Heart Rate Monitor Kit consists of

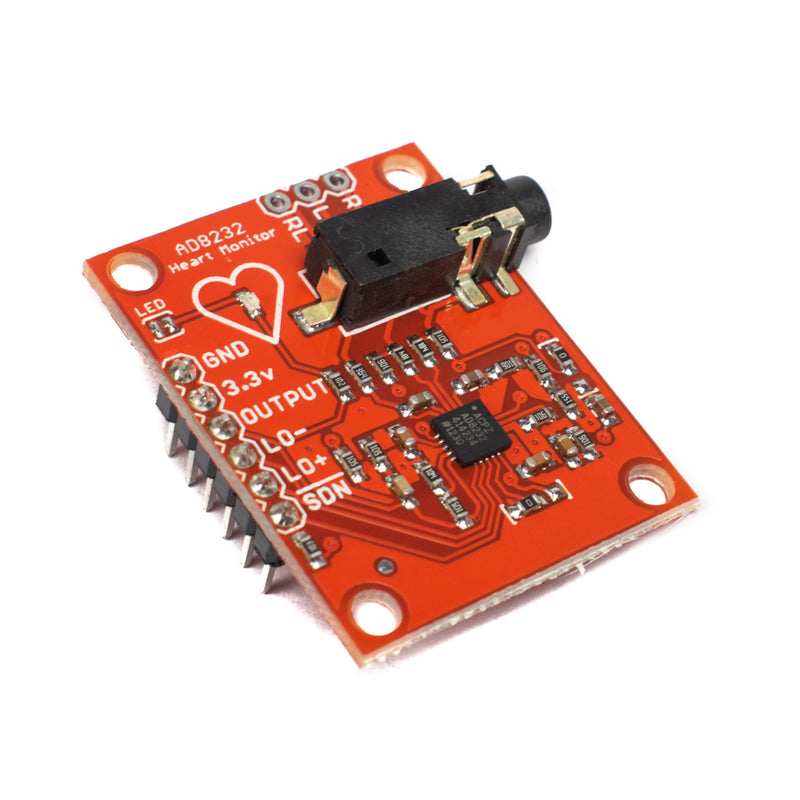

- 1 x Ecg module AD8232 heart ECG monitoring sensor module.

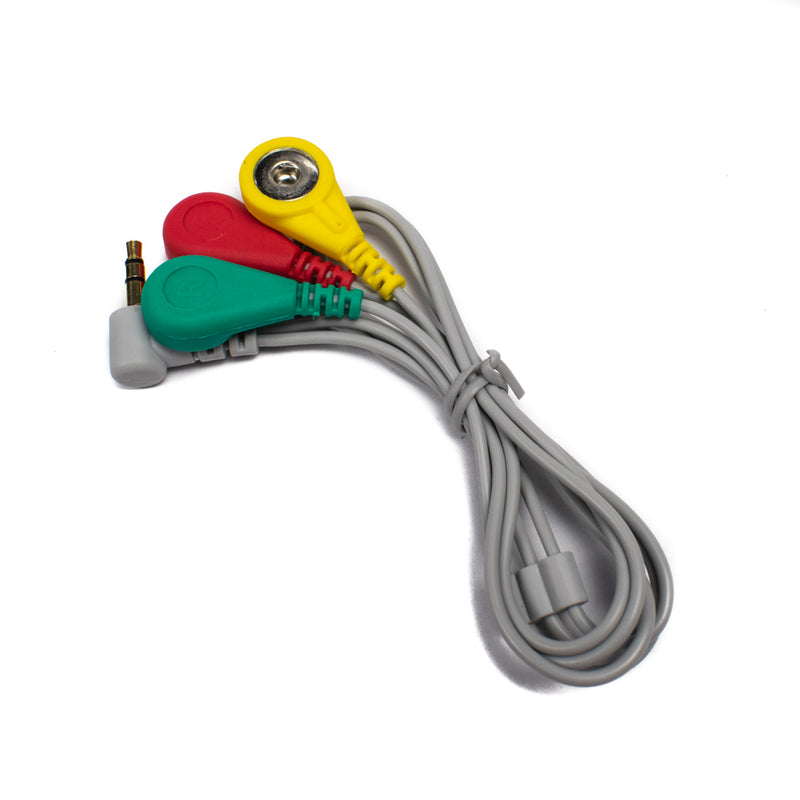

- 1 x Sensor cable.

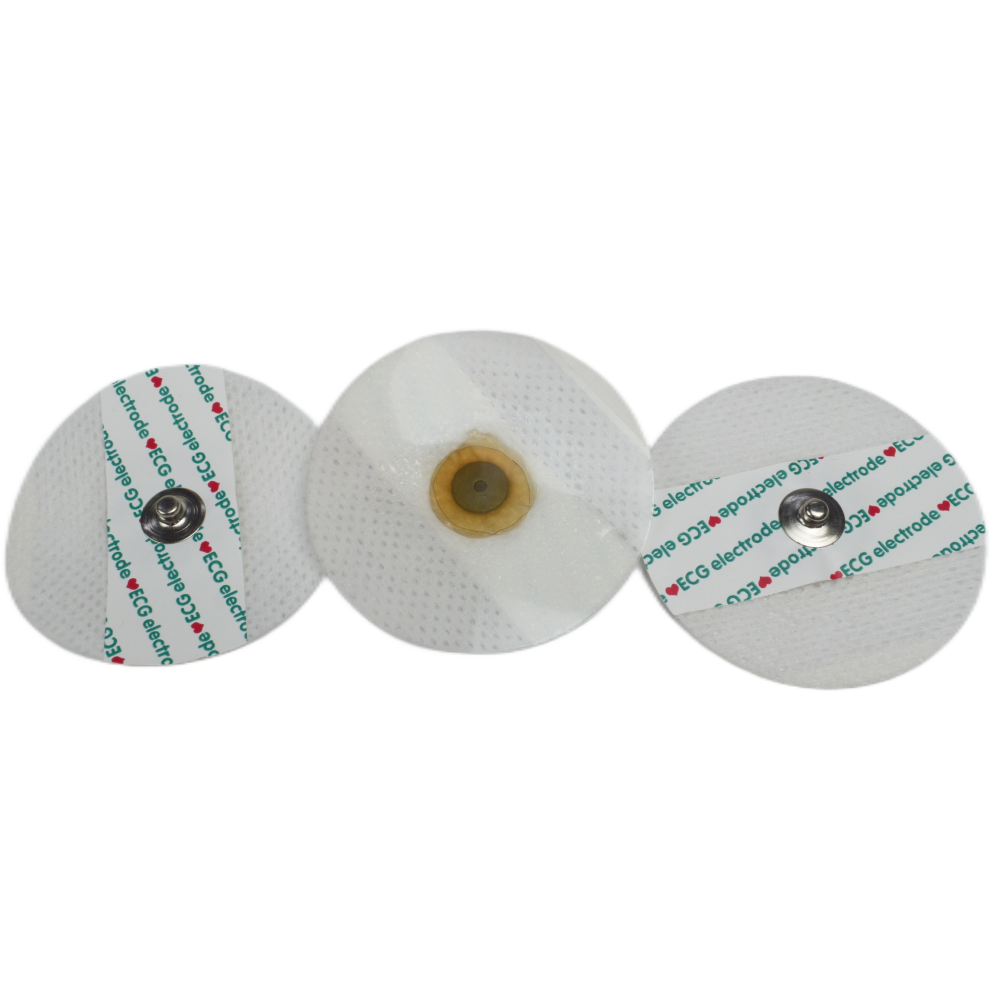

- 3 x Electrode Pads.
- It is used to measure the electrical activity of the heart. This electrical activity can be chart as an ECG or Electrocardiogram and output as an analog reading.
- ECGs can be extremely noisy, the AD8232 acts as an op-amp to help obtain a clear signal from the PR and QT Intervals easily.
- The ECG Module AD8232 Heart ECG Monitoring Sensor Module Kit for Arduino is designed to extract, amplify, and filter small bio-potential signals in the presence of noisy conditions; such as those created by motion or remote electrode placement.
- Applications: Fitness and Exercise Heart Rate Monitoring, Portable ECG, Remote Health Care, Gaming Peripherals, Biological signal acquisition.
