Description

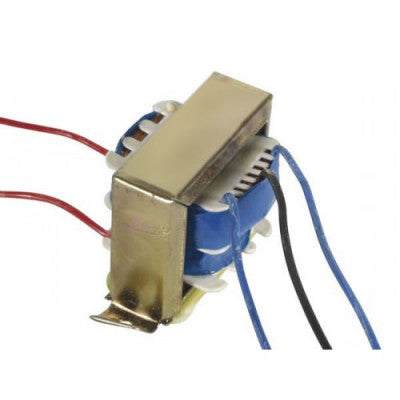

18-0-18 18V 1A Step Down Transformer is a general-purpose chassis mounting mains transformer. Transformer has 240V primary windings and centre-tapped secondary winding. The Transformer act as a step-down transformer reducing AC - 240V to AC - 18V. The Transformer is a center-tapped transformer that gives two outputs of 18V, 18V, and 0V. We can connect two 18V loads or one 36V load to the transformer.
Features
- Soft Iron Core.
- 1A Current Drain.
- Center Tapped Transformer.
- Applications: On chassis AC/AC converter, Designing a battery Charger.
| Specifications | |
|---|---|
| Model | EC-3429 |
| Voltage | 18-0-18V |
| Core Type | Soft Core Iron |
| Type | Center Tapped Transformer |
| Mounting Type | Through Hole |
| Output Current | 1A |
| Frequency | 50/60Hz |
