Description

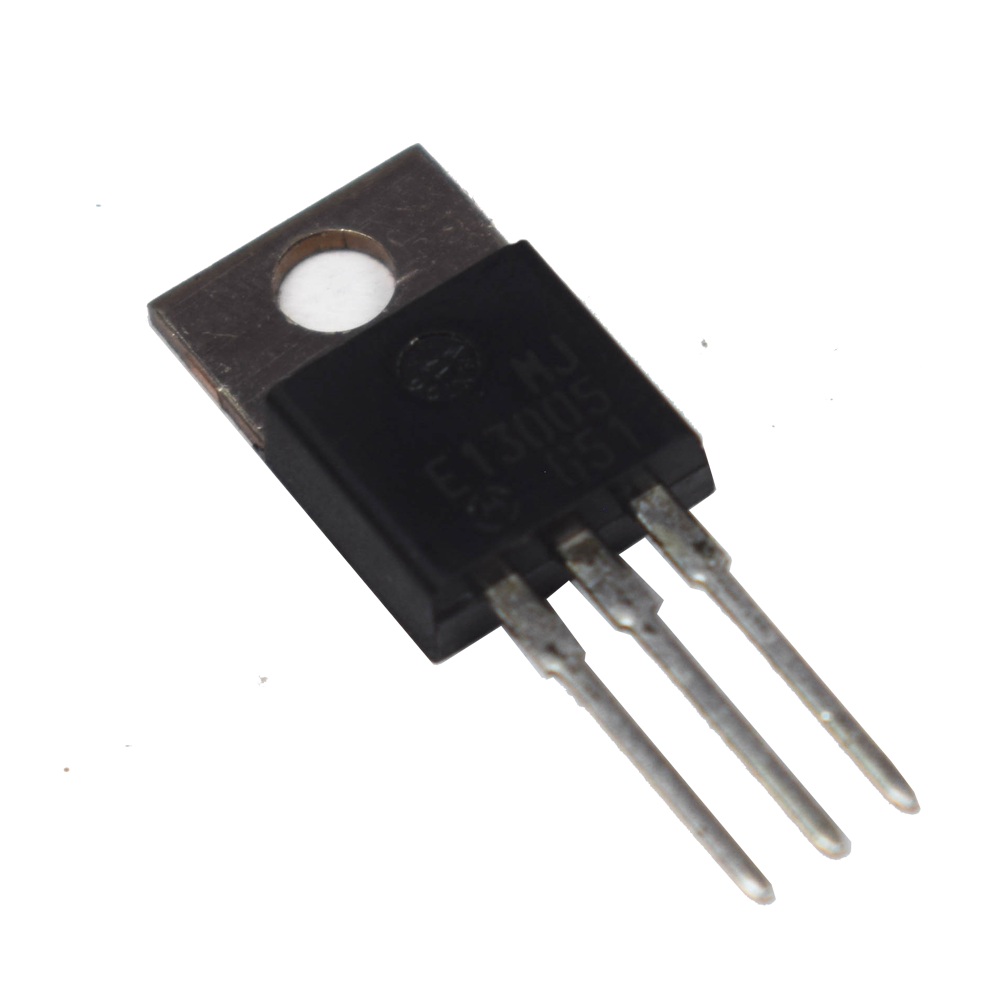

E13005 is a type of NPN transistor it has three terminal emitters, a base, collector it's a plastic envelope transistor it is used in high-speed power switching circuits, high current switching up to 4A, relay solenoid driver, UPS, Inverter circuits, DC-DC converter, Speed control motor.
Features
-
Max Collector Current(IC): 4A
-
Max Collector-Emitter Voltage (VCE): 400V
-
Max Emitter-Base Voltage (VEBO): 9V
-
Minimum & Maximum DC Current Gain (h F E): 10– 60
-
Max Storage & Operating temperature should be: -65 to +150 Centigrade
Specification
| Model | E13005 |
| Type | NPN Transistor |
| Collector base voltage | 700V |
| Collector emitter voltage | 400V |
| Emitter base voltage | 9V |
| Base current | 2A |
| Total power dissipation | 70W |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
