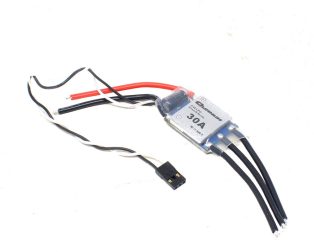

Quanum 30A Multi-Copter Brushless Speed Controller Programmable with 5V/3A (Original). The ESC’s power input uses extremely low output resistance greatly enhances power stability and has a protective effect on the battery. Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability. Using Simon K’s dedicated multi-copter program tgy_debug, and the master chip with a high stability crystal oscillator, making the motor control more precise.
The ongoing batch of this ESC has come with the below wire connection,
- White- ground
- Black- PWM Signal
Note: Actual product may vary from the product images.
Related Article:
Features:
- Drive tube and high-power Mos, and Mos tube plus a separate heat sink, Extremely low output resistance of the PCB(printed circuit board), super current endurance.
- The power input uses extremely low output resistance greatly enhances the power stability and has a protective effect on the battery.
- Safety electrical function: When the power is turned on, regardless of the throttle stick in any position does not start the motor immediately, to avoid personal injury.
- Separately voltage regulator IC for the microprocessor. providing good anti-jamming capability.
- Supported motor speed (Maximum): 210000 RPM (2 poles), 70000 RPM (6 poles), 35000 RPM (12 poles).
- Using Simon K’s dedicated multi-copter program tgy_debug, and the master chip with high stability crystal oscillator, making the motor control more precise.
Package Includes:
1 x DYS Quanum 30A Multi-Copter Brushless Speed Controller Programmable with 5V/3A (Original)
