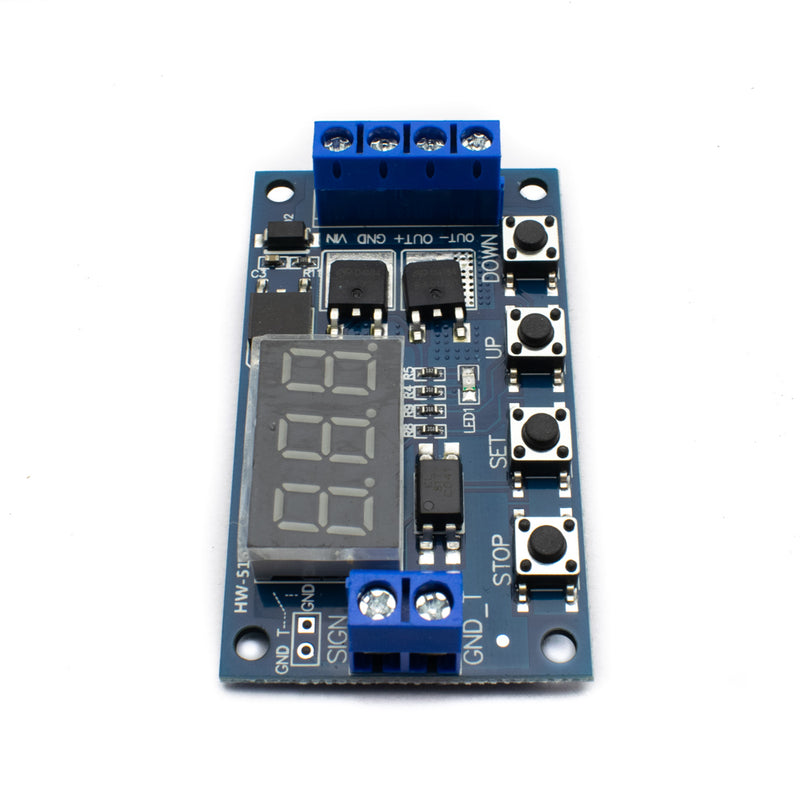

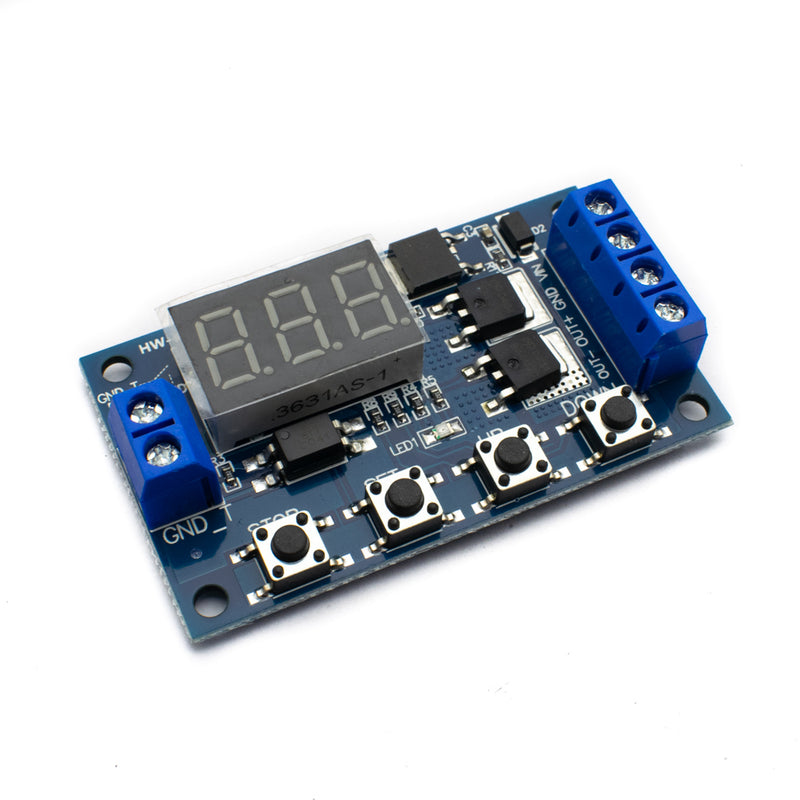

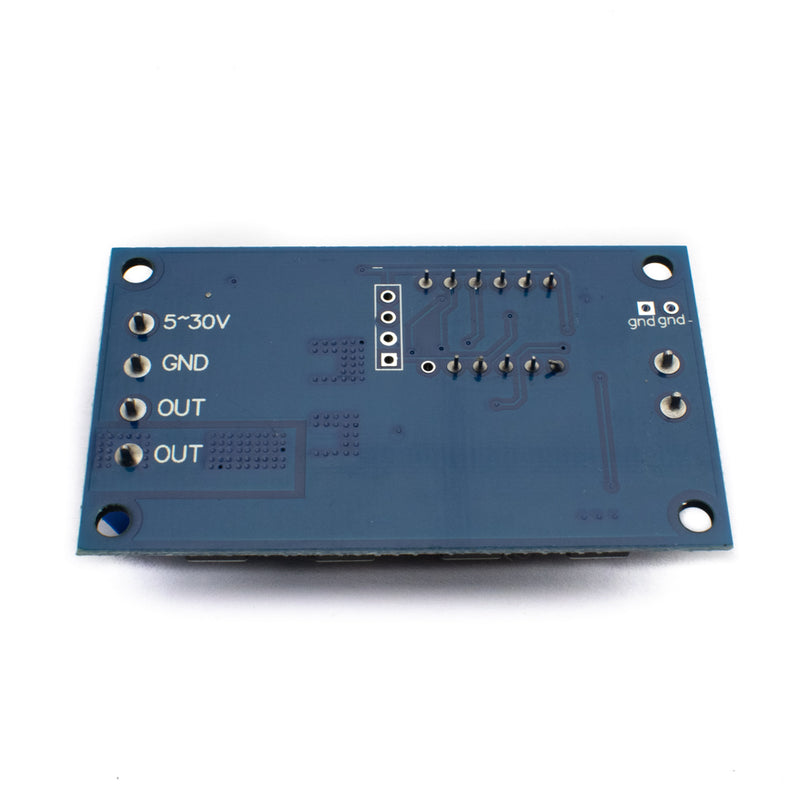

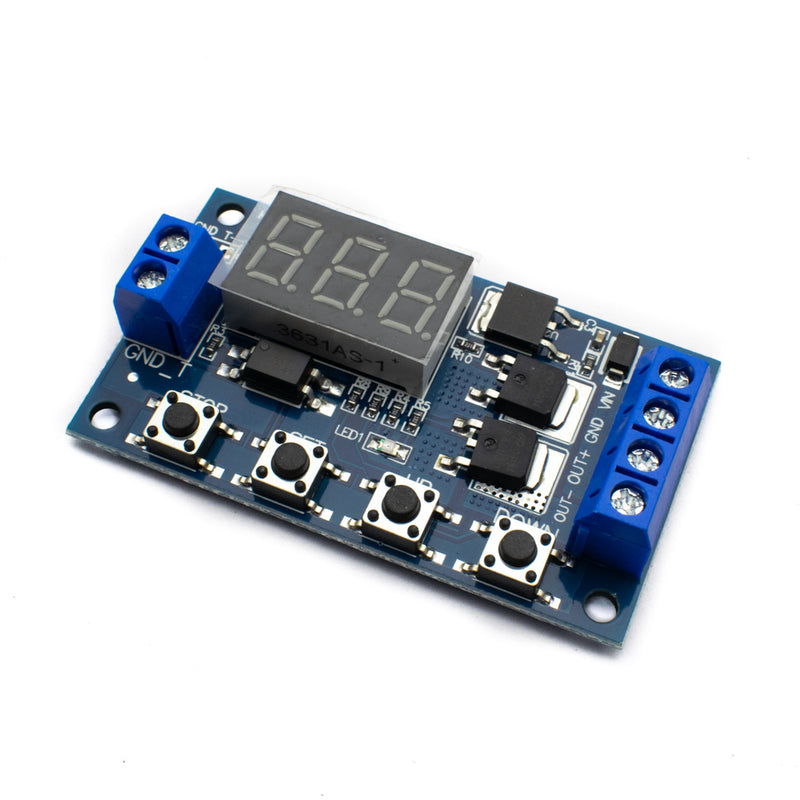

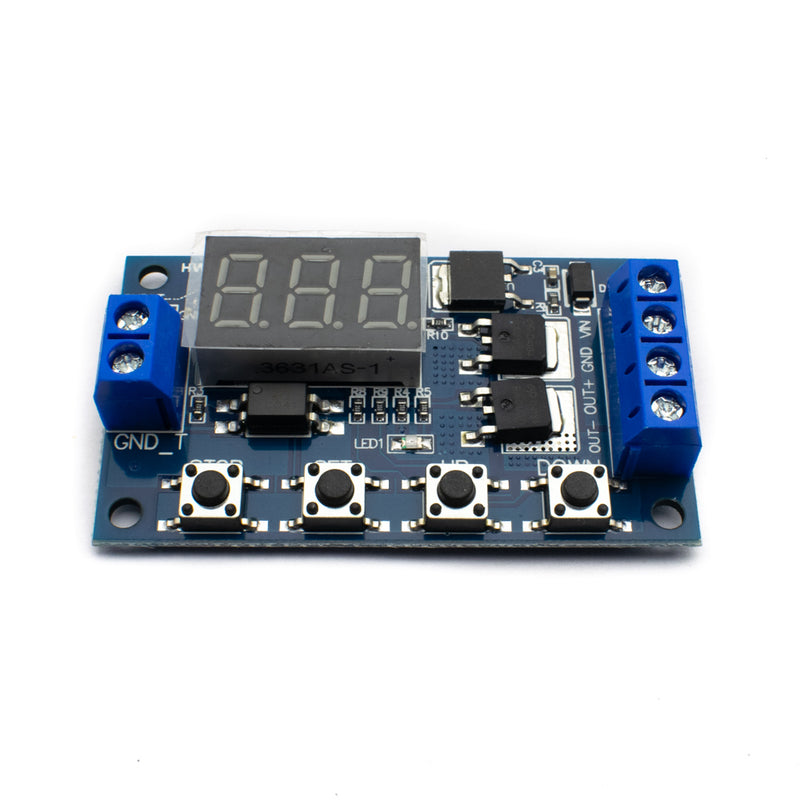

Dual MOSFET Time Delay Switch HW-516

Save 19%
Sold By: HatchnHackSKU: J06-44

Price:
Sale price₹ 217.00 Regular price₹ 269.00

Tax included Shipping calculated at checkout

Min Qty: 1

Description

HW-516 Dual MOS tube control board replaces the relay module to trigger the cycle timing delay switch. The timer range is between 0.1 seconds (minimum) ~ 999 minutes (maximum) continuously adjustable.

Features:

  • Realize fast and frequent high-frequency circuit switching, unlimited switching times;
  • There will be no noise during switching on and off, no sparks, no electromagnetic interference;
  • The service life is longer than that of common electromagnetic relays;
  • Using dual MOS parallel active output, the internal resistance is lower, the current is larger, the power is strong, 15A, 400W at room temperature, which meets the use of most equipment;
  • Often used to control motors, light bulbs, LED light strips, DC motors, miniature water pumps, solenoid valves, etc., through this module, you can easily control these devices, very convenient.
  • There is a key emergency stop function (STOP key), with reverse connection protection, the reverse connection does not burn.
  • Added sleep mode, after enabling, no operation within 5 minutes, automatically turn off the monitor; any key to wake up.
  • Different OP, CL and LOP parameters can be set, these parameters are independent of each other and saved separately.
  • All setting parameters are automatically saved after power off.


Specifications
Operating Voltage DC 5V-30V
Output Voltage 5V-30V DC
Output Current 15A
Trigger Singla Source 3.0V-24V
Power Rating 400W
Quiescent Current 15mA
Working Temperature -40°C to 85°C
Adjustable Time 0.1s to 999 minutes
Size 60.4x34.8x14mm
Country of Origin China
