DSO138 2.4-inch TFT Digital Oscilloscope Kit

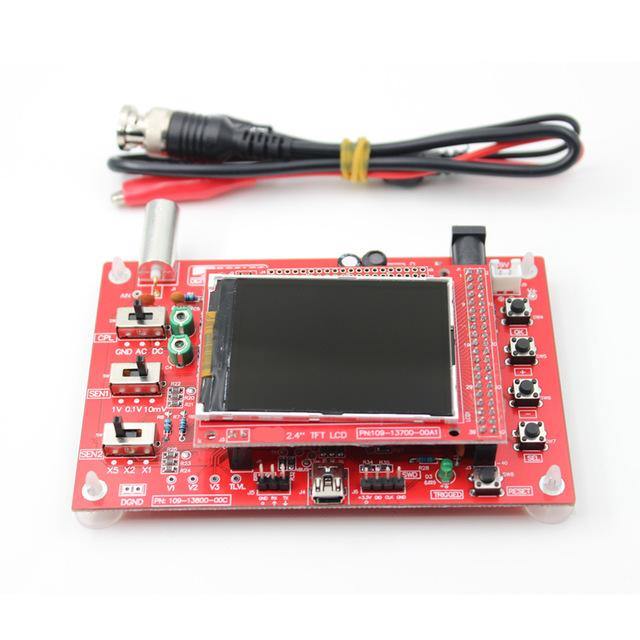

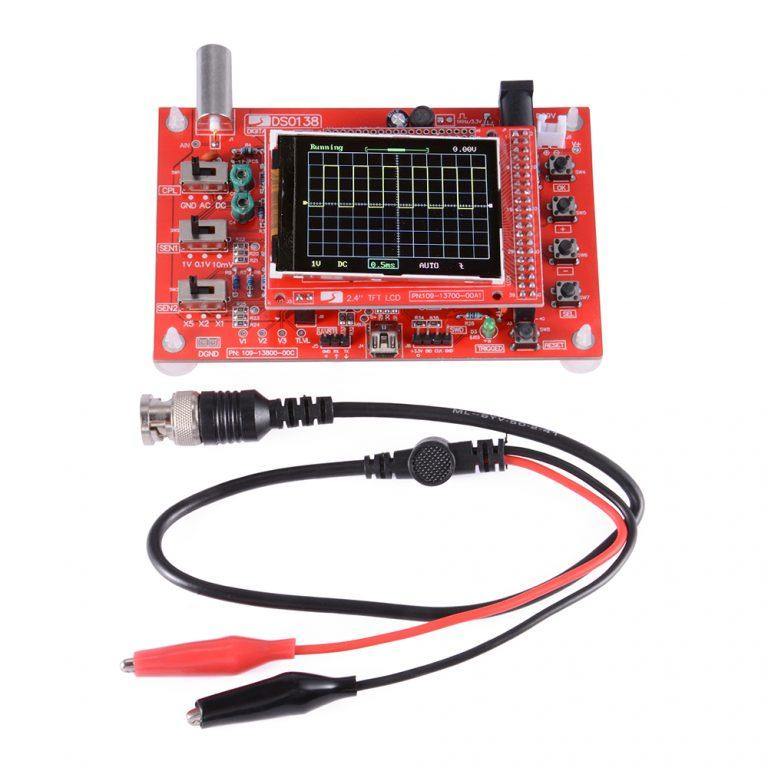

The DSO138 digital oscilloscope kit is a DIY portable oscillator kit integrated with an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display screen, that can be used as the ARM test development board.
This DSO138 Oscilloscope Kit features automatic, regular, and one-shot modes, easy to capture the moment waveform.
It's easy and reliable for circuit operation. This digital Oscillator kit can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
This boost converter is a great match for the DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included).
Features:
- This DSO138 oscilloscope uses an ARM Cortex-M3 processor (STM32F103C8) and includes a 2.4-inch color TFT display screen.
- Adjustable vertical displacement, and with instructions.
- It can be a secondary development based on this kit, like it can be changed to a Millivoltmeter, or data logger.
- Comes 1Hz /3.3V square wave test signal source.
- Available rising or falling edge trigger.
- With waveform parameter digital display, including frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
- With automatic, regular, and one-shot modes, easy to capture the moment waveform.
- Observable previous trigger waveform (negative delay).
- Can freeze at any time waveform display (the HOLD function).

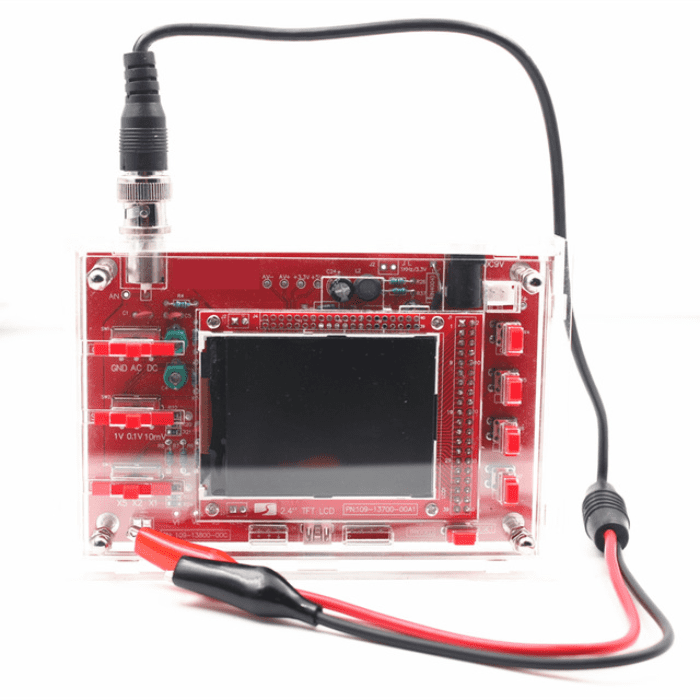

Also, check the Acrylic Case Shell for DIY DSO138 Oscillator Kit specially designed DIY acrylic case for this oscilloscope.
Applications:
- Designed for circuit operation.
- Suitable for frequency analysis tasks.
- Ideal for signal analysis and troubleshooting with automatic, regular, and one-shot modes.
- Easy to capture moment waveforms.
- Useful for learning about waveforms and electronic signals.
- Can be used as an ARM test development board.
- With the boost converter, it can be transformed into a portable oscillator.
Package Includes:
- 1 x DSO138 digital Oscilloscope Kit with 2.4inch TFT Display
Specifications:
| LCD Screen | 2.4 inch |
| Processor | ARM Cortex-M3 processor |
| Analog Bandwidth | 0-200KHz |
| Sampling Buffer Depth | 1024 bytes |
| Accuracy | 12 Bit |
| Vertical sensitivity | 10mV/Div – 5V/Div |
| Input impedance | 1M ohm |
| Dimensions | 128*88*27mm |
| Weight | 50 grams |
