Description

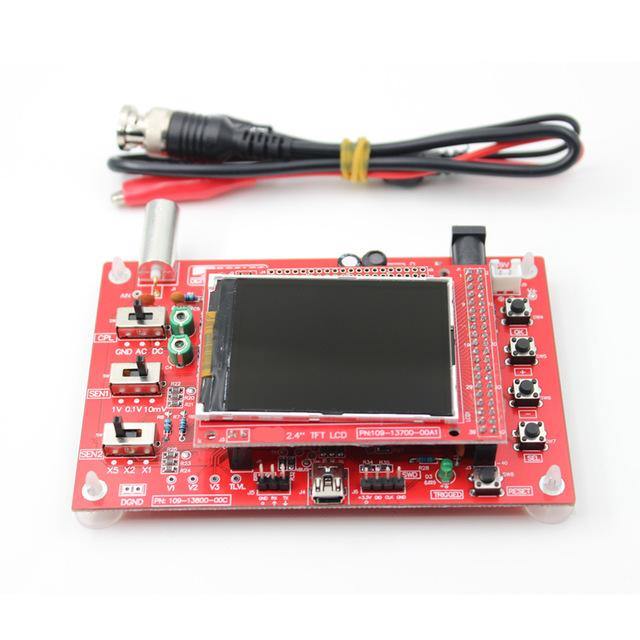

The DSO138 2.4′′ TFT Handheld Pocket-size Digital Oscilloscope Kit is available. This DSO138 digital oscilloscope kit features a 2.4-inch TFT screen and an ARM Cortex-M3 processor. It is simple and dependable for circuit operation. It can show frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values, and other parameters. This boost converter is an excellent complement to the DSO138 oscilloscope kit. It can be directly connected to the DSO138 motherboard (not included), transforming the DSO138 oscilloscope into a portable oscilloscope for easier use.
Package Includes
1 x DSO138 DIY Digital Oscilloscope Kit.
1 x Probe.
Specifications
| Model | DSO138 |
| Input Supply Voltage (VDC) | 9V |
| Impedance (Ω) | 1MΩ |
| Maximum Real-time Sampling Rate | 1Msps |
| Sampling Buffer Depth | 1024 bytes |
| Analog Bandwidth | 0-200KHz |
| Accuracy | 12 Bit |
| Coupling Modes | DC/AC/GND |
| Country of Origin | China |
