Description

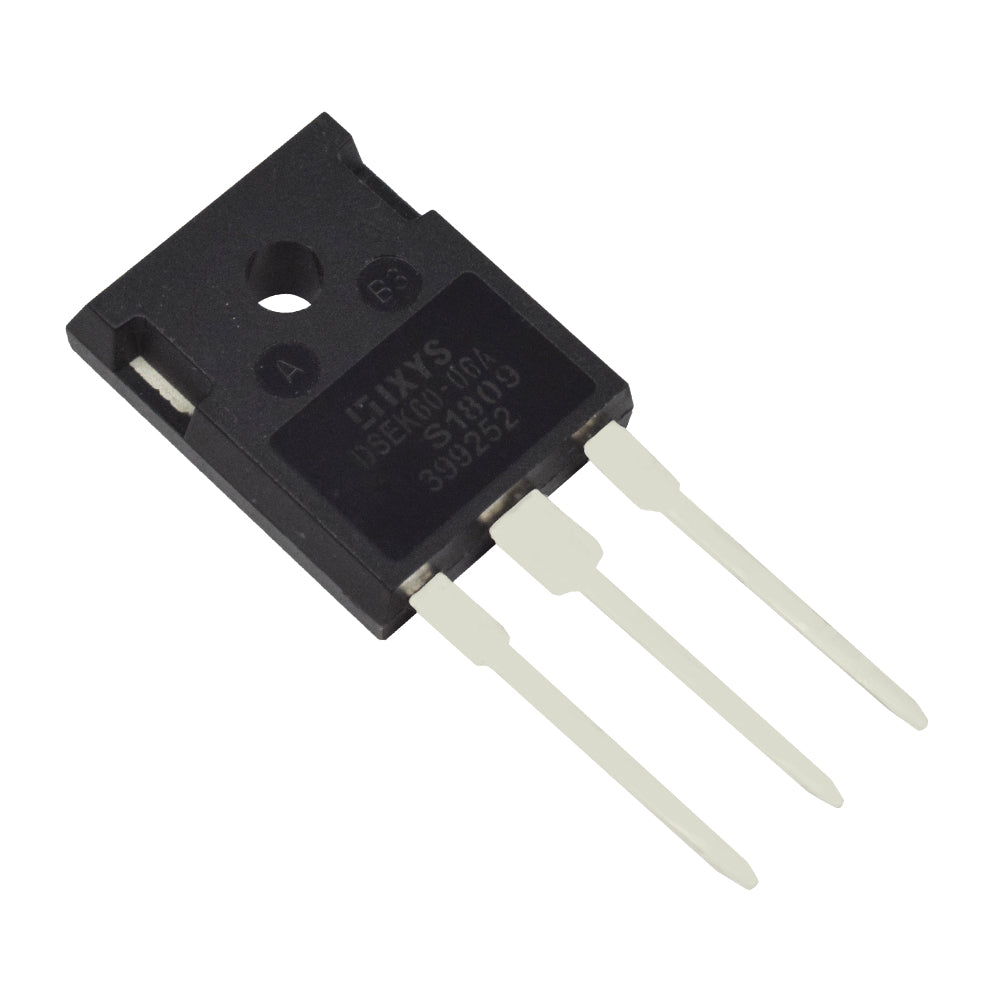

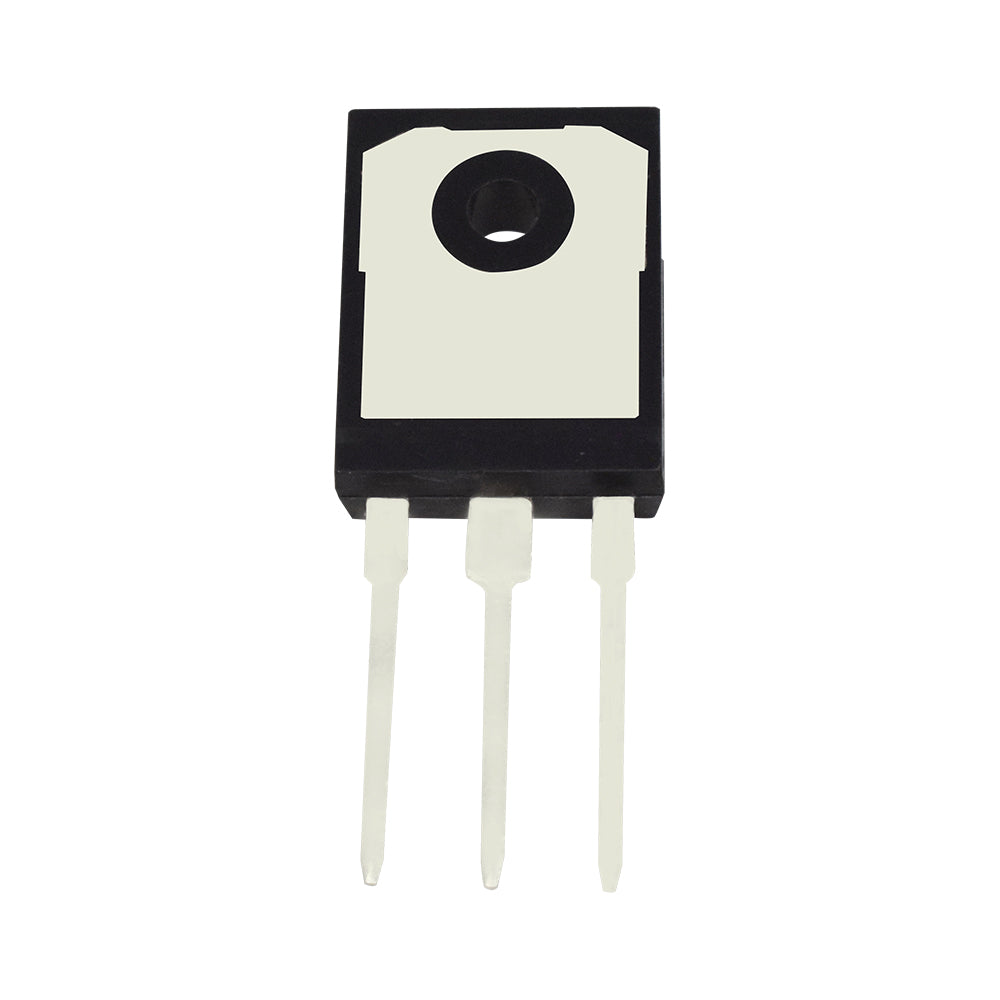

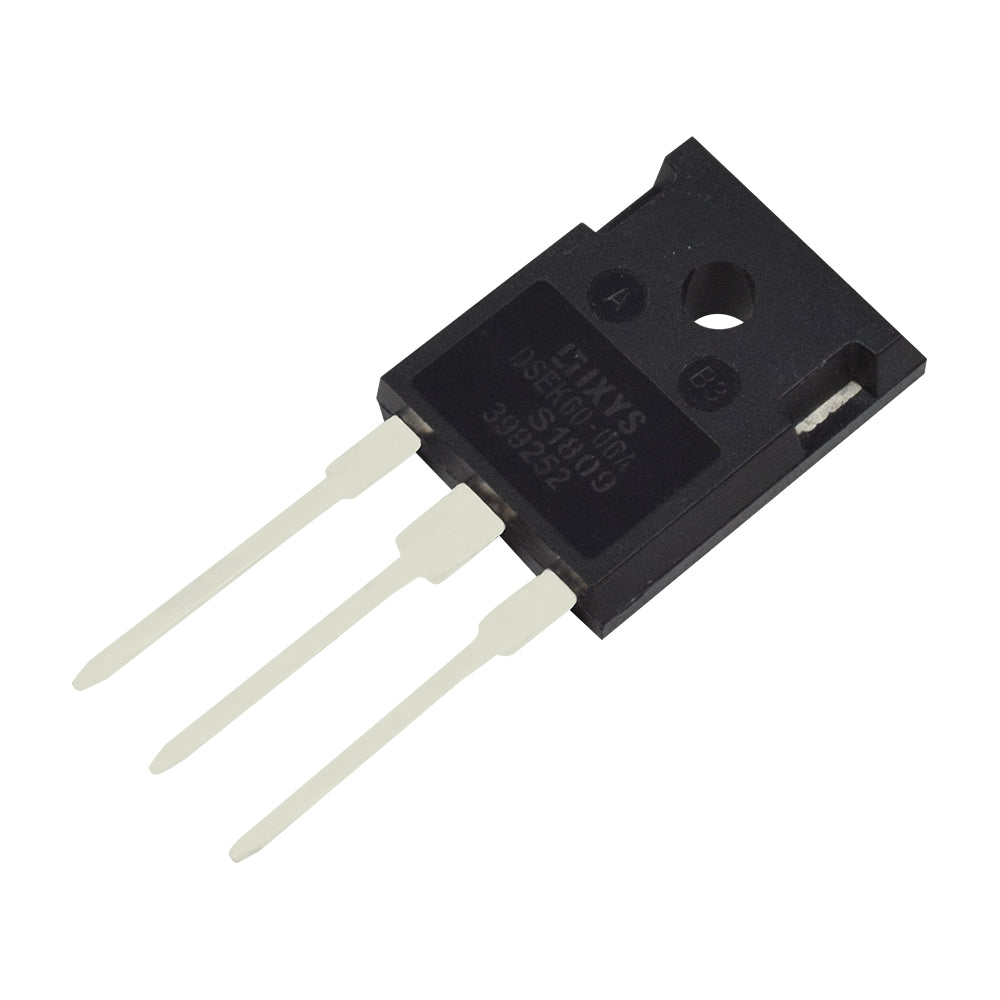

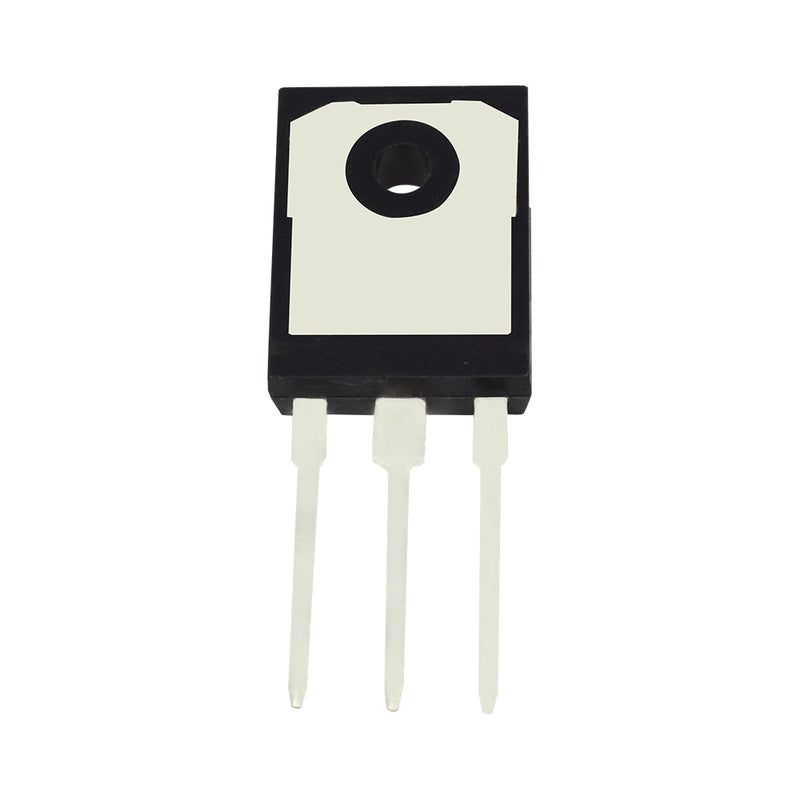

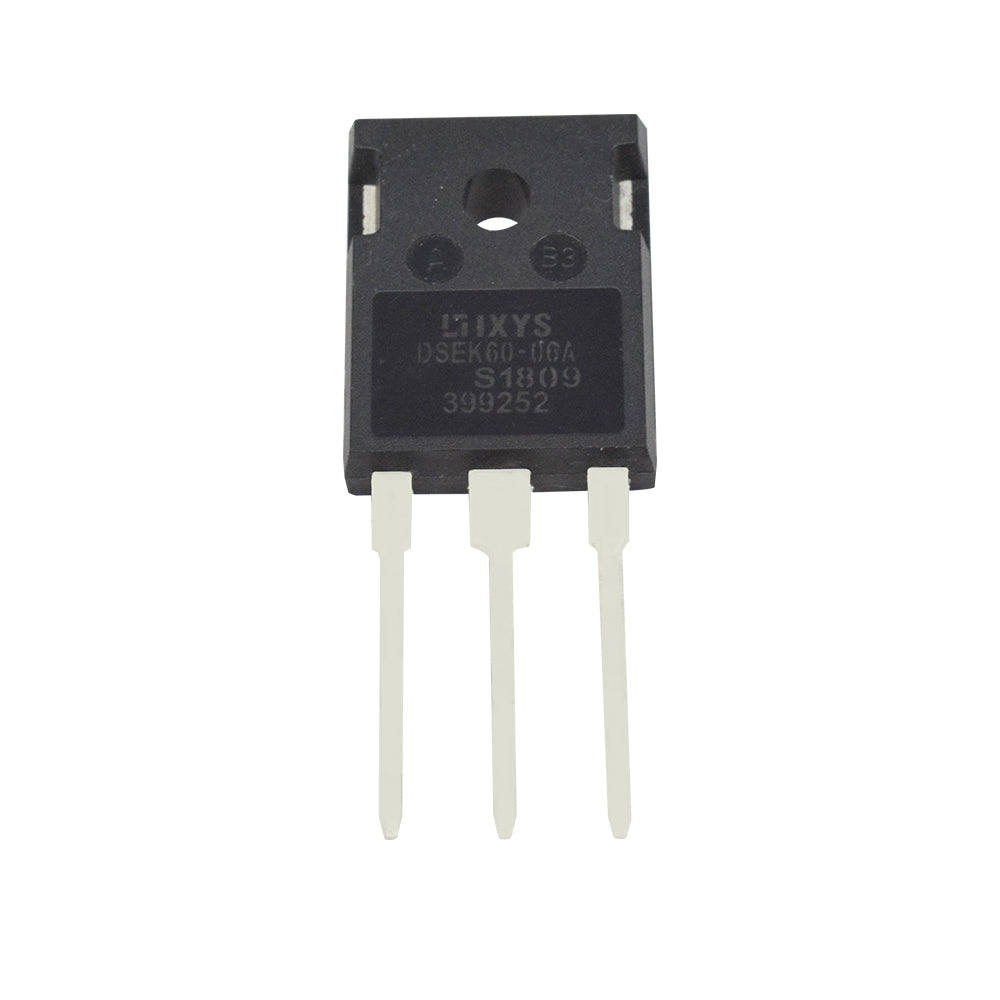

DSEK60-06A is a Common Cathode fast recovery diode this diode is mainly designed to use in switching circuit applications, it's used as a rectifier in SMPS, It's used in UPS, and it has three terminals by using this diode as an electronic switch there will be extremely low switching losses that is why it prefers to use an ultrasonic cleaner and welder devices. It has a very short recovery time this feature increases the switching speed.
Features
- Low IRMS Value
- Its highly reliable circuit operation
- Low noise switching
- Low voltage peaks for reduced protection circuits
- Low losses
Specification
| Model | DSEK60-06A |
| Type | Fast recovery diode |
| Max Voltage | 600V |
| Package | TO-220AD |
| Duty cycle | 0.5 |
| Reverse recovery time | 35nS |
| Current | 30A |
| Operating and Storage Temperature Range | -55°C TO 150°C |
| Country of Origin | China |
