Description

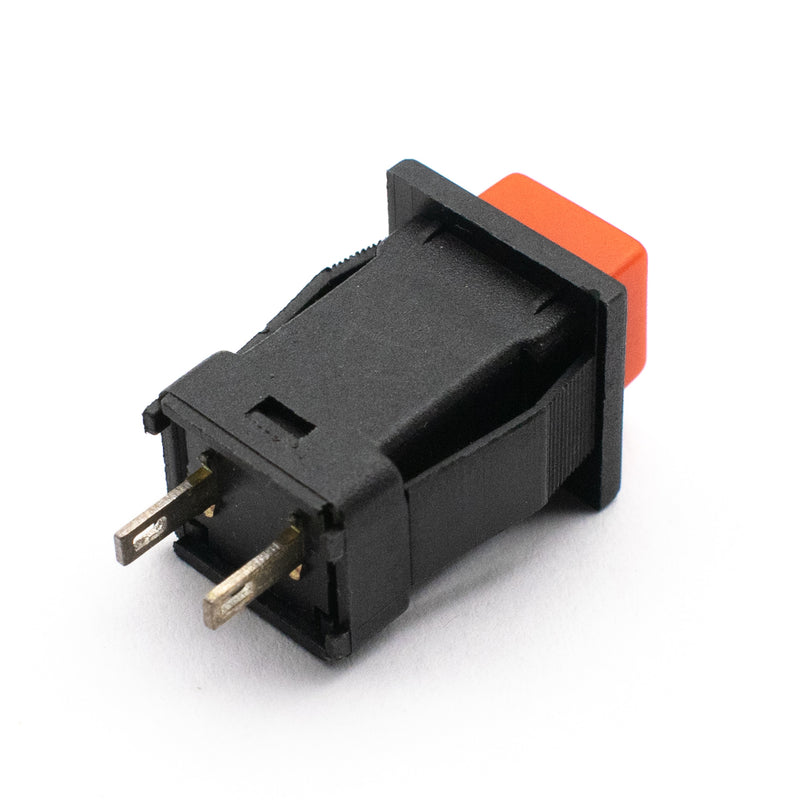

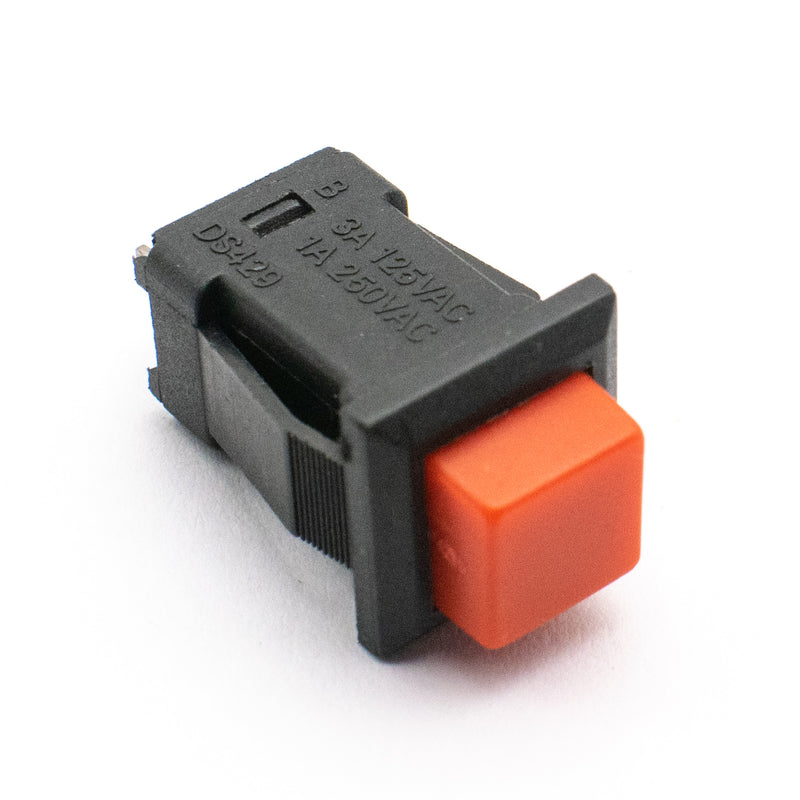

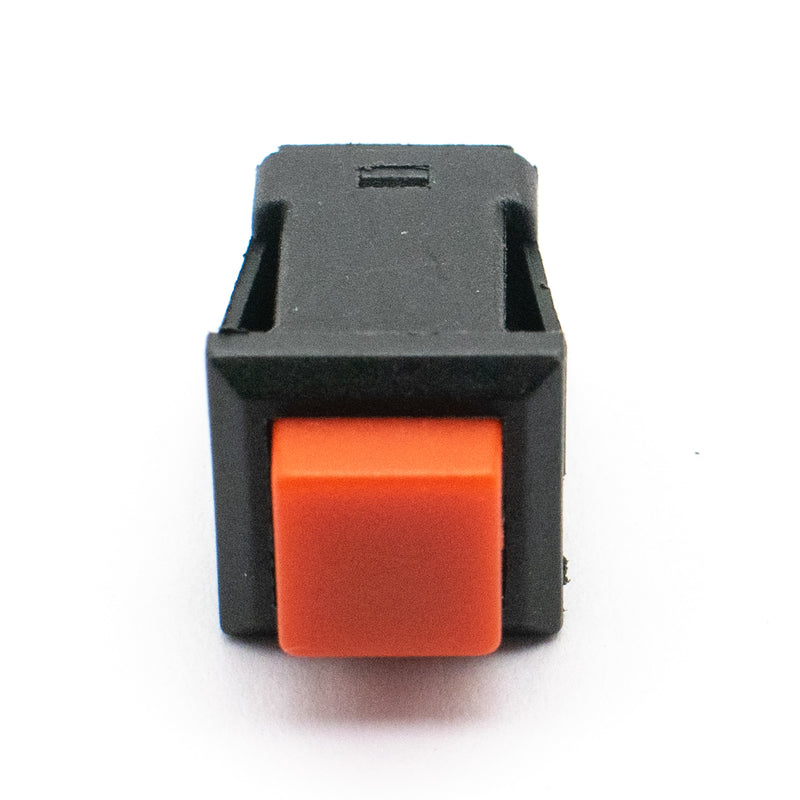

Push-button switch is one of the simplest and quick to operate. The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labelled as graphic convenience, operating the switch lead to user satisfaction. This switch is default OFF and Push to ON (momentary), When you push switch, it will be power ON, and then release your finger to switch OFF, the actuator will come back to the original position.
Specifications
| Rating | 3A 125V/ 1A 250V AC |
| Contact Resistance | 100mΩ |
| Insulation Resistance | 100MΩ |
| Temperature | -25°C to 85°C |
| Function | Push ON |
| Electrical Life | ≥10000 Cycles |
| Country of Origin | China |
