Description

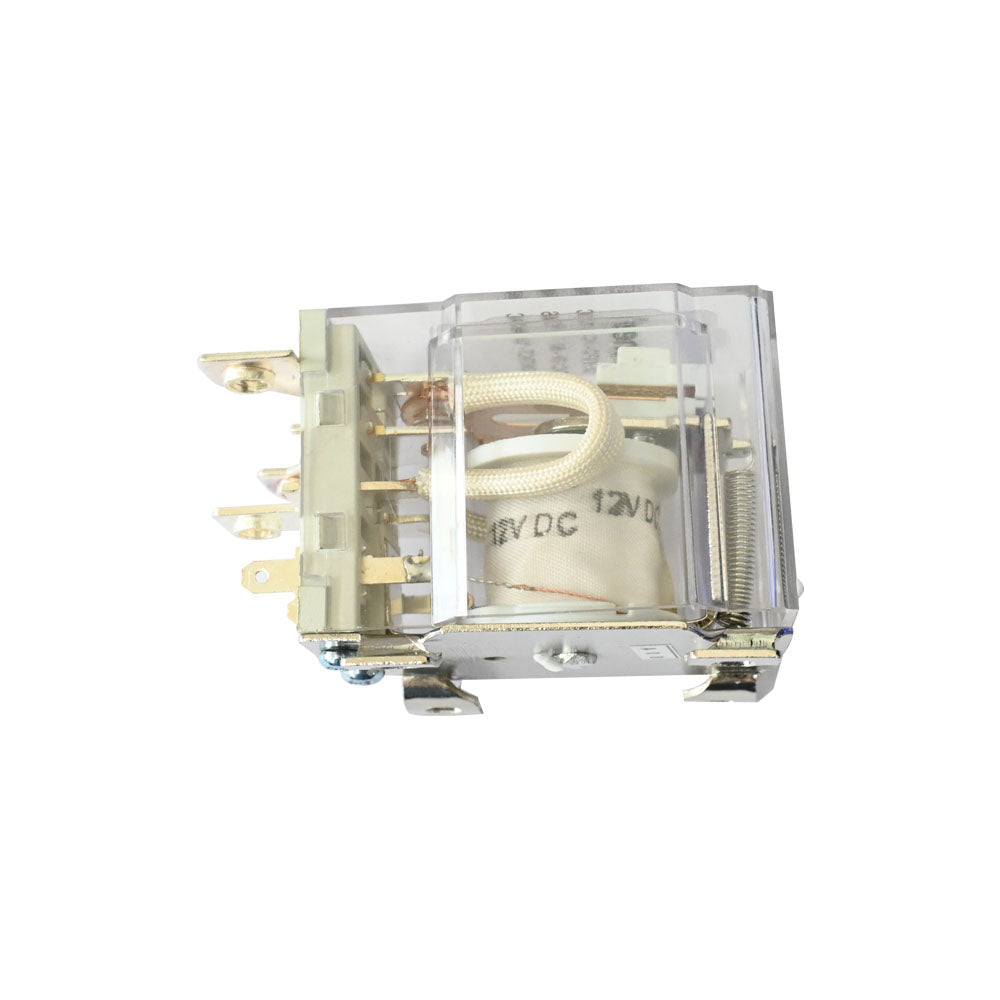

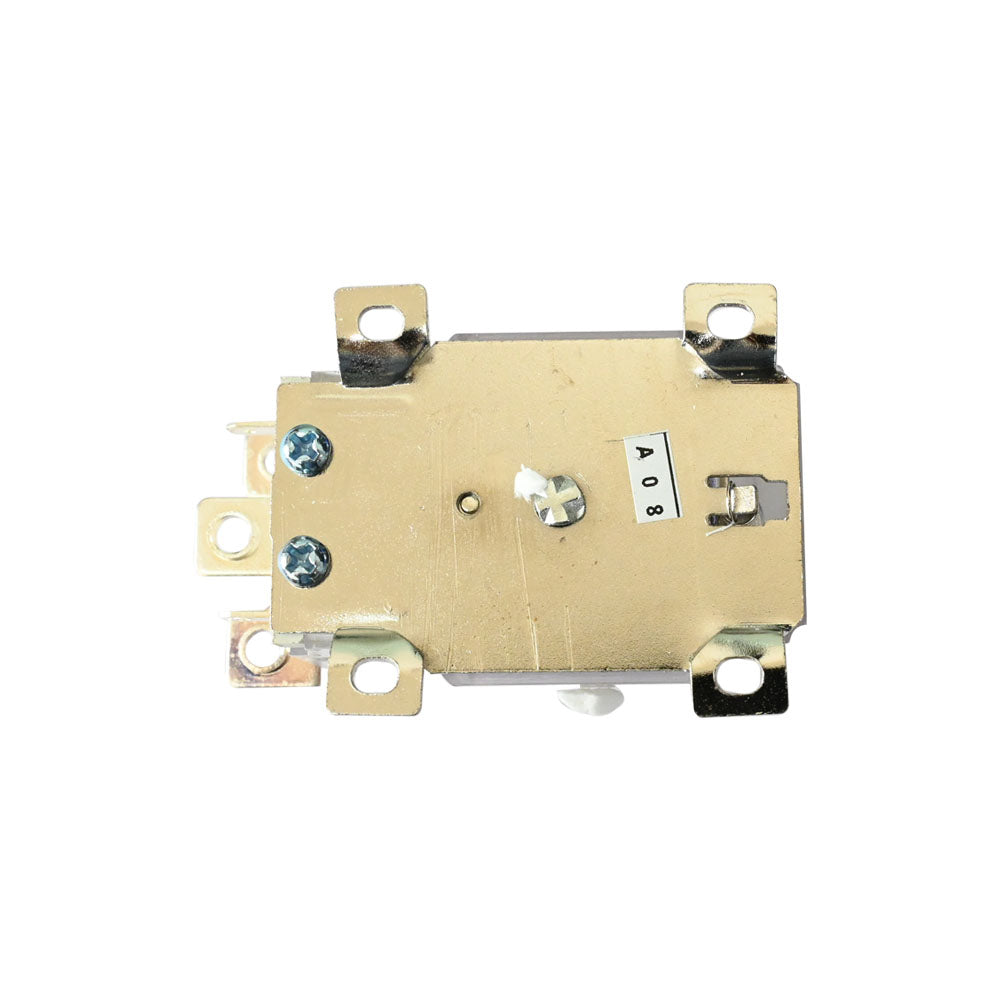

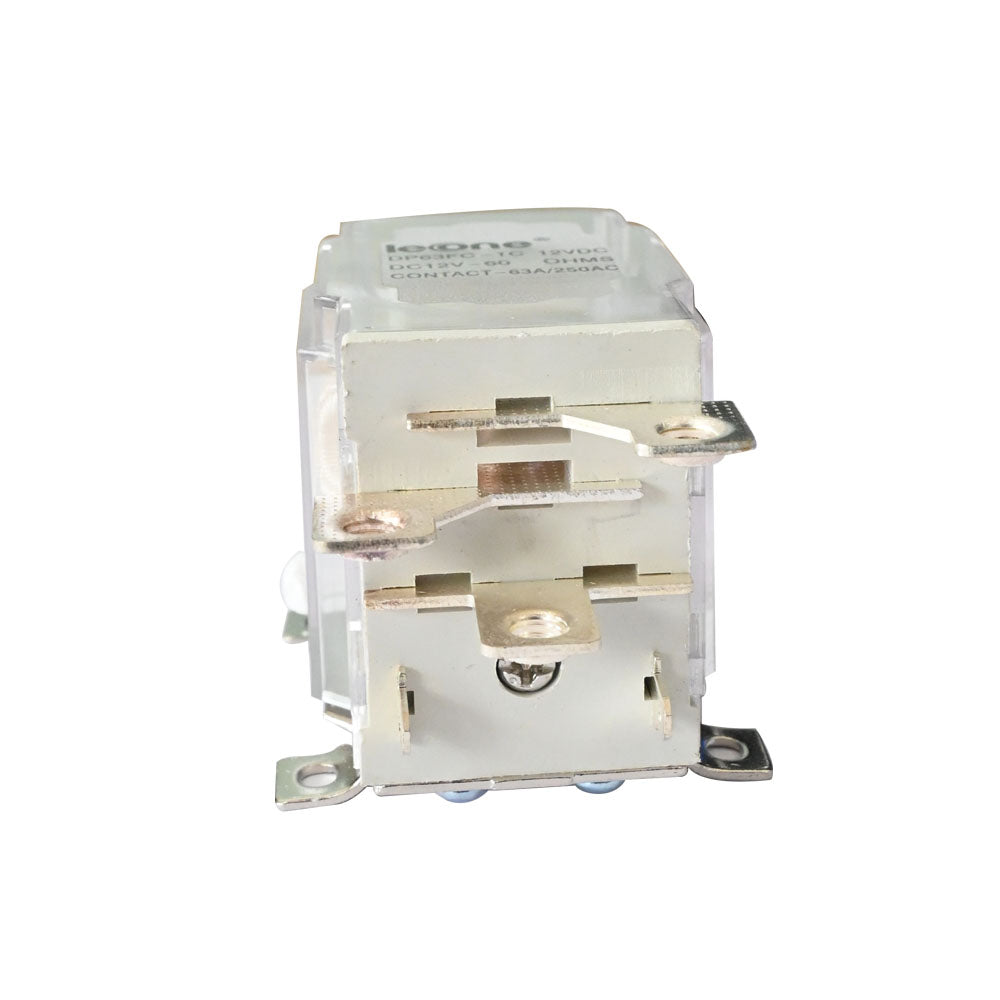

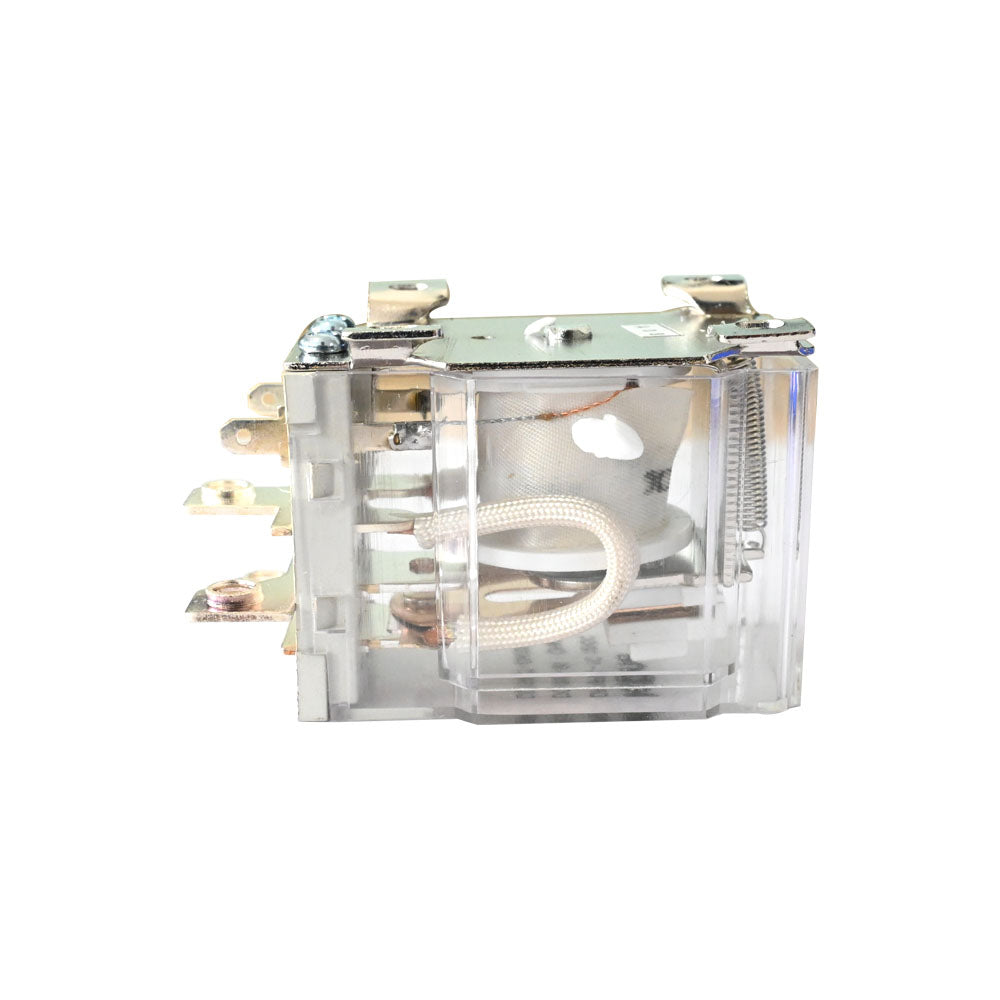

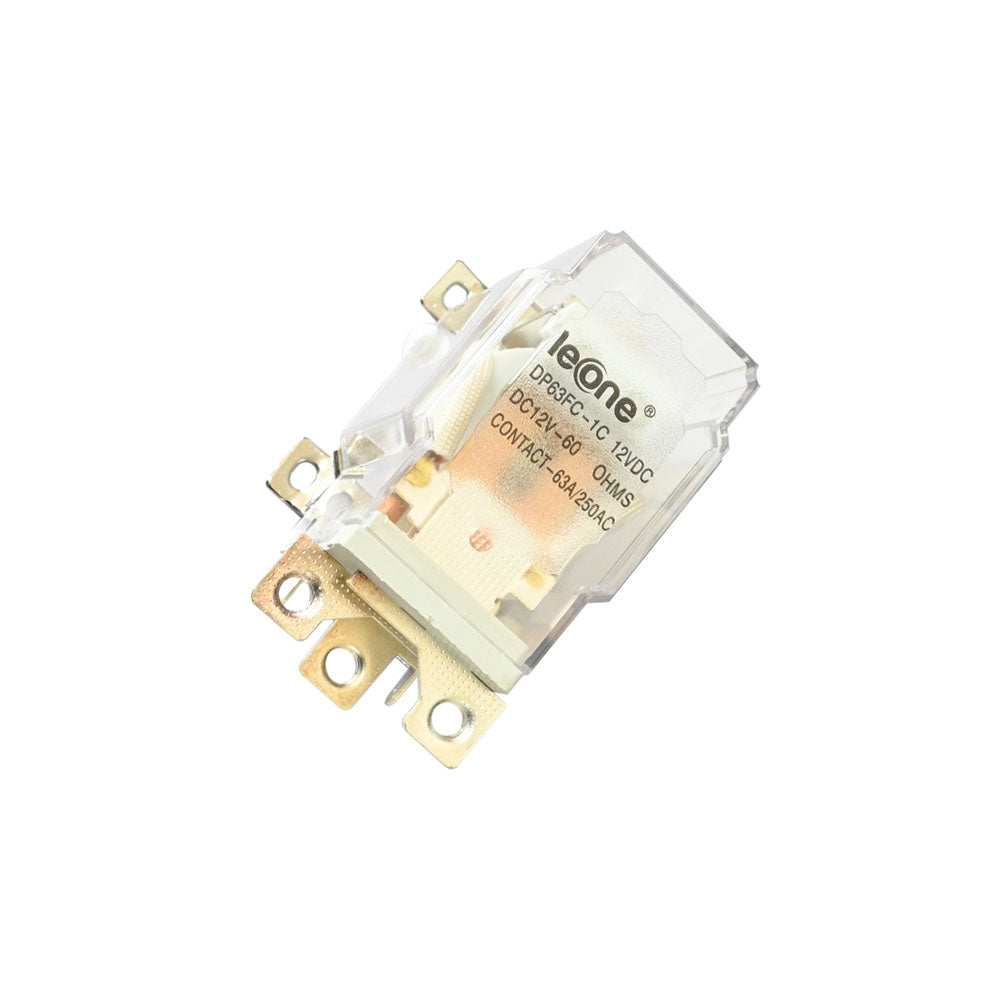

It's a general-purpose Relay 12V DC 63A/250AC. Mostly, relays are used to perform switching operations without manual touch. It is used to control the flow of current. General-purpose Relays are primarily used as a control circuit (relay sequence) for automated machinery employed at various industrial sites as well as for other control systems including lighting, air conditioning, and water treatment in buildings.
Applications:
- Relays are electrically operated switches
- It consists of a set of input terminals for a single or multiple control signals, and a set of operating contact terminals.
- Power relays open or close a circuit by using an electromagnetic coil for seamless power flow.
- The operating voltage of a relay is generally in DC.
Specification
| Brand Name | LEONE |
| Model | DP63FC-1C |
| Type | Power Relay |
| Operating Voltage | 12V DC |
| Contact | 250V AC /63A |
| Mounting Type | Panel Mount |
| Size (L,W,H) | 58 x 40 x 42 mm |
| No. of Terminals | 5 Pin |
| Quantity | 1 |
| Switch Type | SPDT |
| Country of Origin | China |
