Description

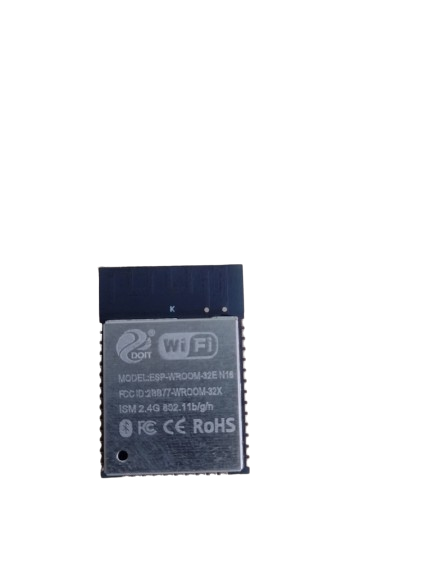

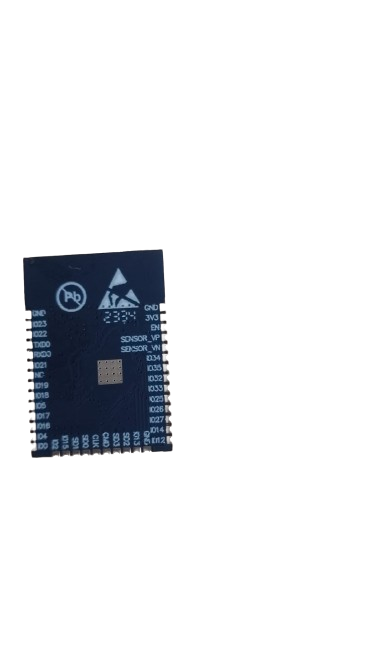

The DOIT ESP32-WROOM-32E N16 is a multifunctional MCU module that supports Wi-Fi, Bluetooth, and Bluetooth Low Energy (BLE), catering to a diverse range of applications. From low-power sensor networks to intensive tasks like voice encoding, music streaming, and MP3 decoding, it offers versatile functionality. The module features a built-in PCB antenna for seamless Bluetooth and Wi-Fi connectivity.
Features:
- The ESP32-D0WD-V3 or ESP32-D0WDR2-V3 contains an embedded Xtensa dual-core 32-bit LX6 microprocessor, capable of running up to 240 MHz.
- Its Flash Memory is 16MB quad SPI
- It includes 448 KB of ROM and 520 KB of SRAM, with an additional 16 KB of SRAM in the Real-Time Clock (RTC).
- The ESP32-D0WDR2-V3 variant also offers 2 MB of PSRAM. Wi-Fi
- Supports 802.11b/g/n standards with a maximum bit rate of 150 Mbps for 802.11n.
- Features A-MPDU and A-MSDU aggregation, with support for a 0.4 µs guard interval.
- Operates within the frequency range of 2412 to 2484 MHz. Bluetooth
- Complies with Bluetooth V4.2 BR/EDR and Bluetooth LE specifications.
- Transmitter classes include class-1, class-2, and class-3, along with Adaptive Frequency Hopping (AFH) support.
- Supports audio codecs such as CVSD and SBC.
Applications:
- Low-energy IoT sensor hubs
- Energy-efficient IoT data recording devices
- Video streaming cameras
- Over-the-top (OTT) gadgets
- Voice recognition systems
- Visual recognition systems
- Networking mesh setups
- Home automation solutions
- Intelligent building systems
- Industrial automation tools
- Advanced agriculture monitoring systems
- Audio processing applications
