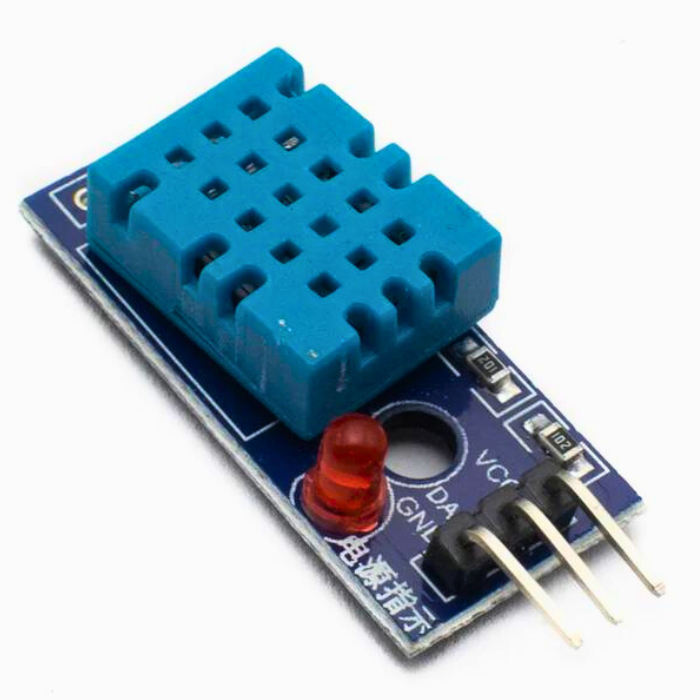

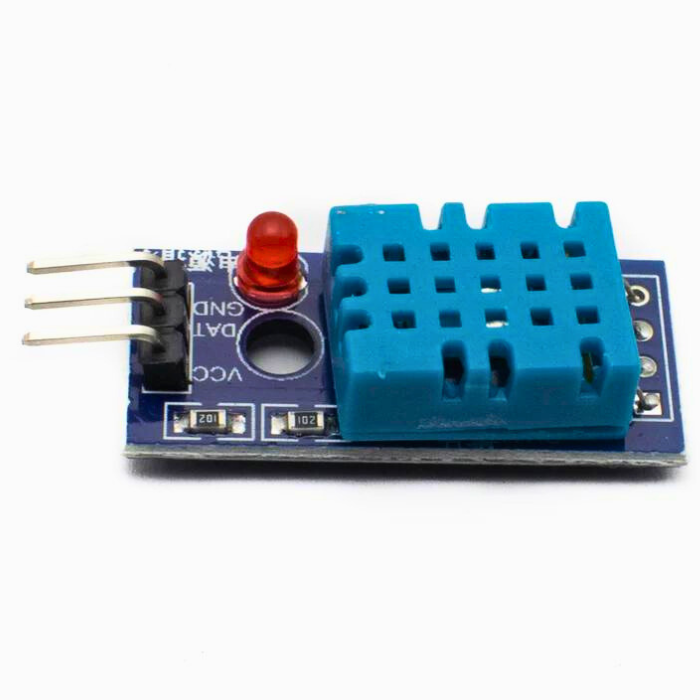

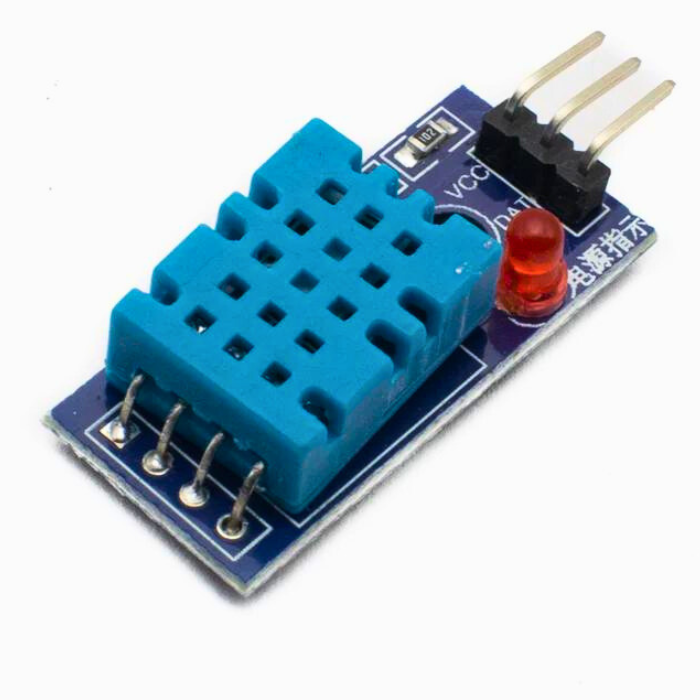

DHT11 Humidity and Temperature Sensor Module
The DHT11 Humidity and Temperature Sensor Module is capable of sensing both temperatures as well as humidity. This makes it ideal for projects as well as automation. The board is also equipped with a high-performance 8-Bit microcontroller connected to the DHT11 sensor module.
The output of the DHT11 Temperature Sensor Module is in the form of a digital signal on a single data pin. The sensing update frequency is to be measured every 2sec (0.5Hz). The DHT11 Sensor Module can be interfaced with any microcontroller like Arduino, Raspberry Pi, etc.
This Sensor module integrates the DHT11 sensor and other required components on a small PCB. The DHT11 sensor includes a resistive-type humidity measurement component, an NTC temperature measurement component, and a high-performance 8-bit microcontroller inside, and it provides calibrated digital signal output.
The Module has high reliability and excellent long-term stability, thanks to the exclusive digital signal acquisition technique and temperature & humidity sensing technology.
DHT11 sensor module pin description
| 1 | Vcc | Power +Ve (3.3VDC to 5.5VDC Max wrt. GND) |
| 2 | Out/Data | Outputs both Temperature and Humidity through serial Data |
| 3 | Ground | Power Ground or Power –Ve |
Read more : Interfacing the DHT11 sensor with the ESP32 board
Applications:
- Measure temperature and humidity
- Local Weather station
- Automatic climate control
- Environment monitoring
- Home Automation
Package Includes:
- 1 x DHT11 Humidity and Temperature Sensor Module
Specifications:
| Operating Voltage | 3.3VDC to 5.5VDC |
| Temperature measuring range | 0~+50degree |
| Humidity measurement accuracy | ±5.0%RH |
| Humidity measuring range | 20%~90%RH |
| Temperature measurement accuracy | ±2.0degree |
| Dimensions | 3 x 3 x 1cms |
| Weight | 5 grams |
