DFM8001 Indoor Ambient Energy Harvesting Kit
The DFM8001 Energy Harvesting Kit is the perfect solution for harnessing ambient energy. It features a versatile design, multiple components, advanced MPPT technology, and a high-quality build, making it suitable for various applications such as smart home systems, industrial monitoring, and IoT projects.
The DFM8001 ensures the highest quality and durability. Its dynamic MPPT tracking provides optimal power efficiency, and the robust materials used in its construction offer long-lasting performance.
The kit includes an evaluation board, supercapacitors, and a light energy board, making it easy to use and maintain. This kit is designed to solve energy harvesting challenges, making it perfect for tech enthusiasts and professionals alike.
Features:
- Harnesses mechanical, thermal, solar, radio frequency energy.
- Efficiently collects and stores weak to microwatt energy.
- Features dynamic Maximum PowerPoint Tracking (MPPT).
- Integrates charge, discharge, and energy storage management.
- Provides dual-channel voltage stabilization output.
- Includes DFM8001 evaluation board, photovoltaic panels, supercapacitor.
Applications:
- Indoor light energy harvesting
- Self-powered Internet of Things (IoT) nodes
- Smart home systems
- Industrial monitoring
- Asset management
- Ambient IoT

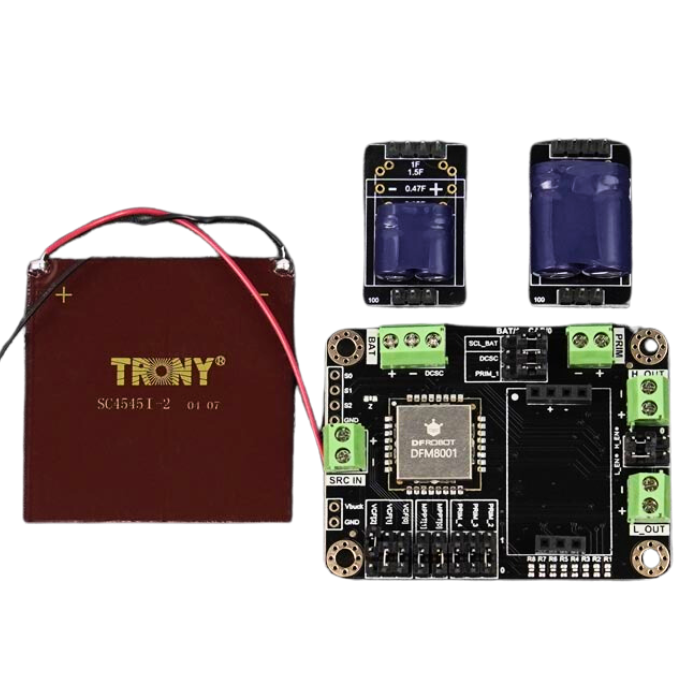

Package Includes:
- Ambient Energy Harvesting Evaluation Board- DFM8001 x1
- 0.22F Supercapacitor Module x1
- 1.5F Supercapacitor Module x1
- Amorphous silicon light energy board x1
Specifications:
| Operating Voltage | 3.3V-5.5V DC |
| Cold Start Condition | Input ≥ 400mV 15uW |
| Sustaining Voltage after Cold Start | 150mV |
| Input Voltage Range | 150mV-5V |
| MPPT Ratio | 70%, 75%, 85%, 90% (adjustable) |
| MPPT Automatic Detection Frequency | 5 times per second |
| Dual LDO Voltage Regulation Output | Low voltage: 1.2-1.8V 20mA (with switch) <br> High voltage: 1.8-4.1V 80mA (with switch) |
| Energy Storage Management | Adjustable overcharge protection: 2.7V-4.5V <br> Adjustable overdischarge protection: 2.2V-3.6V <br> Suitable for any type of rechargeable battery or capacitor <br> Low battery warning <br> LDO output available indication |
| Supports Disposable Backup Battery | Yes |
| Amorphous Silicon Light Energy Panel | Maximum power point: 70% <br> Maximum power: 90uW@200Lux |
| Module Dimensions | 15x15x3.5 mm |
| Amorphous Silicon Light Energy Board Size | 45x45 mm |
