Description

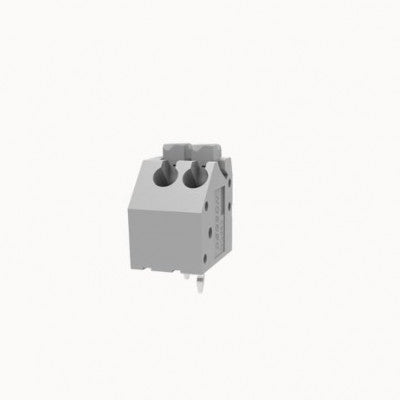

- Model: Degson 2 Pin 3.5 mm Pitch PCB Spring Terminal Block.
- Electronic components are used in circuit boards for connecting wires.
- Two pins, and a 3.5 mm pitch.
- No need for screws or other fasteners.
- Wire Range: 26-16 AWG (0.2-1.0 mm²)
- Rated Voltage: 320V.
- Rated Current: 10A.
- Contact Resistance: ≤20mΩ.
| Item Type |
PCB Terminal Block |
|---|---|
| Rated Current (A) |
10 |
| Rated Voltage (V): |
320 |
| Allowed Wire Size (AWG): |
26 ~ 16 |
| Color: |
Grey |
| No. of Pins |
2 |
| Contact Resistance |
?20m |
| Pitch (mm) |
3 |
| Withstand voltage (AC) 1min |
1500 |
| Shipping Weight | 0.015 kg |
| Shipping Dimensions | 6 × 4 × 2 cm |
