Description

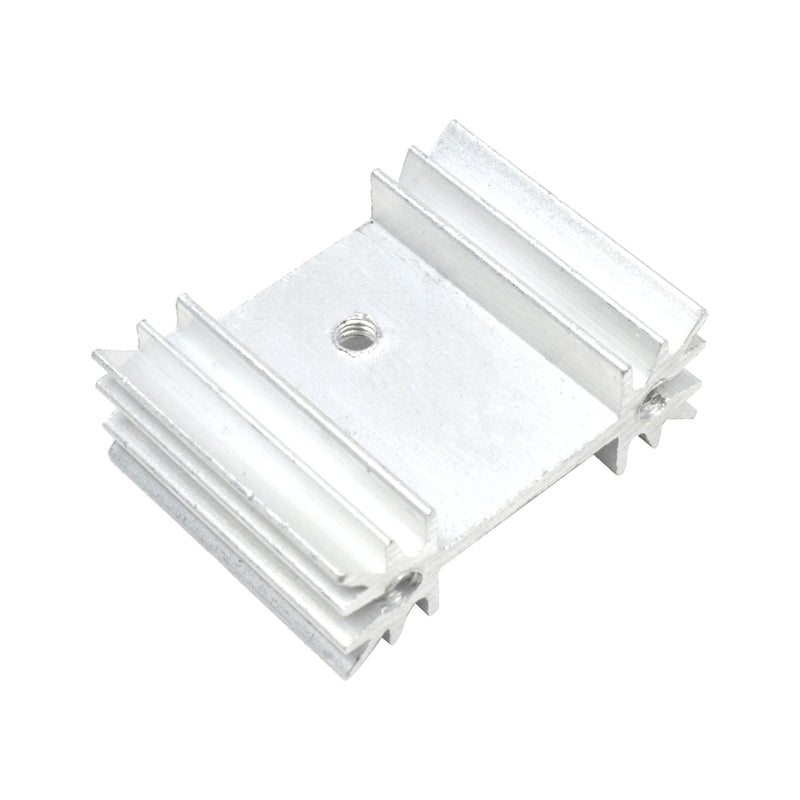

Its DE-6 H-Type Extruded Aluminium Heat Sink 32.6 x 11 x 25mm for Power Transistor. A component called a heat sink promotes heat transfer away from a hot gadget. By expanding the device's working surface area and the amount of low-temperature fluid that flows through it, it is able to do this and Its commonly used to Absorb the heat from the heat generated components.
Features
- Its used to Absorb the heat from the heat generated components
- Its made by Aluminium.
- Its known for its durability and tensile.
- Its used in Various engineering field and commercial industrial applications.
- Its rust proof heat sink.
Specifications
| Model | DE-6 |
| Type | H-Type Extruded Heat Sink |
| Material | 6063 Aluminium Grade |
| Length | 25mm |
| Width | 32.6mm |
| Height | 11mm |
| No of Grids | 16 |
| No of Screw holes | 1 |
| Diameter of hole | 3.4mm |
| Compatible for | Power Transistor |
| Country of Origin | China |
