Description

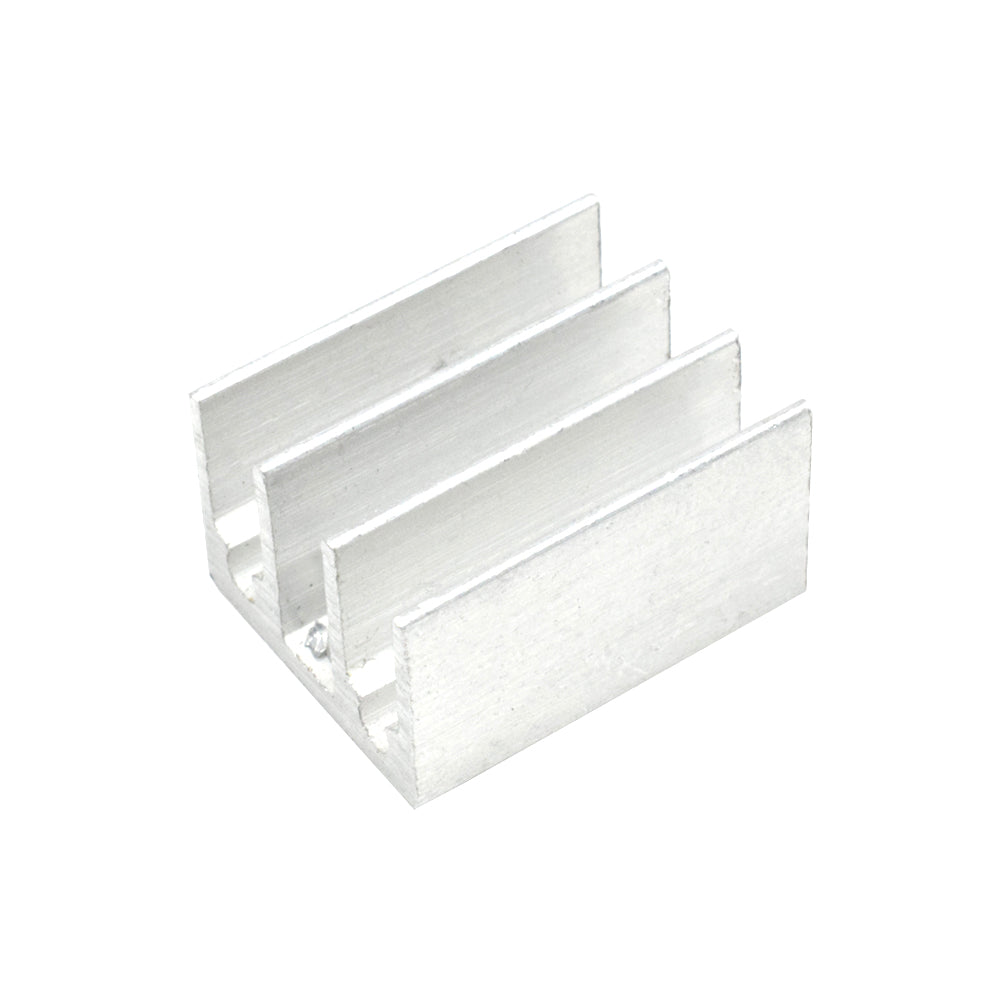

Its DE-2 Flatback Extruded Aluminium Heat Sink 15.7 x 11.8 x 20mm For TIP Transistors, IC and MOSFET. A component called a heat sink promotes heat transfer away from a hot gadget. By expanding the device's working surface area and the amount of low-temperature fluid that flows through it, it is able to do this. It has total 4 fins and the number of screw hole is 1 and Its Flat Back heat sink used for TIP Transistor, MOSFET and IC etc.
Features
- Its used to Absorb the heat from the heat generated components
- Its made by Aluminium.
- Its known for its durability and tensile.
- Its used in Various engineering field and commercial industrial applications.
- Its rust proof heat sink.
Specifications
| Model | DE-2 |
| Type | Flatback Extruded Heat Sink |
| Material | 6063 Aluminium Grade |
| Length | 19.8mm |
| Width | 15.6mm |
| Height | 11.6mm |
| No of fins | 4 |
| No of holes | 1 |
| Diameter of the Hole | 2.8mm |
| Country of Origin | China |
