Description

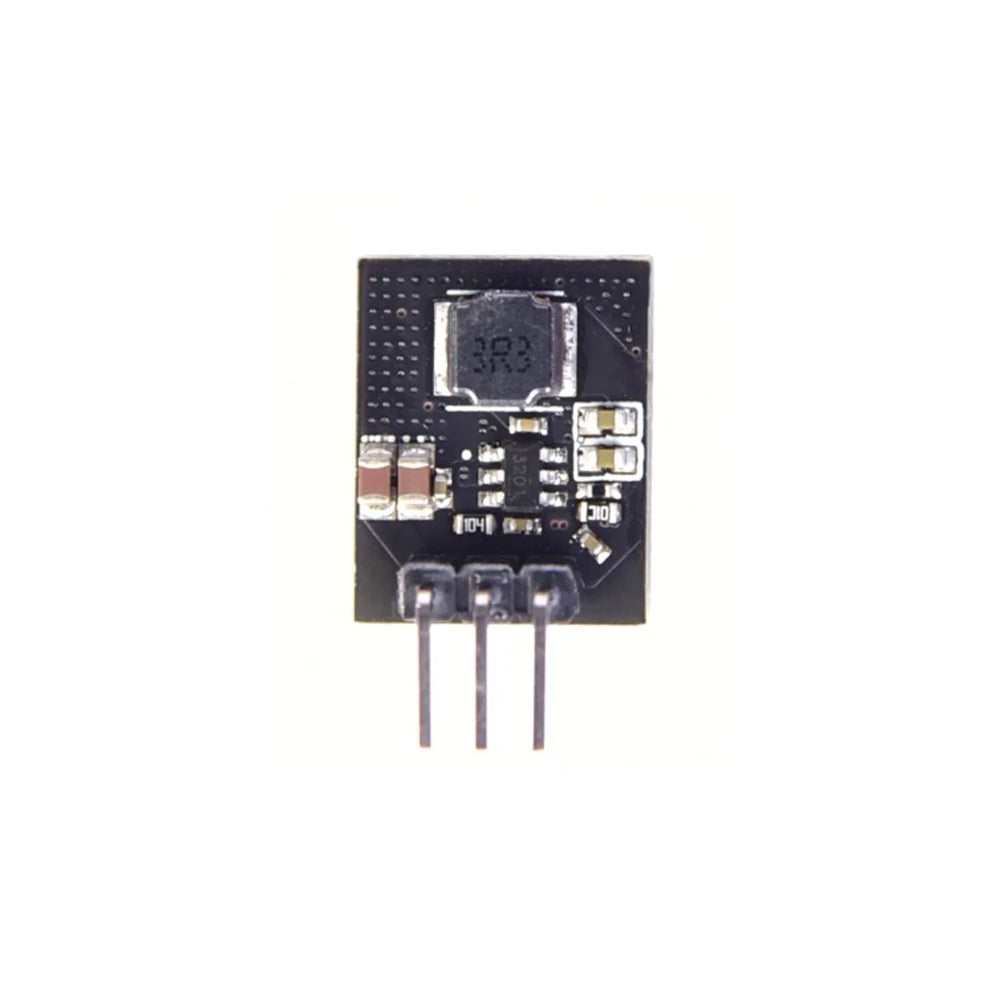

The DC-DC LDO is a TO-220 form factor DC-DC Module. This is pin-to-pin compatible and is intended to replace existing linear regulators such as the LM7805.
The main benefit of using this DC-DC is that it reduces the heat generated in the Linear Regulator (LDO) and reduces the design size because it eliminates the need for a separate heatsink on your board.

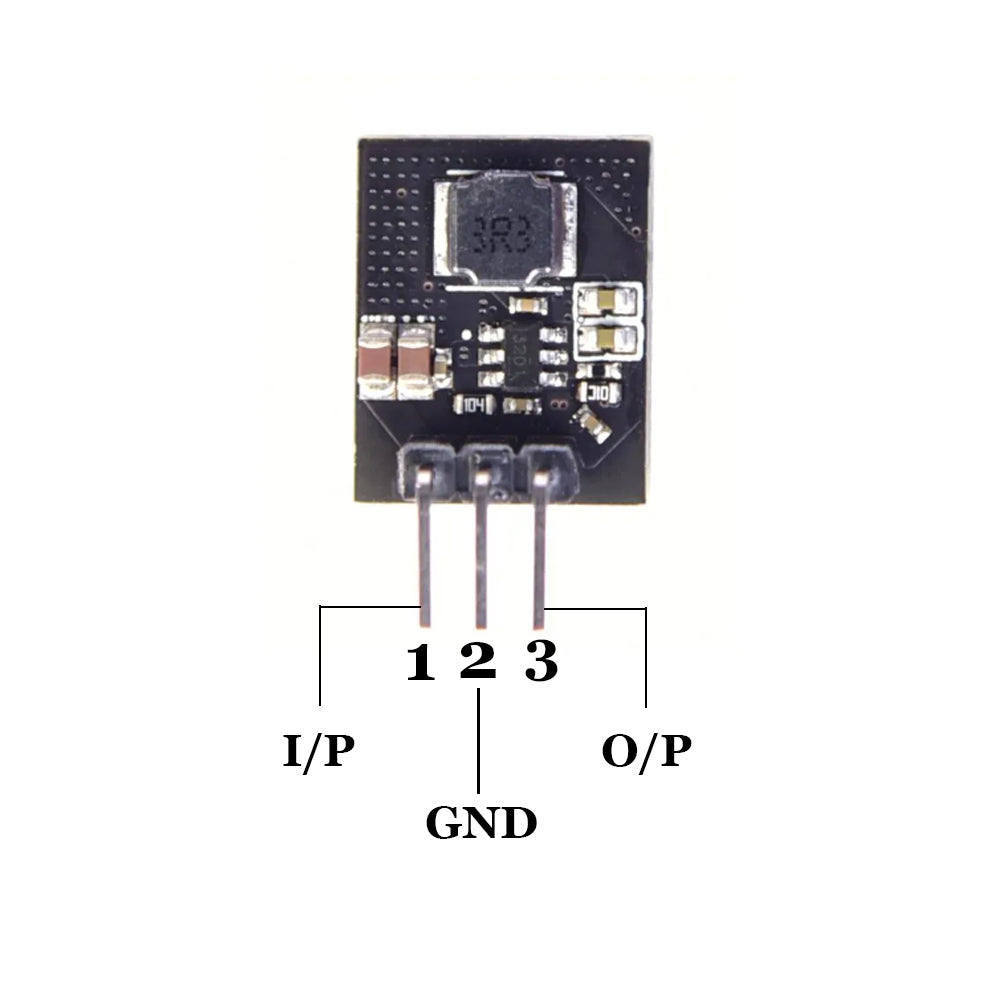

Pinout Details
- Input
- Ground
- Output
Features
- Uses Texas Instruments DC-DC Converter IC

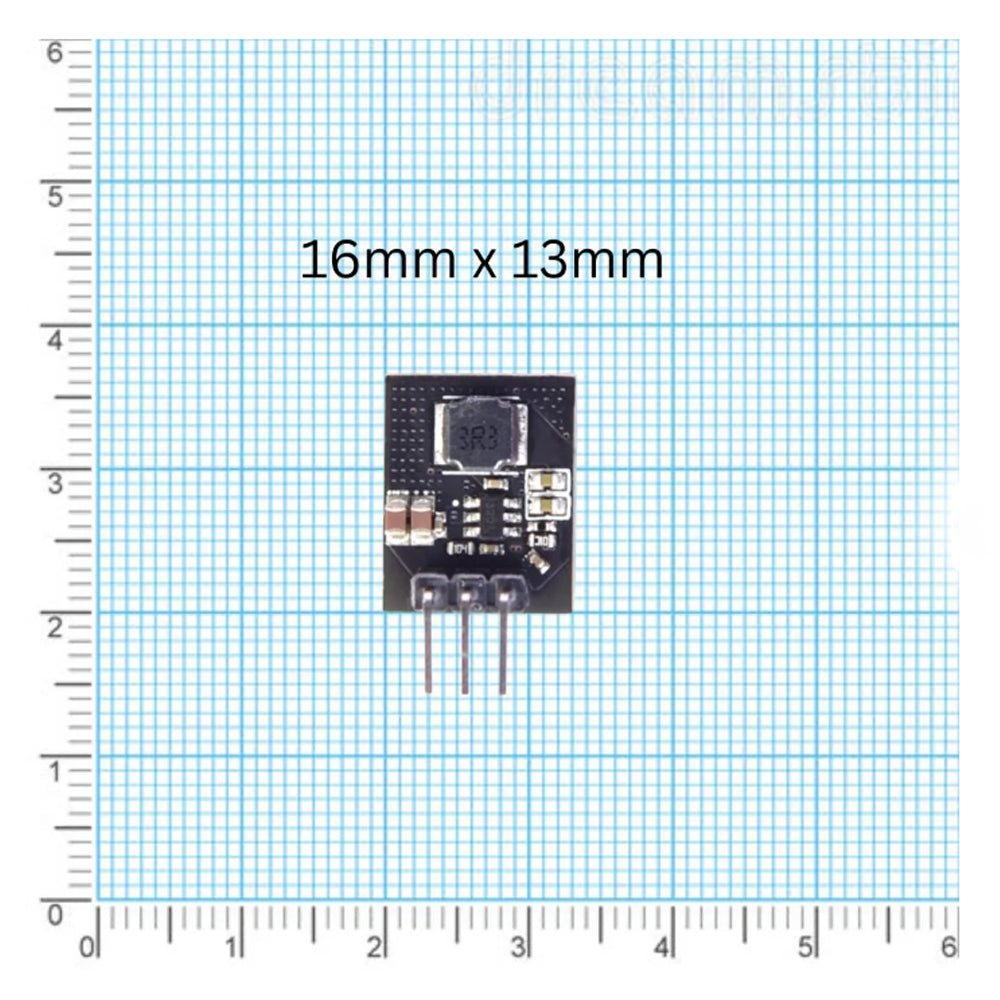

- Compact size: 16mm x 13mm
- Peak Efficiency: >91%
- DC-DC operates at ~600Khz
- Protections: O/P short circuit(hiccup)/Thermal
- 100% of modules are tested in India at full load before shipping
Specifications
| Part No | CE-DC-DC-LDOA-5.0 |
| Product |
DC-DC LDO Linear Regulator Module |
| Brand | CAPUF |
| Type | Linear Regulator |
| Mode | DC-DC |
| Input Voltage | 6.5V to 15V DC |
| Output Voltage | 5.0V |
| Output Current | 1.2A |
| Power | ~6 Watt |
| Make | Make in India |
| Country of Origin | China |
