Description

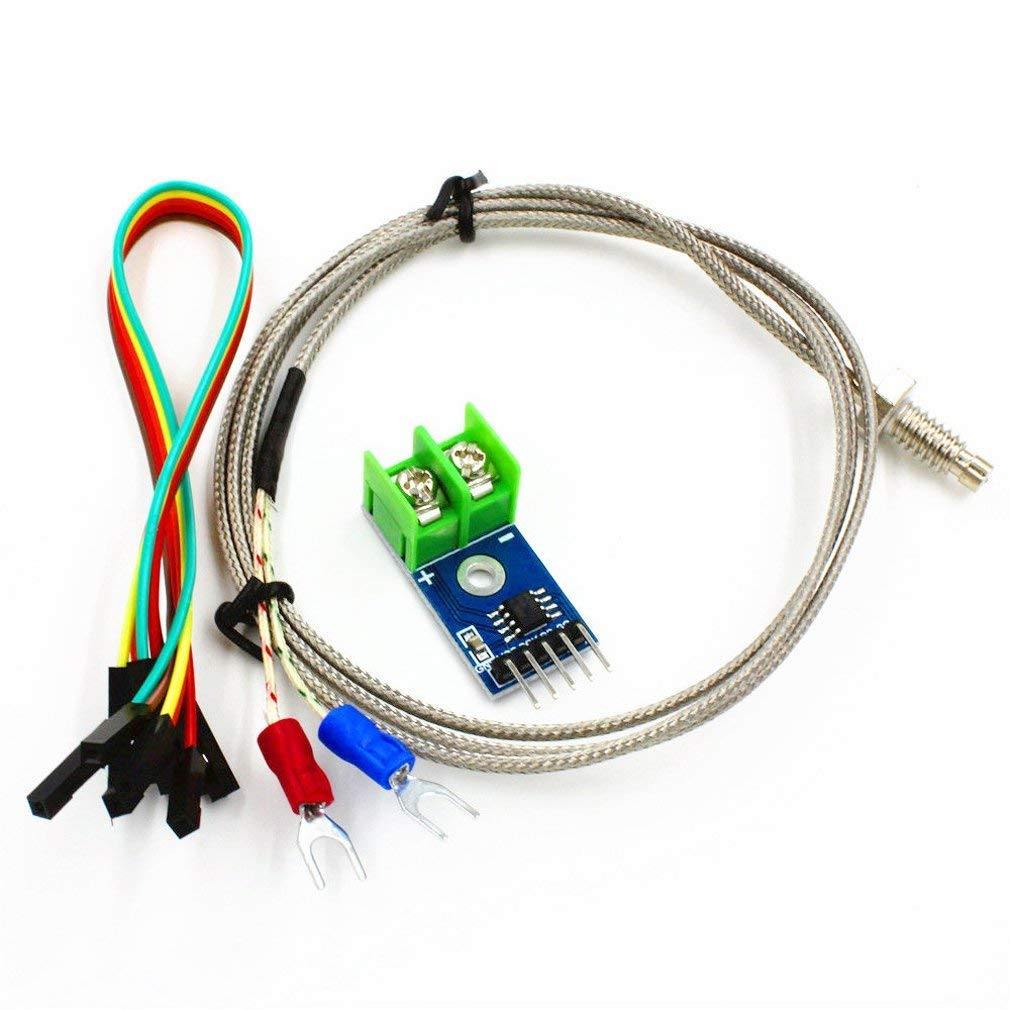

DC 3-5V MAX6675 Module + K Type Thermocouple Temperature Sensor Thermocouple Sensor Set M6 Screw and Jumper Wire F to F

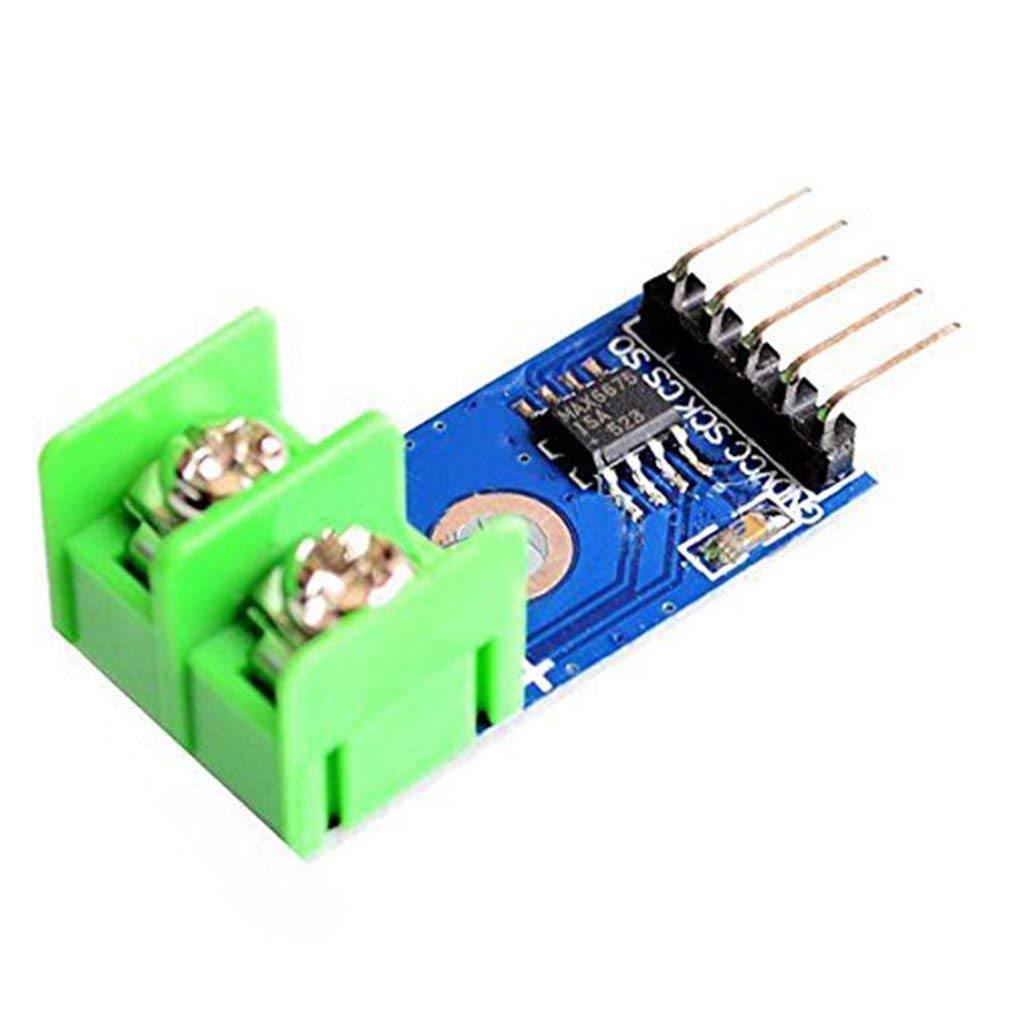

This MAX6675 Module + K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor.
It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

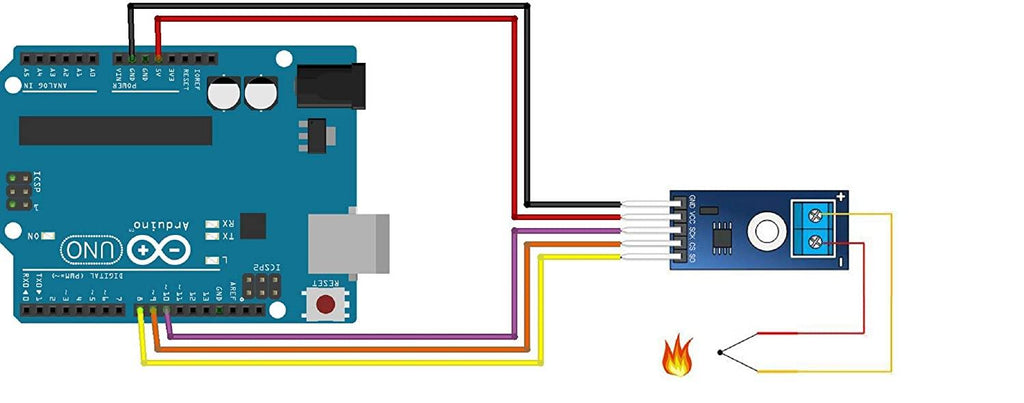

Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an Ardunio development board.
Package Includes:
- 1 x MAX6675 Module

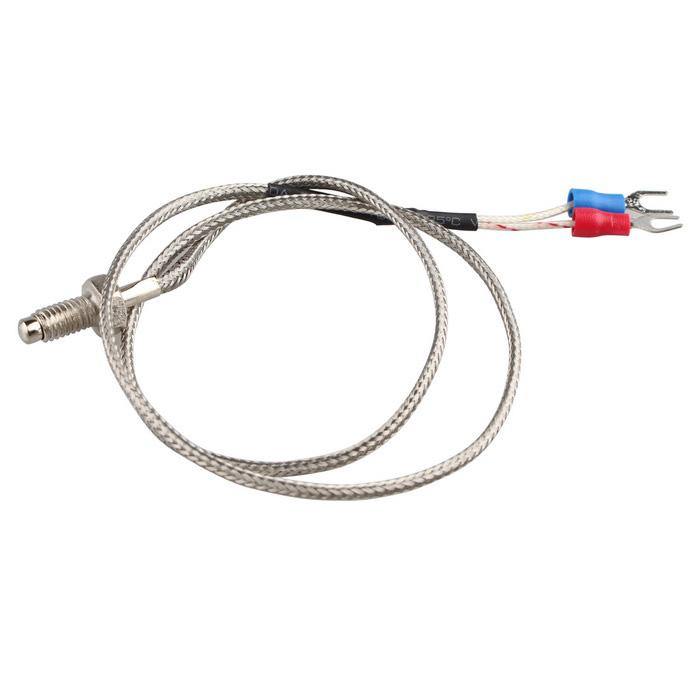

- 1 x K Type Thermocouple Sensor
- 1 x Set of Jumper Wires
Specifications:
| Interface | 3 Serial SPI Interface |
| Operating Voltage | 3 to 5.5V |
| Temperature Range | 0 to +1024 (°C) |
| Cold Junction Compensation Range | -20 to +80(°C) |
| Package Dimensions | 11 x 8 x 2 cms |
| Weight | 50 grams |
